  •   Relė Ajax Relay 38204.19.NC1 (7–24V)

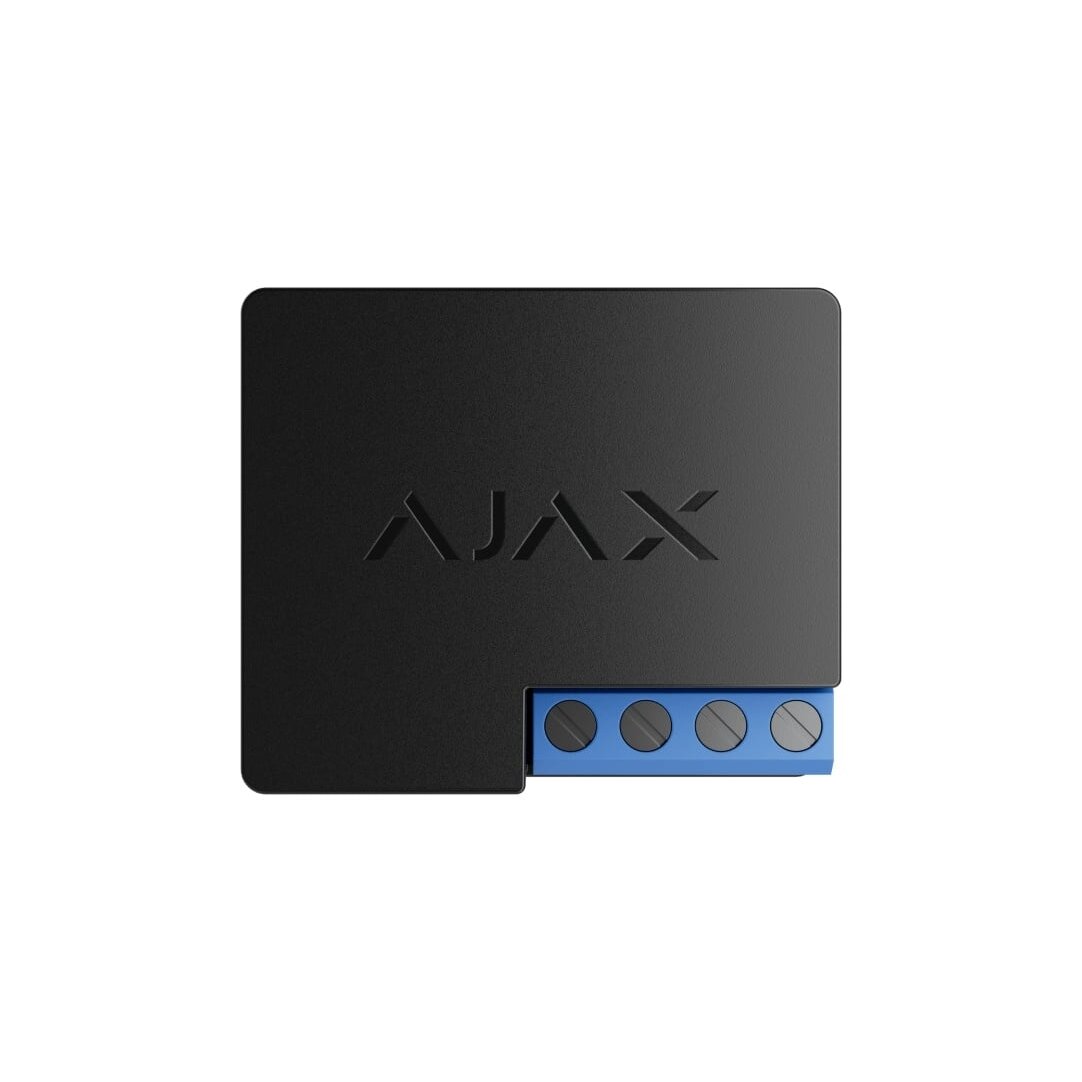

    Relė Ajax Relay 38204.19.NC1 (7–24V)

    Pasiteirauti apie prekę
    Kaina 61.98 €
    Šią prekę turime sandėlyje.
    CENTRINIS SANDĖLIS
    Likutis: 20 vnt.
    Gamintojas
    AJAX
    • Maitinimas
    • External power supply7–24 V⎓, The relay does not supply additional power to devices connected to it.
    • Energy consumptionup to 1 W, In standby mode.
    • Cross-sectional area of the cable0.75–1.5 mm² (22–14 AWG)
    • Maximum resistive loadup to 5 A at 24 V⎓, up to 13 A at 110–230 V~
    • Maximum inductive/capacitive loadup to 3 A at 24 V⎓, up to 8 A at 110–230 V~
    • Voltage protectionminimum — 6.5 V⎓, maximum — 36.5 V⎓, Once the supply voltage exceeds the specified levels, the relay turns off automatically.
    • Temperatūros apsaugaover 149 °F at the installation site, over 185 °F inside the relay
    • Bendravimas
    • Jeweller ryšio technologijaProprietary wireless communication technology to transmit commands, alarms, and events., Key features:, Two-way communication., Advanced anti-sabotage., Block encryption featuring a dynamic key., Instant notifications., Remote control and configuration in Ajax apps., Learn more
    • Dažnių juostos866.0–866.5 MHz 868.0–868.6 MHz 868.7–869.2 MHz 905.0–926.5 MHz 915.85–926.5 MHz 921.0–922.0 MHz, Depends on the sales region.
    • Maksimali efektyvi spinduliuojama galia (ERP)up to 25 mW
    • Radijo signalo moduliacijaGFSK
    • Radijo ryšio veikimo nuotolisup to 3,250 ft, Between the relay and a hub (or a range extender) in an open space., Calculate radio communication range at the facility
    • Šifruotas ryšysAll stored and transmitted data are protected by block encryption featuring a dynamic key.
    • Dažnių šuoliaiTo prevent radio interference and jamming., Learn more
    • Pagrindinės savybės
    • Valdymas per išmanųjį telefonąThe user can set up the relay configurations and receive notifications in an Ajax app.
    • Automatizavimo scenarijaiBy arming/disarming, By schedule, By alarm, By temperature, By humidity 1, By CO₂ concentration 1, By touching LightSwitch / pressing Button, Learn more, 1 Scenarios by humidity and CO 2 concentrations are available when LifeQuality Jeweller is added to the system.
    • Reguliuojama impulso trukmėfrom 0.5 to 255 s
    • Veikimo režimaipulse, bistable
    • Kontakto būsenanormally open, normally closed
    • Apsauga nuo sabotažo
    • Apsauga nuo klastojimodevice authentication
    • Ryšio praradimo aptikimasafter 36 s, Detection time depends on the Jeweller or Jeweller/Fibra settings., Learn more
    • Korpusas
    • Matmenys1.54″ × 1.3″ × 0.71″
    • Svoris0.88 oz
    • Darbinės temperatūros diapazonasfrom −4 °F to 147 °F
    • Drėgmėup to 75%
    • Apsaugos klasėIP20
