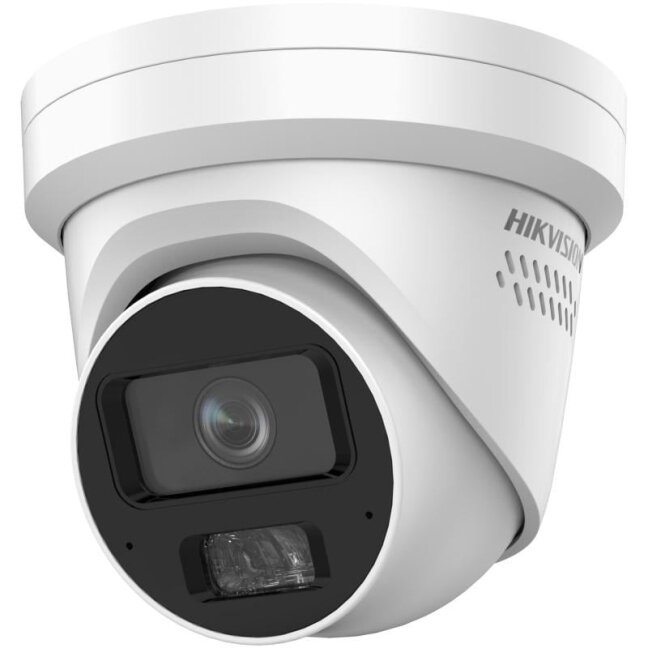

Hikvision Turret iDS-2CD5347G2-XS F2.8 (Balta, 4MP, Hybrid Light, IR+LED 40m)
Hikvision Turret iDS-2CD5347G2-XS F2.8 (Balta, 4MP, Hybrid Light, IR+LED 40m)
GamintojasHikvision-
- Patvirtinimai
- EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7
- AplinkosaugaCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
- KitaPVC FREE
- ApsaugaIP67: IEC 60529-2013
- SaugumasCB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,LOA: IEC/EN 60950-1
- Transport CertificationIATA Dangerous Goods Regulations, Dangerous Goods List, International Maritime Dangerous Goods Code, Railway Dangerous Goods List
- Garsas
- Garso bitų dažnis64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Garso atrankos dažnis8 kHz/16 kHz/32 kHz/48 kHz
- Garso tipasMono sound
- Pašalinių garsų šalinimasYes
- Camera
- Kampo keitimasPan: 0° to 355°,tilt: 0° to 65°,rotate: 0° to 360°
- Diena&NaktisIR cut filter,Blue glass module (less ghost phenomenon)
- Vaizdo jutiklis1/1.8" Progressive Scan CMOS
- Didžiausia raiška2688 × 1520
- Minimalus apšvietimasColor: 0.0003 Lux @ (F1.0, AGC ON),B/W: 0.0001 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR
- Užrakto greitis1 s to 1/100,000 s
- DORI
- DORI2.8 mm: D (Detect) : 61.5 m, O (Observe) : 24.4 m, R (Recognize): 12.73 m, I(Identify): 6.2 m4 mm: D (Detect) : 72.1 m, O (Observe) : 28.6 m, R (Recognize): 14.4 m, I(Identify): 7.2 mThe DORI values are calculated using pixel densities for different use cases as recommended by the EN 62676-4 standard.
- Išmaniosios funkcijos
- Veido atpažinimasDetects up to 30 faces simultaneously,Supports swing left and right from -70° to 70°, tilt up and down from -50° to 50°,Uploads face with background and closed-up face pictures
- Šilumos žemėlapisA graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area.,Two report types are available, space heat map and time heat map line chart.
- Meta duomenysIntrusion detection,line crossing detection,region entrance detection,region exiting detection
- Multi-target-type DetectionSupports simultaneous detection and capture of human body, face, and vehicle,Gets face features,Gets human body features,Gets vehicle features,Supports counting the number of line crossing targets by type, including human body, non-motor vehicle, motor vehicle
- On/Off Duty DetectionSupports up to 8 detection regions, and independent arming schedule and linkage method,Supports 2 detection modes: absence detection, on/off duty detection,Supports parameter settings: person on duty, absence duration
- Perimeter Protection Line crossing, intrusion, region entrance, region exiting,Support alarm triggering by specified target types (human and vehicle)
- Queue ManagementSupports up to 8 detection regions, and independent arming schedule and linkage method,Supports 2 detection modes: regional people queuing-up, waiting time detection,Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue,Supports raw data export for further analysis,Supports real-time data uploading and scheduled data uploading,Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold,Waiting time detection: supports 1 alarm trigger condition, including greater than threshold
- Regional People CountingSupports up to 8 detection regions, and independent arming schedule and linkage methodSupports 3 detection modes: people density detection, number of people exception detection, waiting time exception detectionSupports parameter settings: alarm times per exception, alarm interval, first alarm delaySupports searching real-time number of peoplePeople density detection: supports scheduled uploading, number of people change uploading, congestion level uploadingNumber of people exception detection: supports 6 alarm trigger conditions, including greater than threshold A, less than threshold A, equal to threshold A, not equal to threshold A, greater than threshold A and less than threshold B, less than threshold A or greater than threshold B (threshold A should be less than threshold B)Waiting time exception detection: supports 3 alarm trigger conditions, including greater than threshold A, less than threshold A, greater than threshold A and less than threshold B (threshold A should be less than threshold B)
- Funkcijos
- Basic Event Motion detection,video tampering alarm,video quality diagnosis,exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error),vibration detection
- SąsajaUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning
- Išmaniosios funkcijosscene change detection,audio exception detection,defocus detection
- Bendrosios savybės
- MatmenysØ138.63 mm × 123.42 mm (Ø5.46" × 4.86")
- Pagrindinės funkcijosHeartbeat,anti-banding,one-key reset,mirror,password protection,flash log
- Integrated Connector PanelNo
- Kalba33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- MedžiagaAluminum alloy body
- Pakuotės dydis170 mm × 170 mm × 150 mm (6.7" × 6.7" × 6.0")
- Galia12 VDC ± 20%, 0.76A, max. 9.1 W,PoE: IEEE 802.3af, Type 1, Class 3, 36 V to 57 V, 0.27 A to 0.2 A, max. 11.4 W
- Darbo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Sandėliavimo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- SvorisApprox. 820 g (1.81 lb.)
- Svoris su įpakavimuApprox. 1095 g (2.42 lb.)
- Apšvietimas
- IR bangos ilgis850 nm
- Išmanus papildomas apšvietimasYes
- Papildomo apšvietimo diapazonasUp to 40 m
- Papildomo apšviešimo tipasHybrid (IR and White Light)
- Nuotrauka
- Dienos/nakties perjungiklisDay,Night,Auto,Schedule
- Nuotraukų pagražinimasBLC,HLC,3D DNR,Defog
- Nuotraukos parametrų keitiklisYes
- Vaizdo nustatymaiRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Vaizdo stabilizavimasEIS
- Nuotraukos perdangaLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
- Privatumo kaukė8 programmable polygon privacy masks
- Wide Dynamic Range (WDR)140 dB
- Sąsaja
- Alarm 1 input, 1 output (max. 12 VDC, 30 mA)
- Garsas1 input (line in), input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
- Integruotas mikrofonas1 built-in microphone
- Integruotas garsiakalbis1 built-in speaker
- Interneto sąsaja1 RJ45 10 M/100 M self-adaptive Ethernet port
- Vidinė atmintisBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
- Išėjimo galia12 VDC, max. 100 mA
- Perkrovimo mygtukasYes
- Objektyvas
- DiafragmaF1.0
- Focal Length & FOV2.8 mm, horizontal FOV 111°, vertical FOV 58°, diagonal FOV 138°4 mm, horizontal FOV 95°, vertical FOV 48°, diagonal FOV 117°
- Rainelės tipasFixed
- Objektyvo tipasFixed focal lens, 2.8 and 4 mm optional
- Tinklas
- APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
- KlientasiVMS-4200,Hik-Connect
- Vidinė atmintisNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, SRTP, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, ARP, WebSocket, WebSockets
- SaugumasPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3,TPM 2.0(FIPS 140-2 level 2),AES128/256
- Tiesioginis vaizdo žiūrėjimasUp to 20 channels
- Naudotojas/prievadasUp to 32 users3 user levels: administrator, operator, and user
- NaršyklėPlug-in required live view: IE 10, IE 11,Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Vaizdas
- Bitų dažnio valdymasCBR,VBR
- Ketvirtas srautas50 Hz: 1 fps (704 × 576, 640 × 480)60 Hz: 1 fps (704 × 480, 640 × 480)
- H.264 tipasBaseline Profile,Main Profile,High Profile
- H.265 tipasMain Profile
- Pagrindinis srautasMonitoring mode:50 Hz: up to 50 fps (2560 × 1440, 1920 × 1080, 1280 × 720)60 Hz: up to 60 fps (2560 × 1440, 1920 × 1080, 1280 × 720)*High frame rate is supported under monitoring mode only.smart mode:50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
- Region of Interest (ROI)4 fixed regions for each stream
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Antrinis srautas50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 480)60 Hz: 30 fps (1280 × 720, 704 × 480, 640 × 480)
- Tikslinis apkarpymasYes
- Trečias srautas50 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
- Vaizdo bitų dažnis32 Kbps to 8 Mbps
- Video Compression Main stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264,Fourth stream: H.265/H.264/MJPEG
