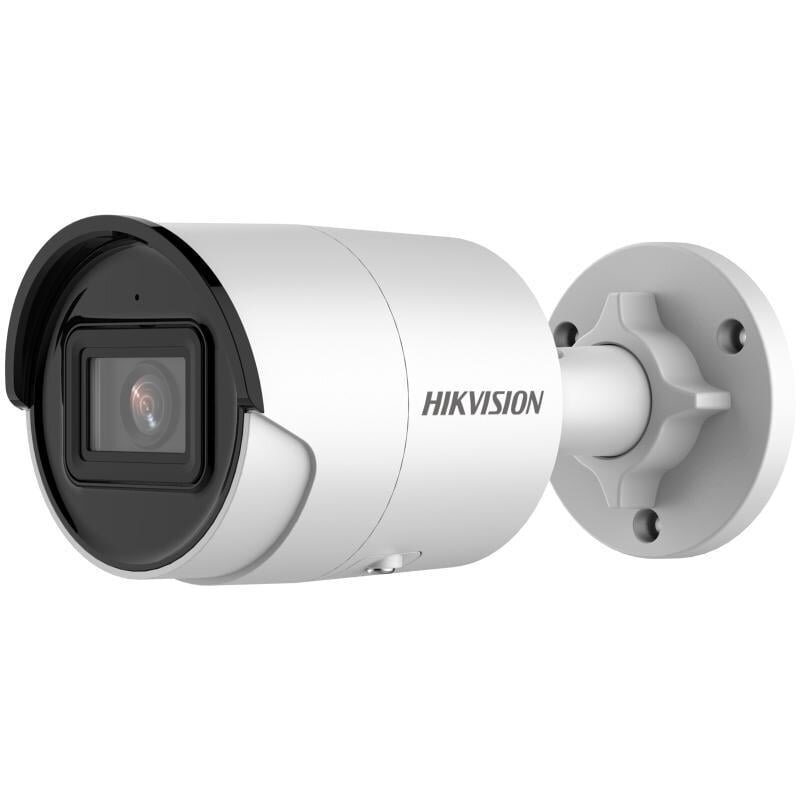

Hikvision bullet DS-2CD2066G2-IU(C) F4 (balta, 6 MP, 40 m. IR, AcuSense)

• Kamera
• Sensorius 1/2.4" Progressive Scan CMOS
• Maks. rezoliucija 3200 × 1800
• Min. apšvietimas Color: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
• Užrakto greitis 1/3 s to 1/100,000 s
• Day & Night IR cut filter
• Kampo keitimas Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

• Lęšis
• Lęšio tipas Fixed focal lens, 2.8, 4, and 6 mm optional
• Focal Length & FOV 2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°6 mm, horizontal FOV 51°, vertical FOV 26°, diagonal FOV 59°
• Lęšio montavimas M12
• Rainelės tipas Fixed
• Diafragama F1.6

• DORI
• DORI 2.8 mm: D: 76 m, O: 30 m, R: 15 m, I: 7 m4 mm: D: 115 m, O: 45 m, R: 23 m, I: 11 m6 mm: D: 164 m, O: 65 m, R: 32 m, I: 16 m

• Apšvietimas
• Papildomo apšviešimo tipas IR
• Papildomo apšvietimo diapazonas Up to 40 m
• Išmanus papildomas apšvietimas Yes
• IR bangos ilgis 850 nm

• Vaizdas
• Pagrindinis srautas 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Antrinis srautas 50 Hz: 25 fps (1280 x 720, 640 × 480, 640 × 360)60 Hz: 30 fps (1280 x 720, 640 × 480, 640 × 360)
• Trečias srautas 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360),*Third stream is supported under certain settings.
• Vaizdo suspaudimas Main stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264 (*Third stream is supported under certain settings.)
• Vaizdo bitų greitis 32 Kbps to 16 Mbps
• H.264 tipas Baseline Profile,Main Profile,High Profile
• H.265 tipas Main Profile
• Bitų greičio kontrolė CBR,VBR
• Scalable Video Coding (SVC) H.264 and H.265 encoding
• Region of Interest (ROI) 1 fixed region(s) for main stream and sub-stream
• Tikslinis apkarpymas Yes

• Garsas
• Garso tipas -U: Mono sound
• Garso suspaudimas -U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Garso bitų greitis -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Garso atrankos dažnis -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Pašalinių garsų šalinimas -U: Yes

• Internetas
• Protokolai TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets, SRTP, SFTP
• Tiesioginis vaizdo žiūrėjimas Up to 6 channels
• API Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK, ISUP
• User/Host Up to 32 users3 user levels: administrator, operator, and user
• Saugumas Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
• Vidinė atmintis NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Klientas iVMS-4200,Hik-Connect,Hik-Central
• Naršyklė Plug-in required live view: IE 10, IE 11,Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

• Nuotrauka
• Nuotraukos parametrų keitiklis Yes
• Nuotraukos nustatymai Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Diena/Naktis režimas Day,Night,Auto,Schedule
• Wide Dynamic Range (WDR) 120 dB
• SNR ≥ 52 dB
• Nuotraukų pagražinimas BLC,HLC,3D DNR
• Privatumo kaukė 4 programmable polygon privacy masks

• Sąsaja
• Interneto sąsaja 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Vidinė atmintis Built-in memory card slot, support microSD card, up to 512 GB
• Įmontuotas mikrofonas -U: Yes
• Perkrovimo mygtukas Yes

• Funkcijos
• Pagrindinės funckcijos Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• Išmaniosios funkcijos Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)),Scene change detection
• Sąsaja Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture

• Išmaniosios funkcijos
• Veido atpažinimas Yes

• Pagrindinis
• Sistemos parametrai 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.2 W
• Dydis Ø70 mm × 161.7 mm (Ø2.8" × 6.4")
• Pakuotės dydis 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
• Svoris Approx. 490 g (1.1 lb.)
• Svoris su įpakavimu Approx. 759 g (1.7 lb.)
• Sandėliavimo sąlygos -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Darbo sąlygos -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Kalba 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• Pagrindinės funkcijos Heartbeat,mirror,flash log,password reset via email,pixel counter,password protection,one-key reset,anti-flicker

• Patvirtinimai
• EMC CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,RCM: AS/NZS CISPR 32: 2015,KC: KN32: 2015, KN35: 2015
• Saugumas UL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017
• Aplinkosauga CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
• Apsauga IP67: IEC 60529-2013
