  •   Wireless wired zone expander Paradox ZX10M (10 inputs, 868 MHz, for M25 control panel)

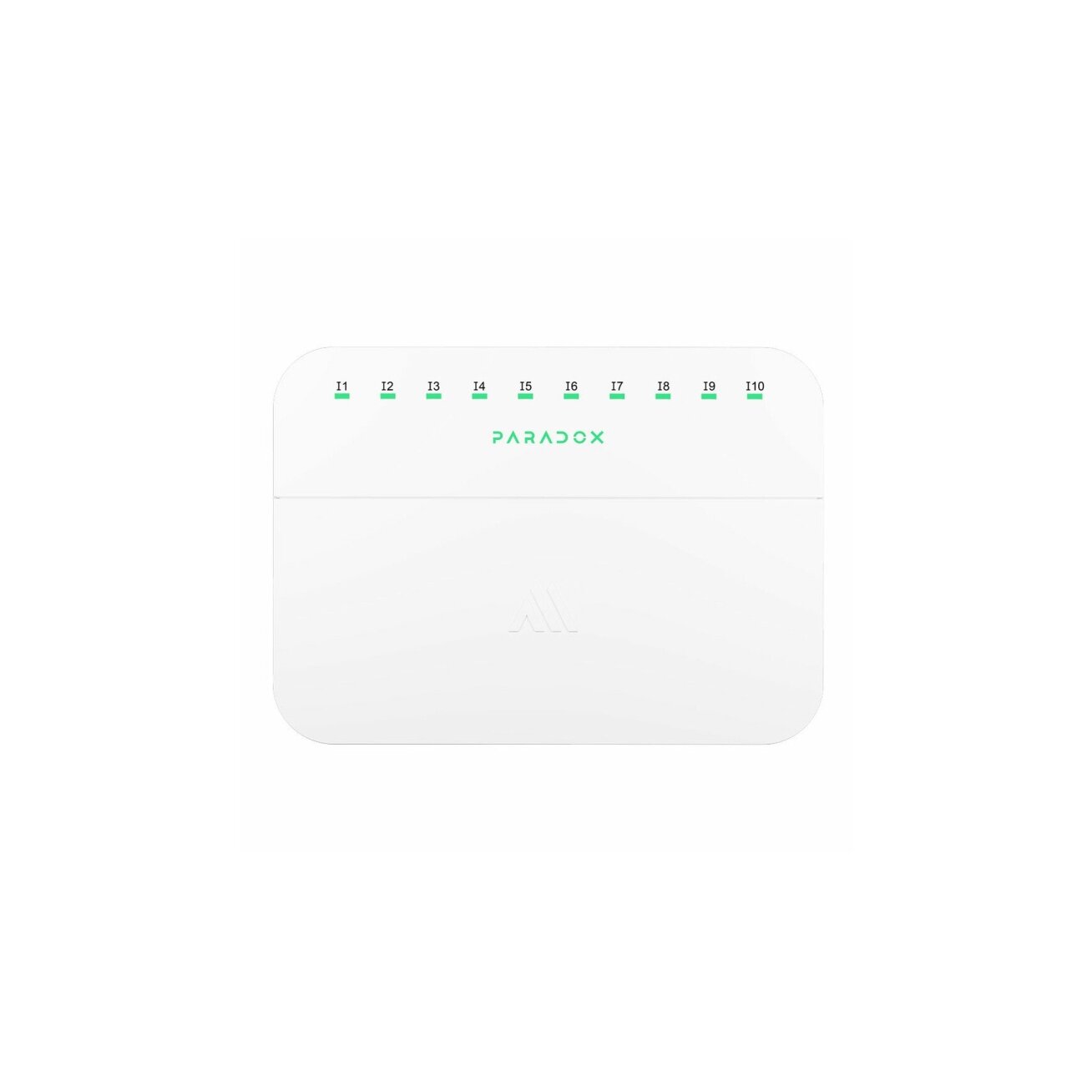

    Wireless wired zone expander Paradox ZX10M (10 inputs, 868 MHz, for M25 control panel)

    Inquire about this item
    Price 186.43 €
    Want another price? Suggest yours!
    In stock.
    In stock: 5 pcs
    Manufacturer
    Paradox
    • General
    • ModelZX10M
    • TypeWireless Wired Zone Expander
    • CompatibilityParadox M25 centrale (868 MHz)
    • Inputs10 wired zone inputs (zone 1 can be configured as fire zone)
    • Wireless TypeGFSK two-way with frequency and encryption hopping
    • RF Frequency868 MHz (865.05–867.95 MHz) or 914 MHz (902.25–927.55 MHz), region dependent
    • RF Power868 MHz: +14 dBm radiated; 914 MHz: +22 dBm (where permitted)
    • Input ConnectionSupports no EOL resistor, single EOL (1KΩ), or dual EOL (2 × 1KΩ); zone 1 supports 2-wire smoke
    • Auxiliary Power Output12.5–13.8 VDC (12.5 V on battery), max 500 mA; backup 220 mA for 10 h
    • Battery2 × 3.7V Li-ion, 5000 mAh (rechargeable)
    • Battery BackupUp to 10 hours @ 220 mA auxiliary load
    • Transmission Time<20 ms
    • Supervision Time20 min, 10 min (default), or 3 min
    • IndicatorsApp shows zone open/close, tamper, power supply, battery, temperature, TX/RX; LEDs for zone status
    • Firmware UpgradeRemotely over the air (via BlueEye app)
    • Installation EnvironmentIndoor
    • Operating Temperature–20 °C to +50 °C (–4 °F to +122 °F); charging 0 °C to +40 °C
    • Auto-LearnYes
    • ColorWhite
    • Dimensions18W × 13H × 4.5D cm (7.09W × 5.12H × 1.79D in.)
    • Weight0.41 kg
    • CertificationsCE, EN 50131-3, EN 50131-5-3, FCC 15.247
