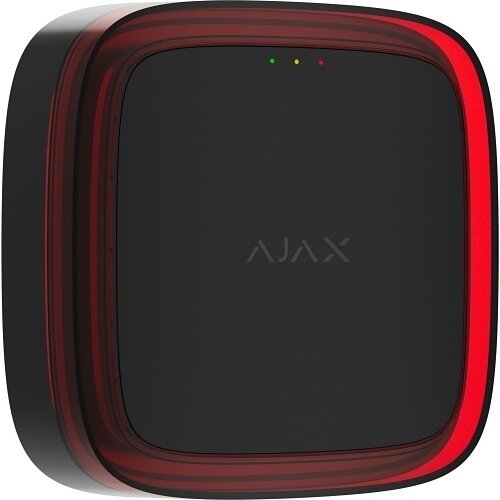

Wireless strobe Ajax EN54 FireProtect (VAD) 118606.277.BL1 (black)
-
- General
- Product nameAjax EN54 FireProtect (VAD) Jeweller
- TypeWireless visual fire alarm device (VAD – Visual Alarm Device)
- Compliance standardsEN 54-23, EN 54-25; Directive 2014/53/EU (RED)
- Sound alertNot included (visual-only model)
- Visual alertLED strobe with optical indication
- Strobe frequency90 ms ON / 1910 ms OFF (0.5 Hz cycle)
- Coverage (ceiling mount)Diameter: 8 m, Installation height: 3.0 m
- Coverage (wall mount)Volume: 2.4 m × 8.2 m × 8.2 m, Installation height: 2.4 m
- SynchronizationAlarm synchronization supported across all visual signal devices
- Mounting typeSmartBracket for ceiling or wall mount, up to 90° rotation
- Mounting featuresOptional tamper locking, tool-free battery replacement
- Wireless protocolJeweller (two-way encrypted radio communication)
- Communication rangeUp to 1,700 m in open space
- Frequency bands866.0–866.5 MHz, 868.0–868.6 MHz, 868.7–869.2 MHz, 905.0–926.5 MHz, 915.85–926.5 MHz, 921.0–922.0 MHz (region-dependent)
- Max ERPUp to 20 mW
- Activation timeDevice triggers within 3 seconds of alarm signal
- Power supply4 × CR123A lithium batteries (pre-installed)
- Battery lifeUp to 5 years
- Battery replacementTool-free, enclosure remains sealed
- Operating temperature–10 °C to +50 °C
- Operating humidityUp to 80% non-condensing
- Protection classIP54
- Dimensions145 × 145 × 51 mm
- Weight509 g
- Color optionsWhite, Black, Red
- Device setupQR code scan via Ajax app; supports remote configuration and monitoring
- Package contentsEN54 FireProtect (VAD) Jeweller, 4 × CR123A batteries, SmartBracket mounting plate, installation kit, quick start guide
