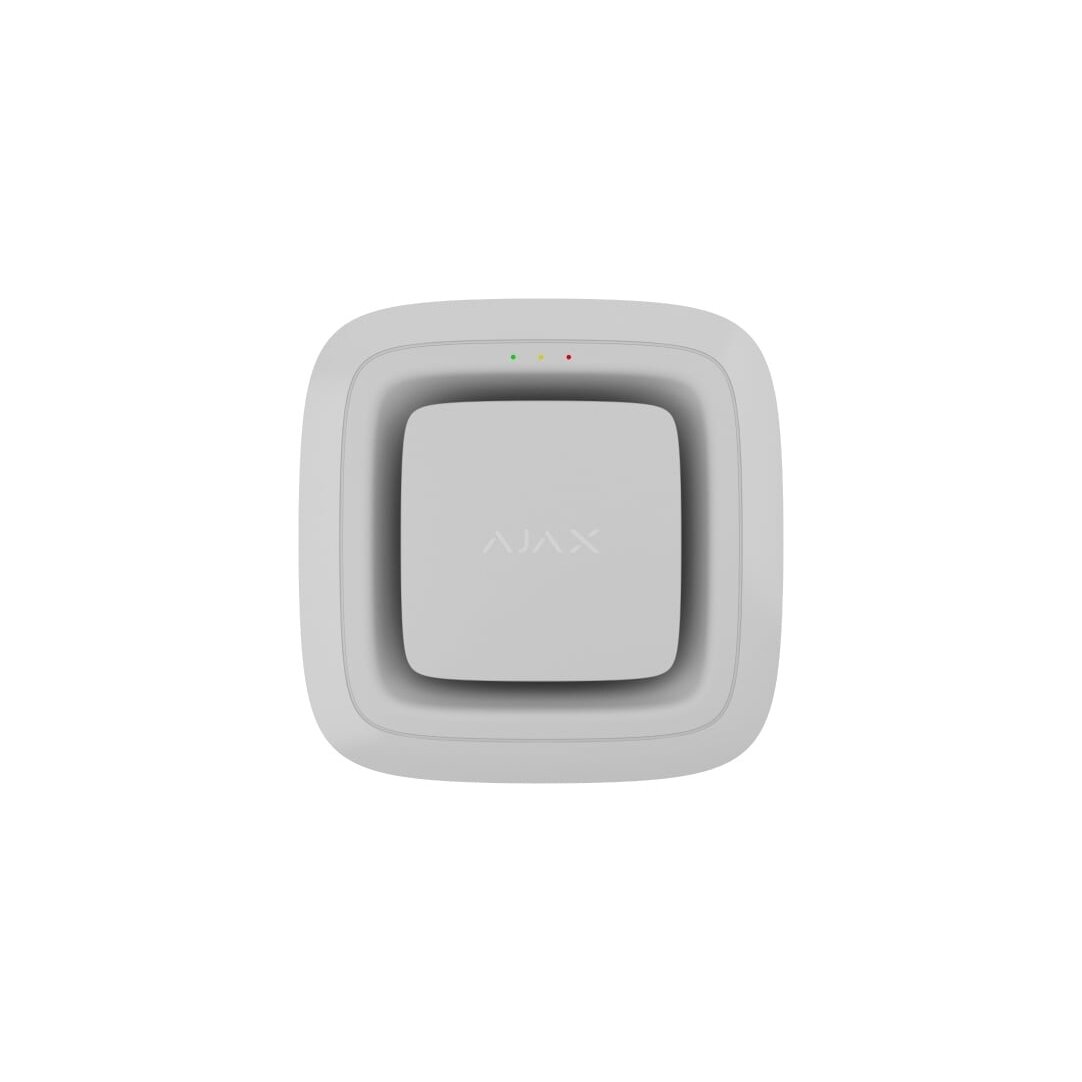

  •   Wireless siren Ajax EN54 FireProtect 118602.278.WH1 (white)

    Wireless siren Ajax EN54 FireProtect 118602.278.WH1 (white)

    Inquire about this item
    Price 208.38 €
    Want another price? Suggest yours!
    In stock.
    In stock: 5 pcs
    • General
    • Product nameAjax EN54 FireProtect (Sounder) Jeweller
    • TypeWireless acoustic fire alarm sounder
    • Compliance standardsEN 54-3, EN 54-25; Directive 2014/53/EU (RED)
    • Sound levelUp to 100 dB at 1 meter distance
    • Sound patterns32 selectable tones
    • Visual signalsNot included (only acoustic model)
    • Installation height3.0 m (ceiling), 2.4 m (wall)
    • Mounting typesCeiling mount, wall mount using SmartBracket plate (included)
    • Mounting featuresUp to 90° rotation on mount, optional locking to prevent removal
    • Wireless protocolJeweller (two-way radio communication)
    • Communication rangeUp to 1,700 m in open space
    • Communication frequencyDepends on region: 866.0–866.5 MHz, 868.0–868.6 MHz, 868.7–869.2 MHz, 905.0–926.5 MHz, 915.85–926.5 MHz, 921.0–922.0 MHz
    • Max ERPUp to 20 mW
    • Response timeDevice activates within 3 seconds of alarm
    • Power supply4 × CR123A lithium batteries (pre-installed)
    • Battery lifeUp to 5 years
    • Battery replacementTool-free
    • Operating temperature range–10 °C to +50 °C
    • Operating humidityUp to 80% (non-condensing)
    • Enclosure protectionIP54
    • Dimensions145 × 145 × 51 mm
    • Weight527 g
    • Colors availableWhite, Black, Red
    • Installation supportAjax apps (QR code setup, device location tagging, configuration)
    • SynchronizationWorks with other sounders in system for unified alarm tone and timing
    • Package contentsSounder, 4 × CR123A batteries (pre-installed), SmartBracket mounting panel, installation kit, quick start guide
