  •   Wireless PGM expander Paradox PGM8M (8 PGM, 868 MHz, for M25 control panel)

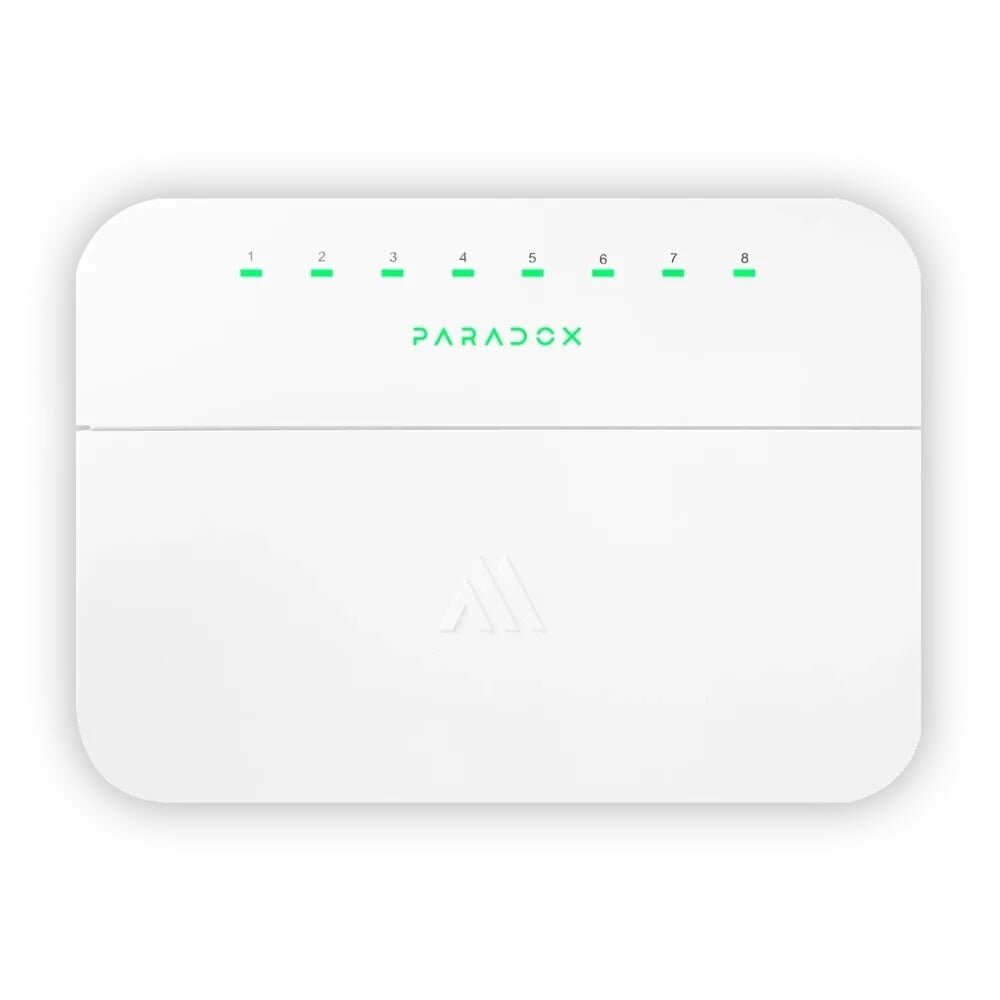

    Wireless PGM expander Paradox PGM8M (8 PGM, 868 MHz, for M25 control panel)

    Inquire about this item
    Price 218.43 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Paradox
    • General
    • ModelPGM8M
    • TypeWireless 8-Output Expander
    • CompatibilityParadox M25 centrale (868 MHz)
    • Outputs8 programmable relay outputs, each up to 24V/1A max (switched)
    • Wireless TypeGFSK two-way with frequency and encryption hopping
    • RF Frequency868 MHz (865.05–867.95 MHz) or 914 MHz (902.25–927.55 MHz), region dependent
    • RF Power868 MHz: +14 dBm radiated; 914 MHz: +22 dBm (where permitted)
    • ControlManual control of each output, status visible in app
    • Status IndicatorsApp shows output ON/OFF, tamper, power supply, battery, temperature, TX/RX
    • Transmission Time<20 ms
    • Supervision Time20 min, 10 min (default), or 3 min
    • Power Supply12 VDC input, 1 A
    • Battery1 × 3.7V Li-ion, 5000 mAh (optional, up to 10 days backup)
    • Firmware UpgradeRemotely over the air (via BlueEye app)
    • Installation EnvironmentIndoor
    • Operating Temperature–20 °C to +50 °C (–4 °F to 122 °F); charging 0 °C to +40 °C
    • Auto-LearnYes
    • ColorWhite
    • Dimensions18W × 13H × 4.5D cm (7.09W × 5.12H × 1.79D in.)
    • Weight0.36 kg (with battery)
    • CertificationsCE, FCC 15.247
