  •   Wireless motion detector with camera Ajax MotionCam Outdoor 38192.84.WH1 (white, PIR)

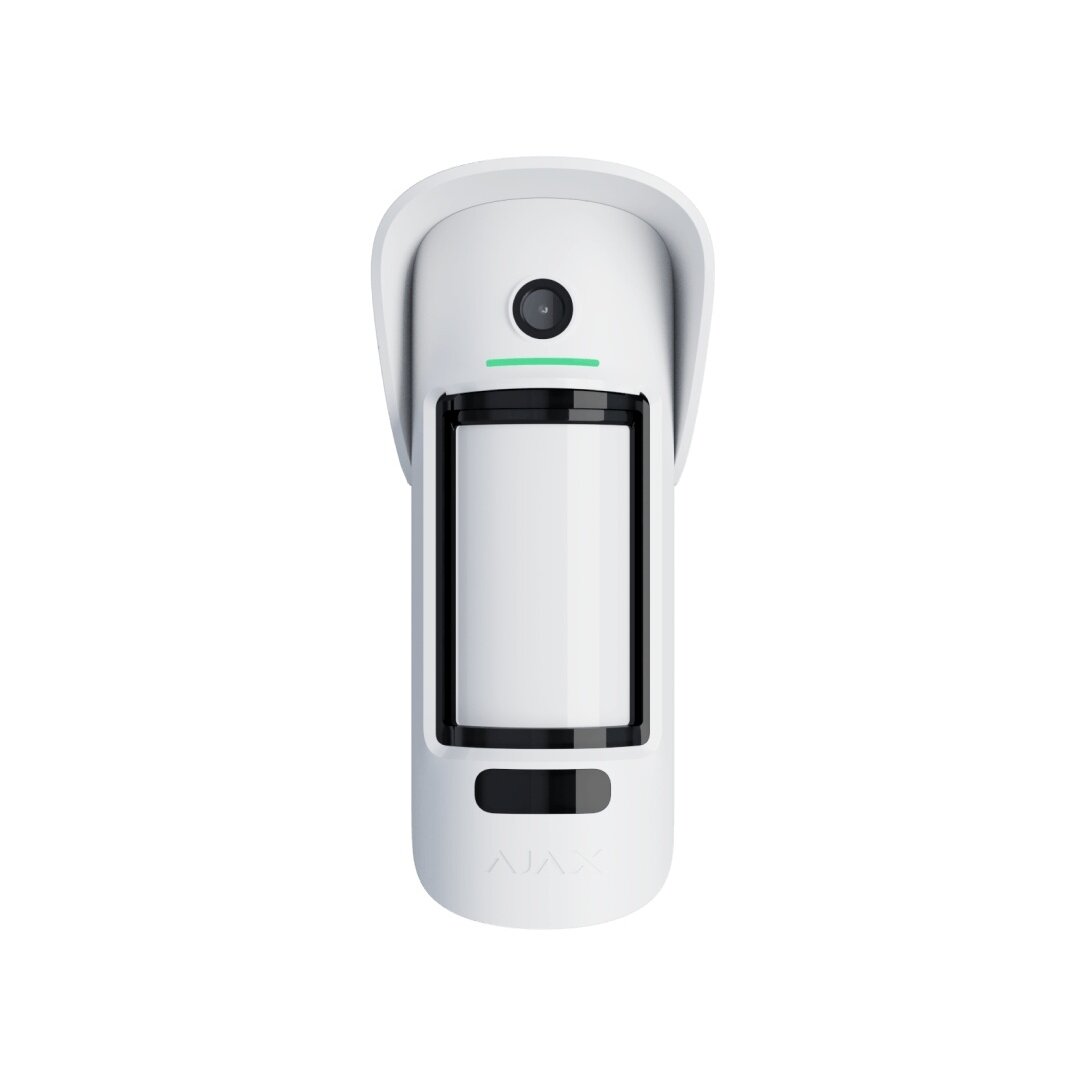

    Wireless motion detector with camera Ajax MotionCam Outdoor 38192.84.WH1 (white, PIR)

    Inquire about this item
    Price 390.13 €
    Want another price? Suggest yours!
    In stock.
    In stock: 20 pcs
    • Communication
    • Jeweller communication technologyProprietary wireless communication technology to transmit commands, alarms, and events., Key features:, Two-way communication., Advanced anti-sabotage., Block encryption featuring a dynamic key., Instant notifications., Remote control and configuration in Ajax apps., Learn more
    • Frequency bands866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz * 915.85 – 926.5 MHz 921.0 – 922.0 MHz, Depends on the sales region., * Certified according to UL/ULC standards.
    • Maximum effective radiated power (ERP)up to 20 mW, Automatic power control to reduce power consumption and radio interference.
    • Radio signal modulationGFSK
    • Radio signal rangeup to 5,550 ft, Between the device and a hub (or a range extender) in an open space., Calculate radio signal range at the facility
    • Encrypted communicationAll stored and transmitted data are protected by block encryption featuring a dynamic key.
    • Frequency hoppingTo prevent radio interference and jamming., Learn more
    • Wings communication technologyProprietary wireless communication technology to transmit photo verifications. It is not certified according to UL/ULC standards., Key features:, Two-way communication., Advanced anti-sabotage., Block encryption featuring a dynamic key., Data packages reload in case of transmission errors., Photo delivery check., Learn more
    • Frequency bands866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz * 915.85 – 926.5 MHz 921.0 – 922.0 MHz, Depends on the sales region., * Certified according to UL/ULC standards.
    • Radio communication rangeup to 5,550 ft, Between the device and a hub (or a range extender) in an open space., Calculate radio communication range at the facility
    • Encrypted communicationAll stored and transmitted data are protected by block encryption featuring a dynamic key.
    • Frequency hoppingTo prevent radio interference and jamming., Learn more
    • Detection
    • Sensitive elements2 × PIR sensor
    • Photo by AlarmA built-in camera is activated if the detector is armed and motion is detected., Learn more
    • Motion detection distanceup to 10 ft–49 ft, When installed at a height of 2.6 ft–4.3 ft. Adjusted with a scrollbar on the device enclosure., Learn more
    • Motion detection angleshorizontal — 90°
    • Camera angleshorizontal — 105°, vertical — 50°
    • TV distortionBarrel — 17%, EBU standard.
    • Motion detection speedfrom 1.0 to 6.6 ft/s, The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility.
    • Sensitivity3 levels, Adjusted by PRO or user with admin rights in the Ajax app.
    • Pet immunityweight: not relevant height: up to 2.6 ft, Learn more
    • False alarm preventionLISA, SmartDetect, Software algorithms.
    • Temperature compensationEffective motion detection at temperatures from −13°F to 140°F.
    • Photo verification
    • Photo by AlarmA built-in camera is activated if the detector is armed and motion is detected. Camera and photo features are not evaluated by UL., Learn more
    • Adjustable photo resolution640 × 352 px 320 × 176 px (by default), Adjusted by PRO or user with admin rights in the Ajax app.
    • IR backlightFor night photography and low light conditions.
    • Series of picturesfrom 1 to 5 images with a resolution 320 × 176 px, Adjusted by PRO or user with admin rights in the Ajax app.
    • Photo delivery timeup to 9 s — 320 × 176 px resolution, up to 20 s — 640 × 352 px resolution, Photo delivery time depends on the image resolution selected in the device settings., Learn more
    • Sabotage protection
    • Tamper alarmNotifications on attempts to detach the detector from the surface or remove it from the mounting panel., Learn more
    • Protection against spoofingdevice authentication
    • Anti-masking systemdetects attempts to block the detector view, Learn more
    • Communication loss detectionafter 36 s, Detection time depends on the Jeweller or Jeweller/Fibra settings., Learn more
    • Power supply
    • Battery4 × CR123A, Pre-installed.
    • Typetype C
    • Calculated battery lifeup to 3 years, With Delay when entering feature disabled., Learn more, up to 2.5 years, With Delay when entering feature enabled., Learn more
    • Detector’s operating voltage range3.8−6.2 V⎓
    • Detector’s nominal operating voltage6 V⎓
    • Quiescent detector’s current consumption at nominal voltage23 μA
    • Maximum detector’s current consumption at nominal voltage906 mA
    • Full battery capacity3,200 mAh, Capacity of each battery is 1,600 mAh.
    • Low battery voltage4.65 V⎓
    • Low battery recovery voltage5 V⎓
    • End-of-life battery voltage3.8 V⎓, Device is switched off.
    • End-of-life battery capacity500 mAh
    • ManufacturerHuiderui or Panasonic, UL listed.
    • Enclosure
    • Dimensions8.11″ × 4.25″ × 3.66″
    • Weight16.58 oz
    • Operating temperature rangefrom −13°F to 140°F, Temperature range from -40 °F (-40 °C) to 150 °F (+66 °C) is certified according to UL/ULC standards.
    • Operating humidityup to 95%, Humidity of up to 95% is certified according to UL/ULC standards.
    • Protection classIP55
