  •   Wireless motion detector with camera Ajax MotionCam Jeweller PhOD 119281.310.BL1 (black, HDR)

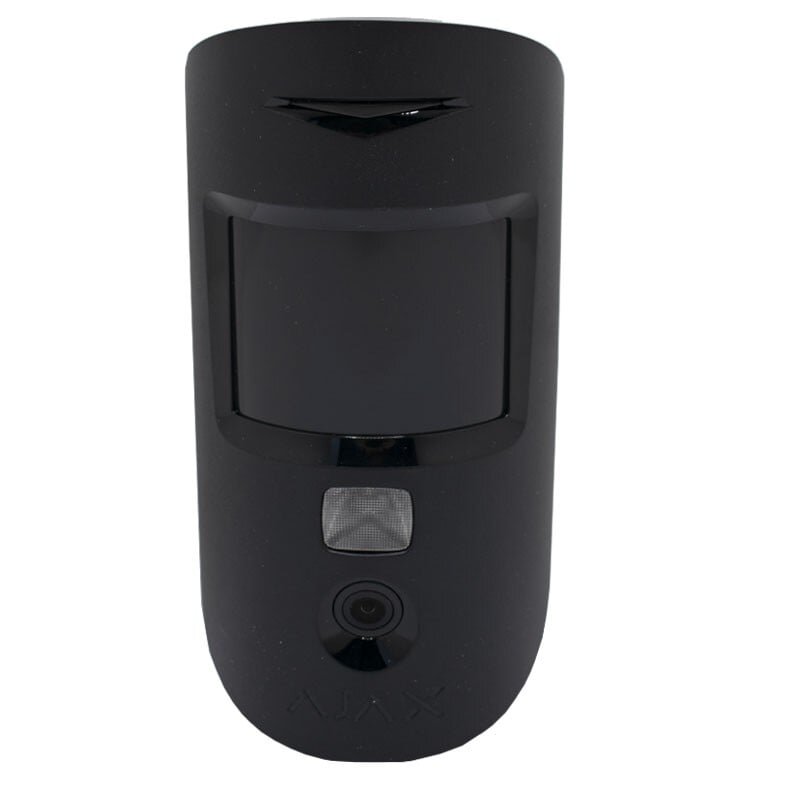

    Wireless motion detector with camera Ajax MotionCam Jeweller PhOD 119281.310.BL1 (black, HDR)

    Inquire about this item
    Price 227.69 €
    Want another price? Suggest yours!
    In stock.

    In stock: 20 pcs
    • General
    • CommunicationJeweller proprietary wireless communication technology for transmitting alarms and events; two-way communication, advanced anti-sabotage, block encryption with dynamic key, instant notifications, remote configuration via Ajax apps
    • Jeweller frequency bands866.0–866.5 MHz, 868.0–868.6 MHz, 868.7–869.2 MHz, 905.0–926.5 MHz, 915.85–926.5 MHz, 921.0–922.0 MHz (depending on sales region)
    • Maximum effective radiated power (ERP)Up to 20 mW with automatic power control to reduce consumption and interference
    • Radio signal modulationGFSK
    • Radio signal rangeUp to 1,700 m between detector and control panel or range extender in open space
    • Encrypted communicationAll stored and transmitted data protected by block encryption with dynamic key
    • Frequency hoppingUses frequency hopping to prevent interception and jamming
    • Wings communication technologyProprietary wireless technology for photo verification transmission; two-way communication, block encryption with dynamic key, advanced anti-sabotage, data package reloading, photo delivery check
    • Wings frequency bands866.0–866.5 MHz, 868.0–868.6 MHz, 868.7–869.2 MHz, 905.0–926.5 MHz, 915.85–926.5 MHz, 921.0–922.0 MHz (depending on sales region)
    • Wings radio signal rangeUp to 1,700 m between detector and control panel or range extender in open space
    • DetectionSensitive element: 1 PIR sensor
    • Motion detection distanceUp to 12 m when installed at 2.4 m height
    • Motion detection anglesHorizontal — 88.5°
    • Motion detection speedFrom 0.3 to 2.0 m/s; lens direction should be perpendicular to the expected intrusion path
    • Sensitivity3 levels adjustable by PRO or admin user in Ajax app
    • Pet immunityUp to 20 kg and up to 50 cm height
    • False alarm preventionSmartDetect software algorithm with temperature compensation for −10 °C to +40 °C
    • Photo verificationPhoto by alarm, photo on demand (disabled by default), photo by scenario (disabled by default), photo by schedule (OS Malevich 2.19 or later), photo by arming/disarming
    • Photo resolution640 × 480 px, 320 × 240 px (default), 160 × 120 px; adjustable in Ajax app
    • HDR imageImproves detail in bright and dark scenes; available from firmware 16.59.36.5 or later
    • IR backlightFor night photography and low-light conditions
    • Pictures in a series1–5 images at 320 × 240 px or 160 × 120 px; 1–3 images at 640 × 480 px; adjustable in Ajax app
    • Photo delivery timeUp to 7 s (160 × 120 px), up to 9 s (320 × 240 px), up to 20 s (640 × 480 px) when hub connected via Ethernet or 4G and signal strength 2–3 bars
    • Installation recommendationsIndoor use only; recommended installation height 2.4 m
    • Sabotage protectionTampering alarm, protection against spoofing (device authentication), communication loss detection within 36 s (depends on settings)
    • Power supply2 × CR123A batteries (pre-installed), type C
    • Calculated battery lifeUp to 4 years with Photo on demand disabled; up to 3 years with Photo on demand enabled
    • Operating voltage range4.2–6.2 V⎓
    • Nominal operating voltage6 V⎓
    • Quiescent current consumption30 μA at nominal voltage
    • Maximum current consumption400 mA at nominal voltage
    • Battery capacity1,550 mAh; low battery voltage 4.71–5.00 V⎓; recovery voltage 5.06–5.36 V⎓; end-of-life voltage 3.8 V⎓; end-of-life capacity 150 mAh
    • Battery manufacturerHuiderui or Panasonic
    • EnclosureDimensions 135 × 70 × 60 mm; weight 170 g
    • Operating temperatureFrom −10 °C to +40 °C
    • Operating humidityUp to 75%
    • Protection classIP50
    • ColourBlack or White
    • Complete setMotionCam (PhOD) Jeweller, SmartBracket mounting panel, installation kit, 2 × CR123A batteries (pre-installed), quick start guide
