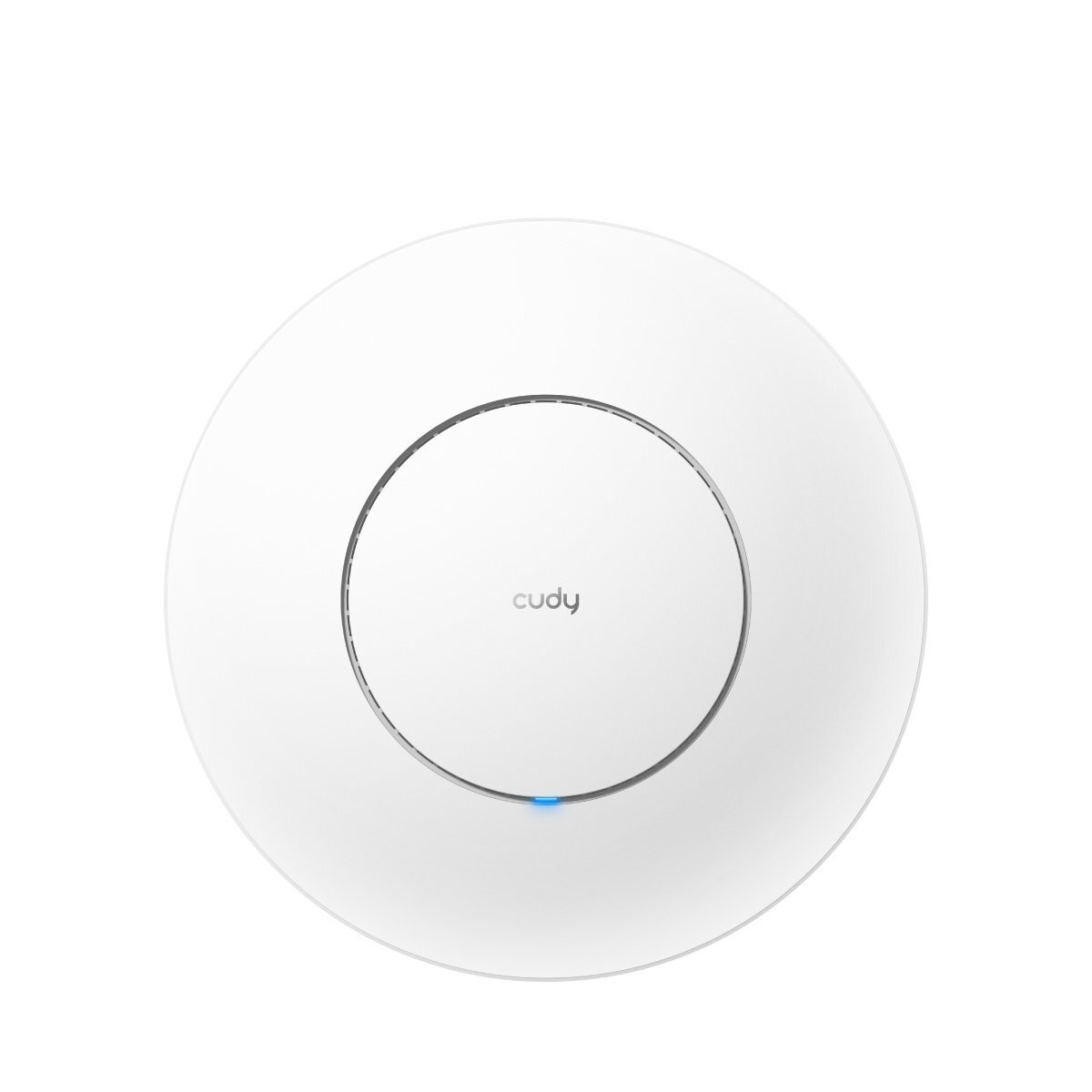

Wireless LAN access point CUDY AP3000 (Indoor)
ManufacturerCudy-
- General
- Model VersionAP3000 1.0
- CPU1.3 GHz Dual-Core CPU
- Flash/ROM256 MB (2 Gbit) NAND
- DDR/RAM512 MB (4 Gbit) DDR4
- 5 GHz Wi-Fi Speed2402 Mbps
- 2.4 GHz Wi-Fi Speed574 Mbps
- 5 GHz Wi-Fi Streams3T3R (3×3 MIMO)
- 2.4 GHz Wi-Fi Streams2T2R (2×2 MIMO)
- Wi-Fi Antennas5× Internal
- 5 GHz Antenna Gain Max5.6 dBi
- 2.4 GHz Antenna Gain Max4.8 dBi
- FEM or PA/LNA5 GHz: 3× External, 2.4 GHz: 2× External
- BeamformingTrue
- Range PerformanceMax: 200 m (656 ft); varies with layout and wall materials
- Wall PerformanceTwo wooden walls (<10 cm/4") OR one concrete wall (<20 cm/7") or two concrete walls (<10 cm/4")
- 2.5G RJ45 Ports1
- Ethernet NotesAccepts PoE powering
- LEDSystem
- Physical ButtonsReset Button
- Power InputDC Jack, PoE via Ethernet Port
- Power MethodsDC, 802.3at/af PoE, Passive PoE
- DC Power12V 1.5A
- Passive PoE48 ~ 57V
- Power AdapterAP3000 | DC Adapter: Input 100 ~ 240V, 50/60 Hz AC, Output 12V 1.5A DC; AP3000_P | PoE Adapter: Input 100 ~ 240V, 50/60 Hz AC, Output 48V Passive PoE
- Max Power Consumption12 W (48V PoE), 12 W (DC)
- Idle Power Consumption6.1 W (48V PoE), 6.1 W (DC)
- Advanced ReliabilityHardware Watchdog
- EMS ProtectionESD: Contact 4kV, Air 8kV
- Operating Temperature-10 ℃ ~ 60 ℃ (14 ℉ ~140 ℉)
- Storage Temperature-40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
- Operating Humidity10% ~ 90% non-condensing
- Storage Humidity5% ~ 90% non-condensing
- CertificationsFCC, CE
- Installation OptionsWall-mount, Ceiling-mount
- DimensionsΦ231.9×57.1 mm (Φ9.13×2.25 inches)
- Product Weight494 g (17.43 oz.)
- Package ContentAP3000, Power Adapter, Mounting Kit, Ethernet Cable, Installation Guide
