  •   Wireless LAN access point Cudy AP1300 Wall

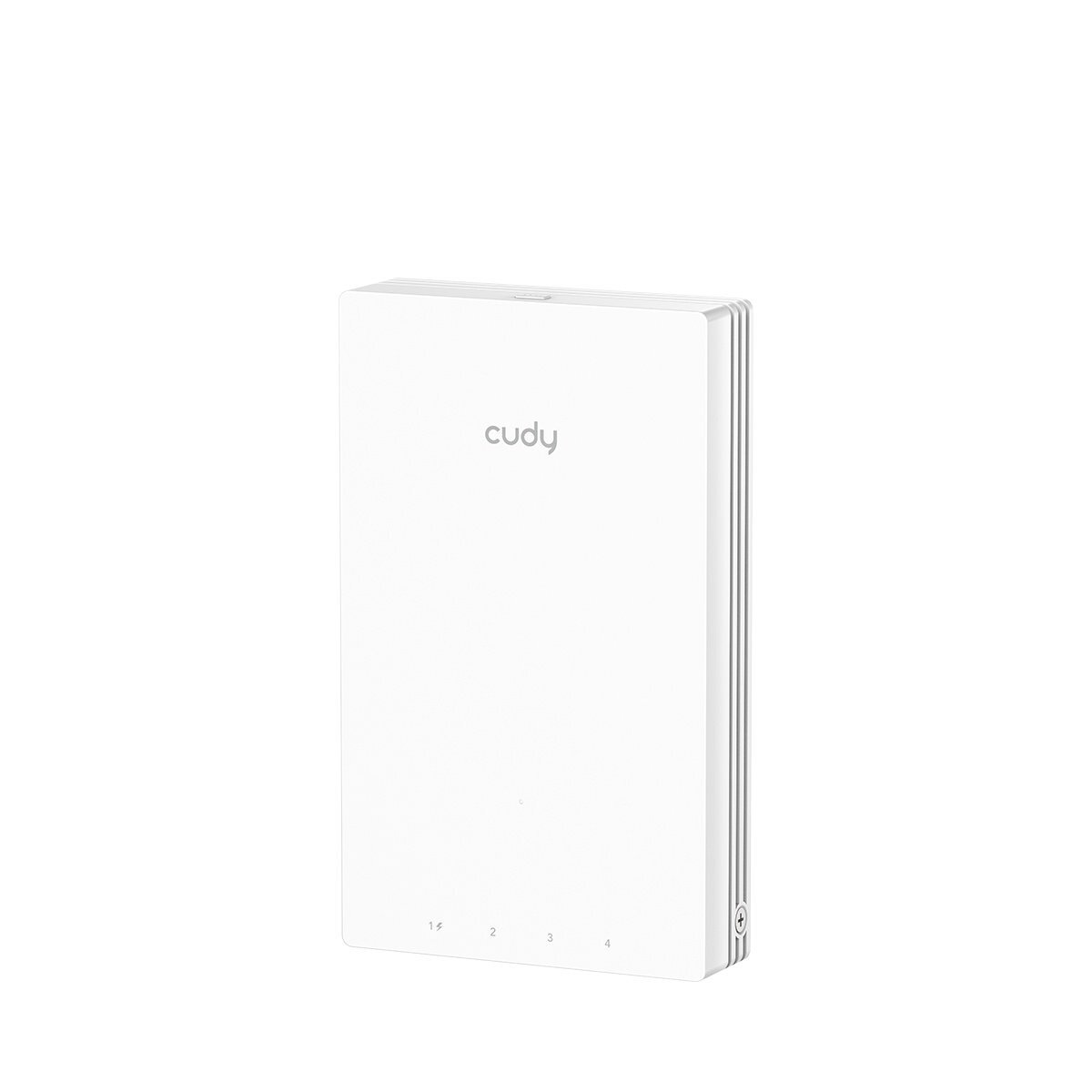

    Wireless LAN access point Cudy AP1300 Wall

    Inquire about this item
    Price 50.20 €
    Want another price? Suggest yours!
    In stock.
    In stock: 20 pcs
    Manufacturer
    Cudy
    • General
    • Model VersionAP1300 Wall 1.0
    • CPU880 MHz Dual-Core CPU
    • Flash/ROM16 MB (128 Mbit) NOR
    • DDR/RAM128 MB (1 Gbit) DDR3
    • 5 GHz Wi-Fi Speed867 Mbps
    • 2.4 GHz Wi-Fi Speed300 Mbps
    • 5 GHz Wi-Fi Streams2T2R (2×2 MIMO)
    • 2.4 GHz Wi-Fi Streams2T2R (2×2 MIMO)
    • Wi-Fi Antennas2× Internal
    • 5 GHz Antenna Gain Max5.6 dBi
    • 2.4 GHz Antenna Gain Max5.0 dBi
    • FEM or PA/LNA5 GHz: 2× Internal, 2.4 GHz: 2× Internal
    • BeamformingTrue
    • Range PerformanceMax: 80 m (262 ft)
    • Wall PerformanceTwo wooden walls < 10 cm, One concrete wall < 20 cm
    • Gigabit RJ45 Ports5
    • Ethernet NotesAccepts PoE powering
    • LED IndicatorsSystem
    • Physical ButtonsReset Button, LED On/Off Button (configurable for LED/Wi-Fi)
    • Power InputPoE via Ethernet Port
    • Power MethodsPassive PoE, 802.3af/at PoE
    • Passive PoE Voltage48V
    • Max Power Consumption12W (PoE)
    • Idle Power Consumption4W
    • Advanced FeaturesHardware Watchdog
    • EMS ProtectionESD Contact: 4kV, Air: 8kV
    • Operating Temperature0°C ~ 40°C (32°F ~ 104°F)
    • Storage Temperature-40°C ~ 70°C (-40°F ~ 158°F)
    • Operating Humidity10% ~ 90% non-condensing
    • Storage Humidity5% ~ 95% non-condensing
    • CertificationsFCC, CE
    • Installation TypeWall-mount
    • Dimensions143×86×27.6 mm (5.63×3.39×1.09 inches)
    • Product Weight261.2 g (9.21 oz.)
