  •   Wireless LAN access point CUDY AP1300

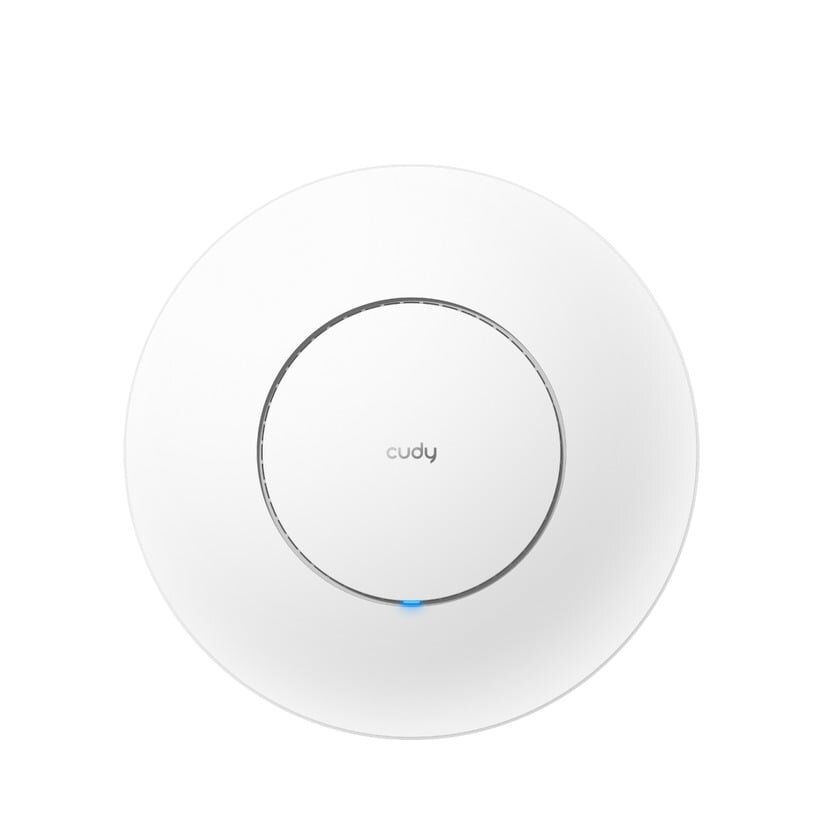

    Wireless LAN access point CUDY AP1300

    Inquire about this item
    Price 42.12 €
    Want another price? Suggest yours!
    In stock.
    In stock: 20 pcs
    Manufacturer
    Cudy

    • General
    • Model VersionAP1300 1.0
    • CPU ChipsetMT7621DAT
    • CPU Details880 MHz Dual-Core CPU
    • Flash/ROM16 MB (128 Mbit) NOR
    • DDR/RAM128 MB (1 Gbit) DDR3
    • 5 GHz Wi-Fi Speed867 Mbps
    • 2.4 GHz Wi-Fi Speed300 Mbps
    • 5 GHz Wi-Fi Streams2T2R (2×2 MIMO)
    • 2.4 GHz Wi-Fi Streams2T2R (2×2 MIMO)
    • Wi-Fi Antennas4× Internal
    • 5 GHz Antenna Gain Max4.64 dBi
    • 2.4 GHz Antenna Gain Max5.31 dBi
    • FEM or PA/LNA5 GHz: 2× Internal, 2.4 GHz: 2× Internal
    • BeamformingTrue
    • Range PerformanceMax: 170 m (558 ft); Indoor WiFi range varies depending on layout and wall materials
    • Wall PerformanceTwo wooden walls <10 cm (4"), One concrete wall <20 cm (7")
    • Gigabit RJ45 Ports1
    • Ethernet NotesAccepts PoE powering
    • LEDSystem
    • Physical ButtonsReset Button
    • Power InputDC Jack, PoE via Ethernet Port
    • Power MethodsDC, Passive PoE, 802.3at/af PoE
    • DC Input12V 1A
    • Passive PoE Input24 ~ 57V
    • Power AdapterAP1300 | DC Adapter: Input: 100 ~ 240 V, 50/60 Hz AC, Output: 12V 1A DC; AP1300_P | PoE Adapter: Input: 100 ~ 240 V, 50/60 Hz AC, Output: 48V Passive PoE
    • Max Power ConsumptionMax (PoE): 11 W, Max (DC): 7.5 W
    • Idle Power Consumption4.008 W
    • AdvancedHardware Watchdog
    • EMSESD: Contact: 4kV; Air: 8kV
    • Operating Temperature-10 ℃ ~ 65 ℃ (14 ℉ ~149 ℉)
    • Storage Temperature-40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
    • Operating Humidity10% ~ 90% non-condensing
    • Storage Humidity5% ~ 90% non-condensing
    • CertificationsFCC, CE
    • InstallationWall-mount, Ceiling-mount
    • DimensionΦ231.9 × 57.1 mm (Φ9.13 × 2.25 in)
    • Product Weight400 g (14.11 oz.)
    • Package ContentAP1300, Power Adapter, Mounting Kit, Ethernet Cable, Installation Guide
