  •   Wireless LAN access point Cudy AP11000

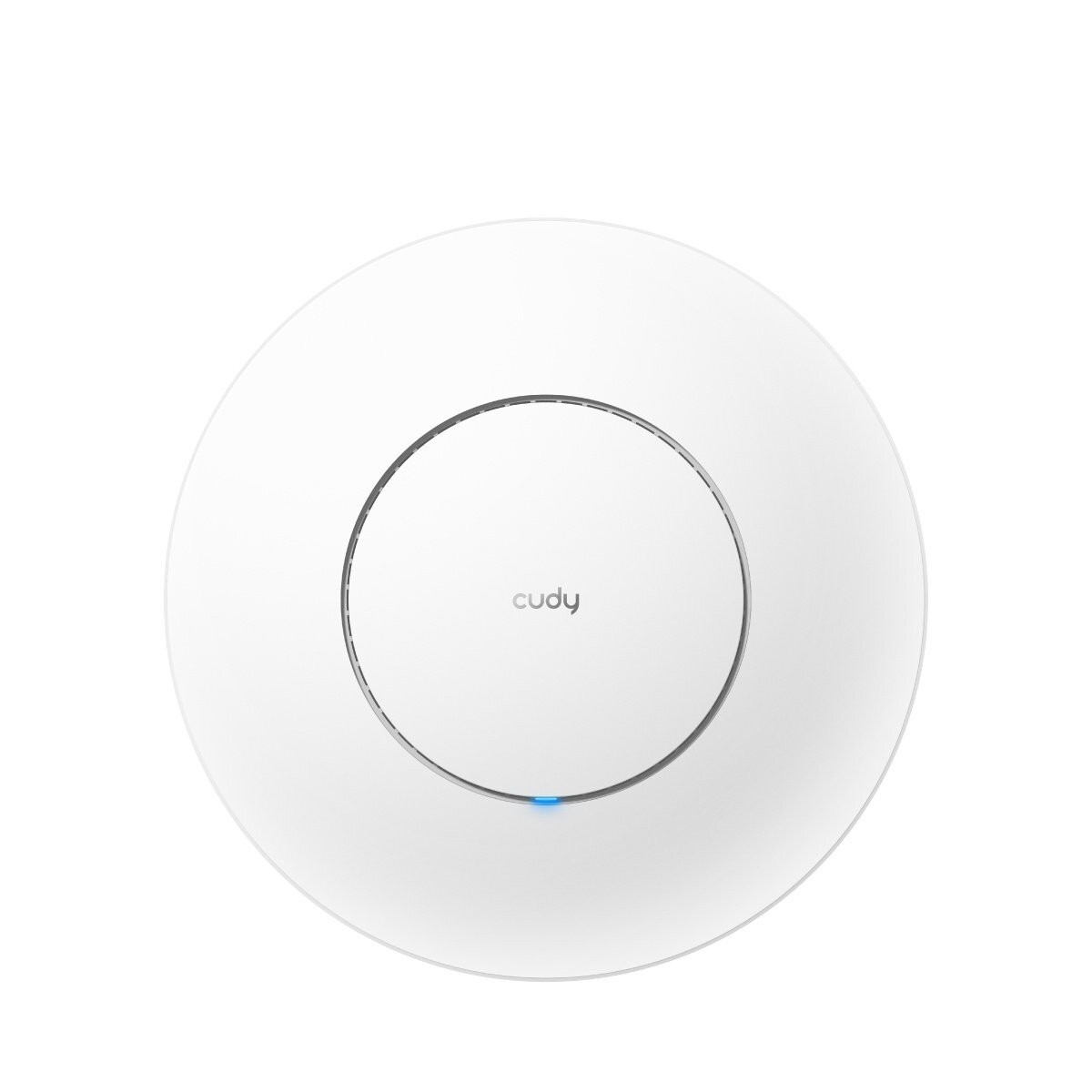

    Wireless LAN access point Cudy AP11000

    Inquire about this item
    Price 194.48 €
    Want another price? Suggest yours!
    In stock.

    In stock: 20 pcs
    Manufacturer
    Cudy
    • General
    • Model VersionAP11000 1.0
    • CPU1.5 GHz Quad-Core CPU
    • Flash/ROM128 MB (1 Gbit) NAND
    • DDR/RAM512 MB (4 Gbit) DDR4
    • 6 GHz Wi-Fi Speed5760 Mbps
    • 5 GHz Wi-Fi Speed4320 Mbps
    • 2.4 GHz Wi-Fi Speed688 Mbps
    • 6 GHz Wi-Fi Streams2T2R (2×2 MIMO)
    • 5 GHz Wi-Fi Streams2T2R (2×2 MIMO)
    • 2.4 GHz Wi-Fi Streams2T2R (2×2 MIMO)
    • Wi-Fi Antennas6× Internal
    • 6 GHz Antenna Gain Max5.5 dBi
    • 5 GHz Antenna Gain Max4.9 dBi
    • 2.4 GHz Antenna Gain Max5.8 dBi
    • FEM or PA/LNA6 GHz: 2× High-Power, 5 GHz: 2× High-Power, 2.4 GHz: 2× Standard
    • BeamformingTrue
    • Range PerformanceMax: 260 m (853 ft)
    • Wall PerformanceTwo wooden walls < 10 cm, One or two concrete walls < 10–20 cm
    • 10G SFP+ Slots1
    • 2.5G RJ45 Ports1
    • Ethernet NotesRJ45 port supports PoE powering
    • LED IndicatorsSystem
    • Physical ButtonsReset Button
    • Power InputDC Jack, PoE via Ethernet Port
    • Power MethodsDC, Passive PoE, 802.3at PoE
    • DC Specification12V 2A
    • Passive PoE Voltage48 ~ 57V
    • Power Adapter – AP11000Input: 100–240V AC, 50/60 Hz; Output: 12V 2A DC
    • Power Adapter – AP11000_PInput: 100–240V AC, 50/60 Hz; Output: 48V Passive PoE
    • Max Power Consumption20W
    • Idle Power Consumption12W
    • Advanced FeaturesHardware Watchdog
    • Operating Temperature0°C ~ 40°C (32°F ~ 104°F)
    • Storage Temperature-40°C ~ 70°C (-40°F ~ 158°F)
    • Operating Humidity10% ~ 90% non-condensing
    • Storage Humidity5% ~ 95% non-condensing
    • CertificationsFCC, CE
    • Installation TypeWall-mount, Ceiling-mount
    • Dimensions231.9×231.9×57.1 mm (9.13×9.13×2.25 inches)
    • Product Weight578.2 g (20.4 oz.)
