  •   Wireless indoor siren Ajax HomeSiren 38110.11.BL1 (black)

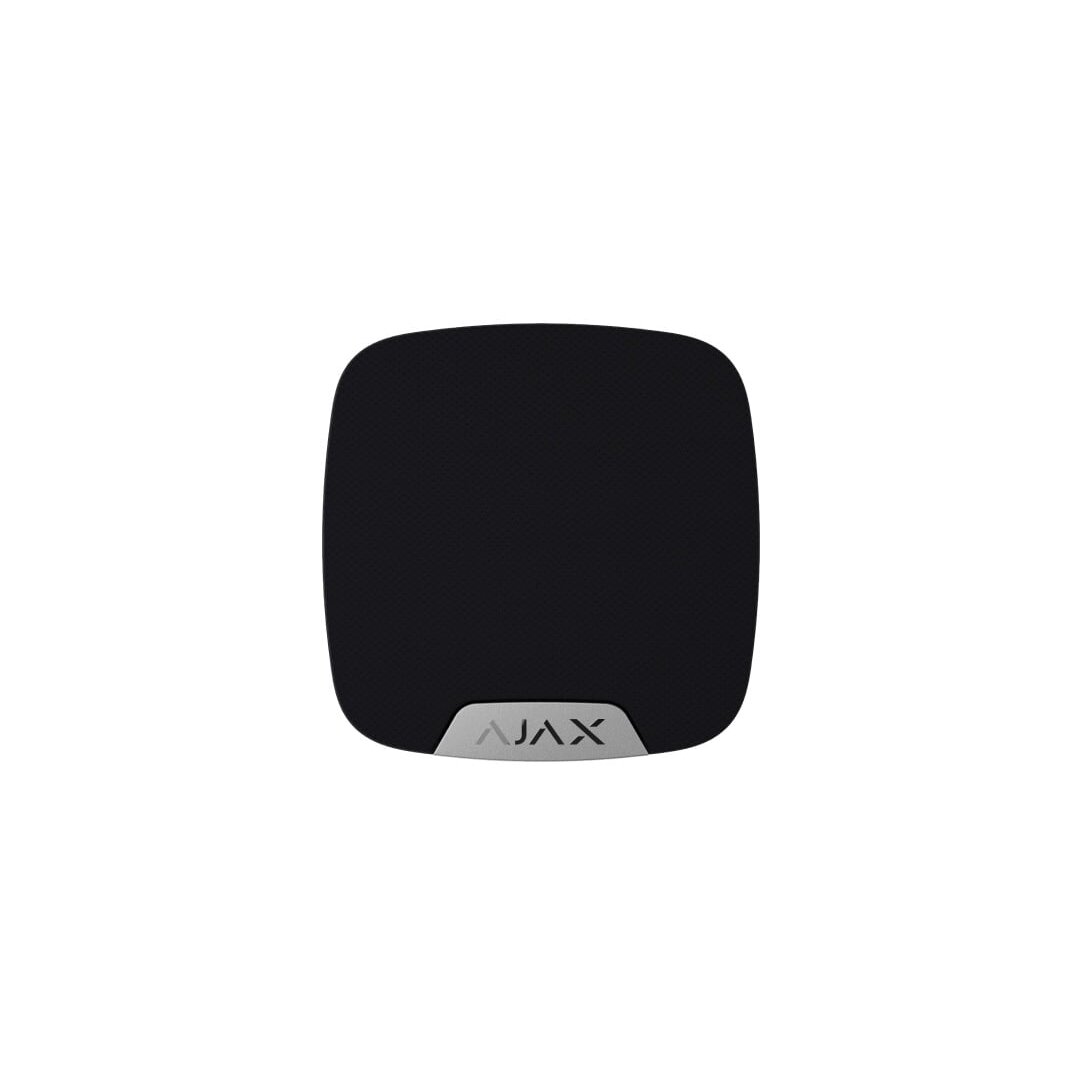

    Wireless indoor siren Ajax HomeSiren 38110.11.BL1 (black)

    Inquire about this item
    Price 88.55 €
    Want another price? Suggest yours!
    In stock.
    In stock: 20 pcs
    • Communication
    • Jeweller communication technologyProprietary wireless communication technology to transmit commands, alarms, and events., Key features:, Two-way communication., Advanced anti-sabotage., Block encryption featuring a dynamic key., Instant notifications., Remote control and configuration in Ajax apps., Learn more
    • Frequency bands866.0–866.5 MHz 868.0–868.6 MHz 868.7–869.2 MHz 905.0–926.5 MHz * 915.85–926.5 MHz 921.0–922.0 MHz, Depends on the sales region., * Certified according to UL/ULC standards.
    • Maximum effective radiated power (ERP)up to 25 mW, Automatic power control to reduce power consumption and radio interference.
    • Radio signal modulationGFSK
    • Radio communication rangeup to 6,500 ft, Between the device and a hub (or a range extender) in an open space., Calculate radio communication range at the facility
    • Encrypted communicationAll stored and transmitted data are protected by block encryption featuring a dynamic key.
    • Frequency hoppingTo prevent radio interference and jamming., Learn more
    • Key features
    • Alarm typeacoustic and LED indication, Buzzer and LED.
    • Warning device typetype W, Internal and self-powered.
    • Alarm volumefrom 80 to 100 dB at a distance of 3.3 ft, Adjusted by a PRO or a user with admin rights in the Ajax app., 93 dB at a distance of 3.3 ft, Default settings.
    • Alarm durationfrom 3 s to 3 min, Alarm duration up to 15 minutes is available only for sirens with firmware version NA 5.60.4.14 or higher., Adjusted by a PRO or a user with admin rights in the Ajax app.
    • Siren sound frequency3.4 ± 0.5 kHz
    • Ability to connect an additional LED3 V⎓, An additional LED works in parallel with the built-in LED of the siren and fully replicates its indication.
    • Events indicationAlarms., Delays when entering/leaving., Security mode., Security mode changing., After-alarm indication.
    • ChimeThe siren makes a special sound to notify that the opening detectors are triggered when the system is disarmed., Learn more
    • Sabotage protection
    • Tamper alarmNotifications on attempts to detach the device from the surface or remove it from the mounting panel., Learn more
    • Protection against spoofingdevice authentication
    • Communication loss detectionafter 36 s, Detection time depends on the Jeweller or Jeweller/Fibra settings., Learn more
    • Power supply
    • Battery2 × CR123A, Pre-installed.
    • Calculated battery lifeup to 5 years, Learn more
    • Siren’s operating voltage range1.9−3.3 V⎓
    • Siren’s nominal operating voltage3 V⎓
    • Quiescent siren’s current consumption at nominal voltage68 µA
    • Peak siren’s current consumption at nominal voltage1.1 A, When the siren sounds at the Very Loud volume level.
    • Average siren’s current consumption at nominal voltage50 mA, When the siren sounds at the default volume level. Regardless of the arming mode.
    • Full battery capacity3,200 mAh, Capacity of each battery is 1,600 mAh.
    • Low battery voltage2.1 V⎓
    • End-of-life battery voltage1.9 V⎓, Device is switched off.
    • End-of-life battery capacity366 mAh
    • ManufacturerHuiderui, UL listed.
    • Enclosure
    • Dimensions2.95″ × 2.99″ × 1.06″
    • Weight3.42 oz
    • Operating temperature rangefrom 14°F to 104°F, Temperature range from 32 °F (0 °C) to 120 °F (+49 °C) is certified according to UL/ULC standards.
    • Operating humidityup to 75%, Humidity of up to 93% is certified according to UL/ULC standards.
    • Protection classIP50, Not evaluated by UL.
