  •   WiFi range extender Cudy M3600 (2 pcs.)

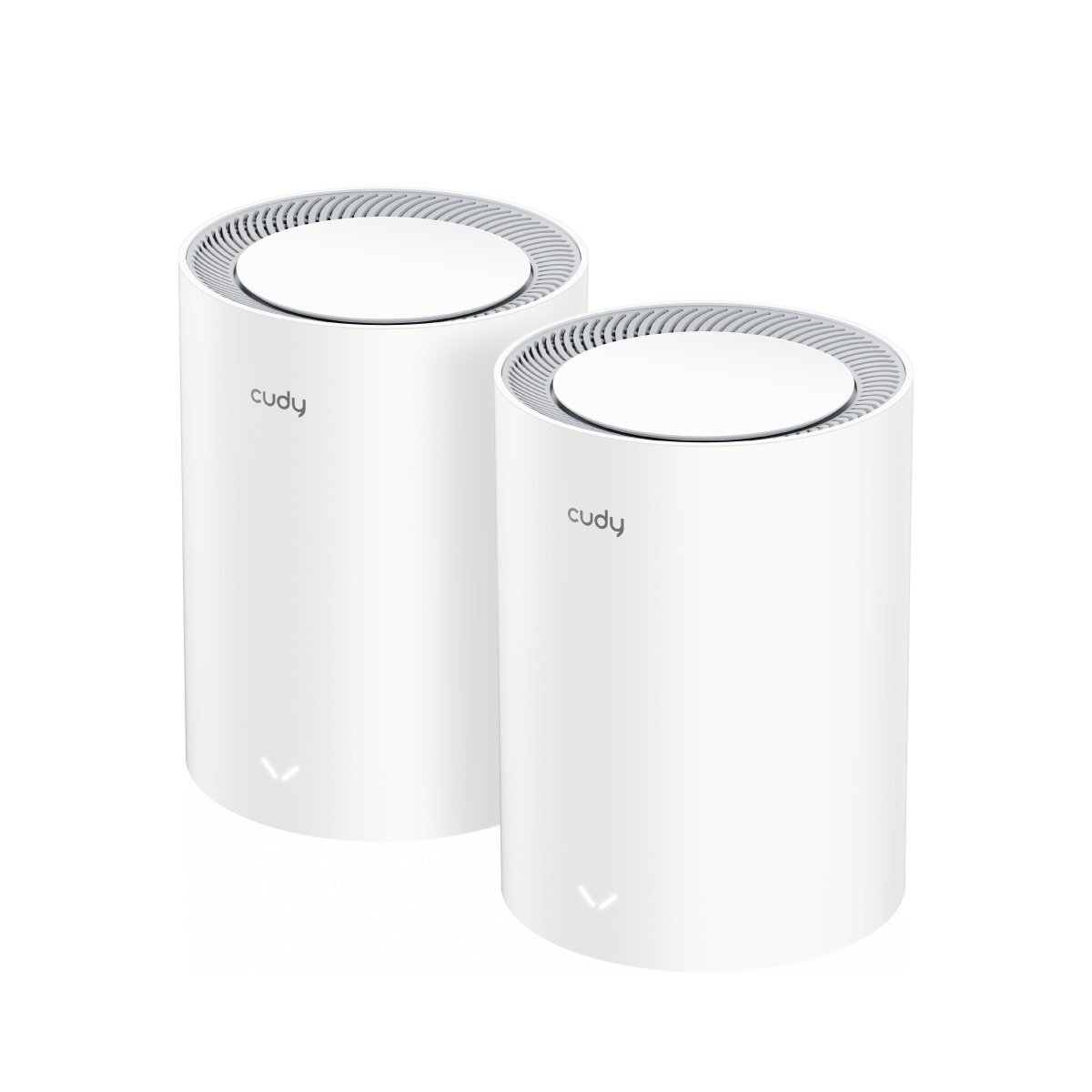

    WiFi range extender Cudy M3600 (2 pcs.)

    Inquire about this item
    Price 193.48 €
    Want another price? Suggest yours!
    In stock.
    In stock: 20 pcs
    Manufacturer
    Cudy
    • General
    • Model VersionM3600 1.0
    • CPU2.0 GHz Quad-Core, ARM Cortex-A7
    • Flash/ROM128 MB (1 Gbit) NAND
    • DDR/RAM512 MB (4 Gbit) DDR3L
    • 5 GHz Wi-Fi Speed2882 Mbps
    • 2.4 GHz Wi-Fi Speed688 Mbps
    • 5 GHz Wi-Fi Streams2T2R (2×2 MIMO)
    • 2.4 GHz Wi-Fi Streams2T2R (2×2 MIMO)
    • Wi-Fi Antennas4× Internal
    • 5 GHz Antenna Gain Max5.5 dBi
    • 2.4 GHz Antenna Gain Max5.4 dBi
    • FEM or PA/LNA5 GHz: 2× External, 2.4 GHz: 2× Internal
    • BeamformingTrue
    • Range PerformanceMax: 220 m (722 ft) in open space
    • Wall PerformanceTwo wooden walls (<10 cm), one concrete wall (<20 cm) or two concrete walls (<10 cm)
    • Indoor Coverage Reference2 Pack: 200 m² (2100 sq ft), 3 Pack: 270 m² (2900 sq ft)
    • Gigabit RJ45 Ports3
    • Ethernet Notes1× WAN port, 2× LAN ports
    • LED IndicatorsSystem, Speed/Link/ACT of Ethernet Port
    • Physical ButtonsWPS Button, Reset Button
    • Power InputDC Jack
    • Power MethodDC
    • DC Specification12V 1A
    • Power AdapterInput: 100–240V AC, 50/60 Hz; Output: 12V 1A DC
    • Max Power Consumption9W
    • Operating Temperature0°C ~ 40°C (32°F ~ 104°F)
    • Storage Temperature-40°C ~ 70°C (-40°F ~ 158°F)
    • Operating Humidity10% ~ 90% non-condensing
    • Storage Humidity5% ~ 95% non-condensing
    • CertificationsFCC, CE
    • Installation TypeDesktop
    • DimensionsΦ110×154.5 mm (Φ4.33×6.08 inches)
