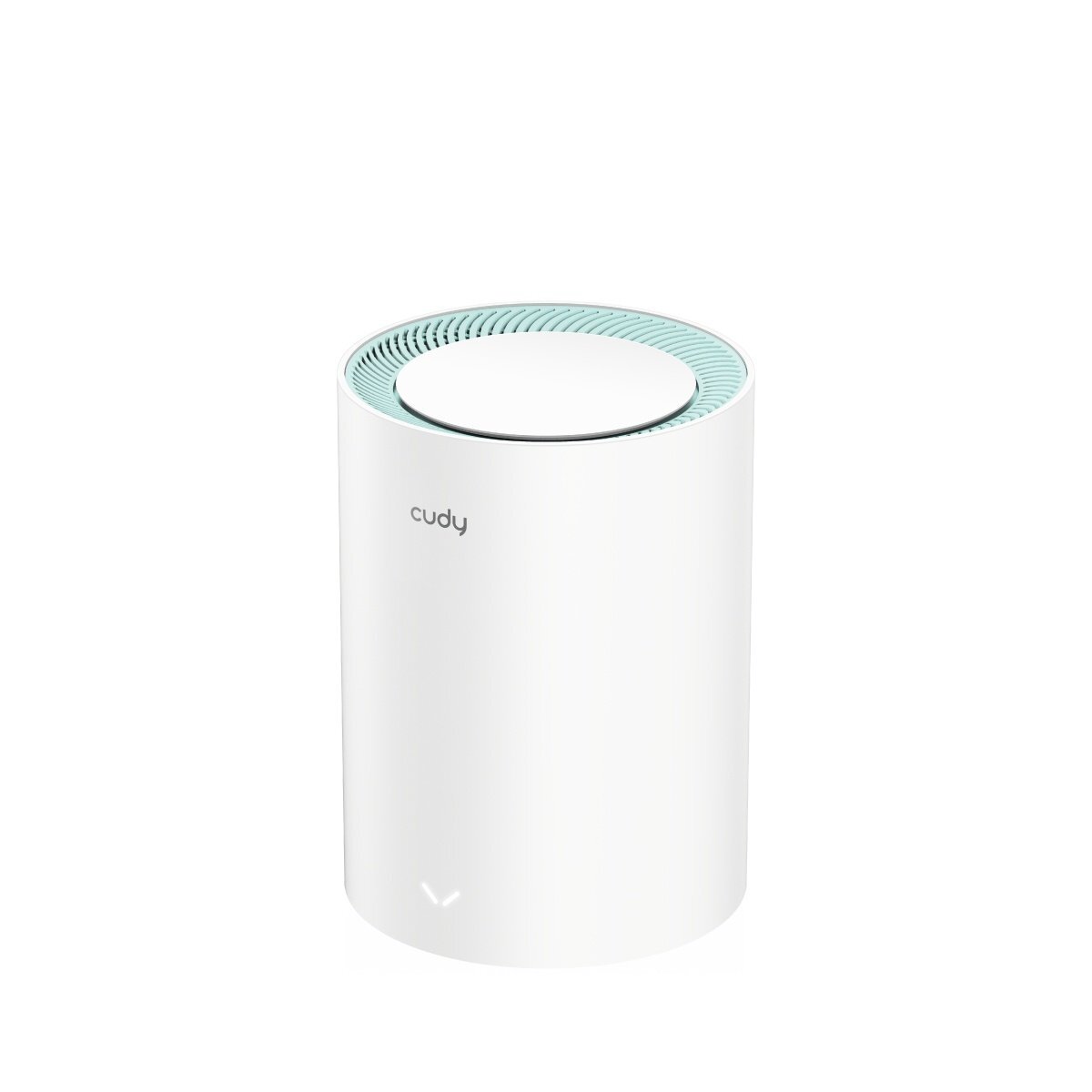

  •   WiFi range extender Cudy M1500 (1 pc.)

    WiFi range extender Cudy M1500 (1 pc.)

    Inquire about this item
    Price 49.77 €
    Want another price? Suggest yours!
    In stock.
    In stock: 20 pcs
    Manufacturer
    Cudy
    • General
    • Model VersionM1500 1.0
    • CPU1 GHz Single-Core CPU
    • Flash/ROM16 MB (128 Mbit) NOR
    • DDR/RAM128 MB (1 Gbit) DDR3
    • 5 GHz Wi-Fi Speed1201 Mbps
    • 2.4 GHz Wi-Fi Speed300 Mbps
    • 5 GHz Wi-Fi Streams2T2R (2×2 MIMO)
    • 2.4 GHz Wi-Fi Streams2T2R (2×2 MIMO)
    • Wi-Fi Antennas2× Internal
    • 5 GHz Antenna Gain Max5.56 dBi
    • 2.4 GHz Antenna Gain Max4.41 dBi
    • FEM or PA/LNA5 GHz: 2× Internal, 2.4 GHz: 2× Internal
    • BeamformingTrue
    • Range PerformanceMax: 170 m (558 ft) in open space
    • Wall PerformanceTwo wooden walls (<10 cm), One concrete wall (<20 cm)
    • Indoor Coverage Reference2 Pack: 170 m² (1800 sq ft), 3 Pack: 230 m² (2500 sq ft)
    • Gigabit RJ45 Ports3
    • Ethernet Notes1× WAN port, 2× LAN ports
    • LED IndicatorsSystem
    • Physical ButtonsWPS Button, Reset Button
    • Power InputDC Jack
    • Power MethodDC
    • DC Specification12V 1A
    • Power AdapterInput: 100–240V AC, 50/60 Hz; Output: 12V 1A DC
    • Max Power Consumption10W
    • Operating Temperature0°C ~ 40°C (32°F ~ 104°F)
    • Storage Temperature-40°C ~ 70°C (-40°F ~ 158°F)
    • Operating Humidity10% ~ 90% non-condensing
    • Storage Humidity5% ~ 95% non-condensing
    • CertificationsFCC, CE
    • Installation TypeDesktop
    • DimensionsΦ110×154.5 mm (Φ4.33×6.08 inches)
