  •   Wi-Fi Mesh system Cudy M3000 1.0 (3 pcs.)

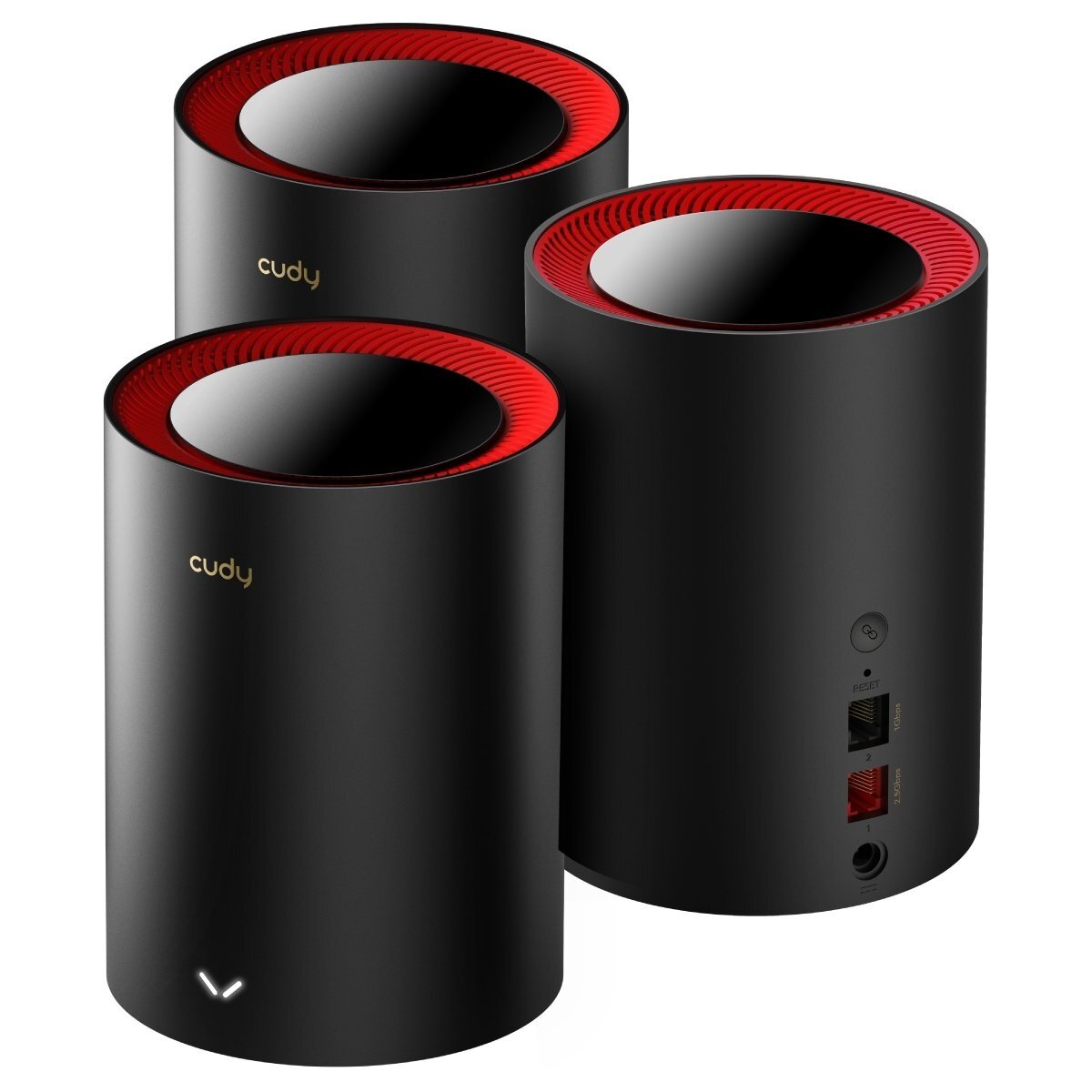

    Wi-Fi Mesh system Cudy M3000 1.0 (3 pcs.)

    Inquire about this item
    Price 141.36 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Cudy
    • General
    • Model VersionM3000 1.0
    • CPU ChipsetMT7981
    • CPU Details1.3 GHz Dual-Core, ARM Cortex-A53
    • Flash/ROM128 MB (1 Gbit) NAND
    • DDR/RAM256 MB (2 Gbit) DDR3
    • 5 GHz Wi-Fi Speed2402 Mbps
    • 2.4 GHz Wi-Fi Speed574 Mbps
    • 5 GHz Wi-Fi Streams2T2R (2×2 MIMO)
    • 2.4 GHz Wi-Fi Streams2T2R (2×2 MIMO)
    • Wi-Fi Antennas5× Internal
    • 5 GHz Antenna Gain Max5.1 dBi
    • 2.4 GHz Antenna Gain Max4.2 dBi
    • FEM or PA/LNA5 GHz: 3× Internal, 2.4 GHz: 2× Internal
    • BeamformingTrue
    • Range PerformanceMax: 220 m (722 ft); Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
    • Wall PerformanceTwo wooden walls with thickness < 10 cm (4''), One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')
    • Indoor Coverage Reference2 Pack: 200 m² (2150 sq ft), 3 Pack: 270 m² (2900 sq ft); Applied to wireless backhaul situation. Place in the center of each floor, with a maximum of three obstacles to each room.
    • 2.5G RJ45 Ports1
    • Gigabit RJ45 Ports1
    • Ethernet NotesThe 2.5G port is WAN port, the Gigabit port is LAN port
    • LEDSystem, Speed/Link/ACT of Ethernet Port
    • Physical ButtonsWPS Button, Reset Button
    • Power InputDC Jack
    • Power MethodsDC
    • DC12V 1A
    • Power AdapterInput: 100 ~ 240 V, 50/60 Hz AC; Output: 12V 1A DC
    • Max Power Consumption11.5W
    • Idle Power Consumption4.2W
    • Operating EnvironmentOperating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉); Humidity: 10% ~ 90% non-condensing
    • Storage EnvironmentStorage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉); Storage Humidity: 5% ~ 95% non-condensing
    • CertificationsFCC, CE
    • InstallationDesktop
    • DimensionsΦ110×154.5 mm (Φ4.33×6.08 inches)
    • Product Weight360 g (12.7 oz.)
    • Package ContentM3000, Power Adapter, Ethernet Cable, Installation Guide
