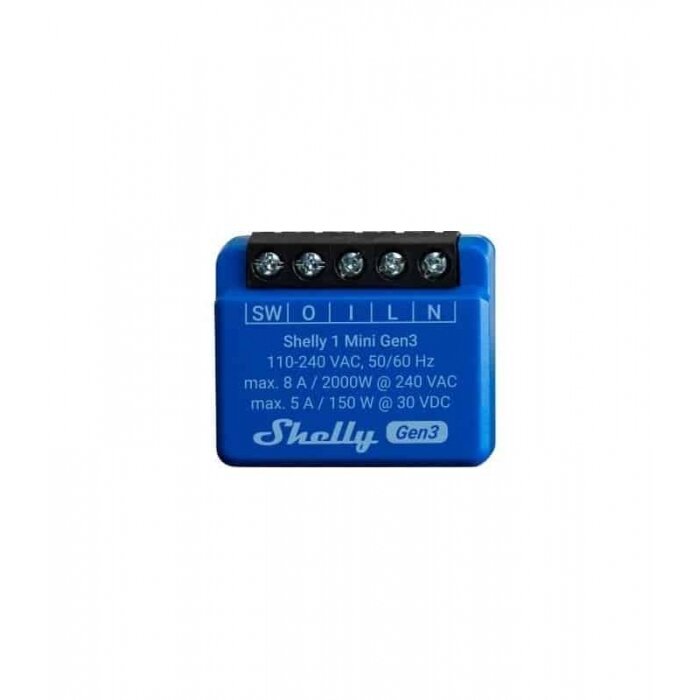

Wi-Fi controlled relay Shelly Mini 1 Gen3 (8A, 110-240 VAC, 5A 30 VDC)
ManufacturerShelly-
- General
- Size (HxWxD)29x35x16 ±0.5 mm
- Weight19 ±1 g
- MountingWall box
- Screw terminals max torque0.4 Nm
- Conductor cross section0.2 to 2.5 mm² / 24 to 14 AWG
- Conductor stripped length6 to 7 mm
- Shell materialPlastic
- ColorBlue
- Ambient temperature-20 to +40 °C
- Humidity30 to 70% RH
- Max. altitude2000 m
- Power supply110 - 240 VAC
- Power consumption< 1.2 W
- RF band2400 - 2495 MHz
- Max. RF power<20 dBm
- Wi-Fi protocol802.11 b/g/n
- Wi-Fi RangeUp to 30m indoors and 50m outdoors
