  •   Wall-mounted wireless LAN access point Cudy AP3000W

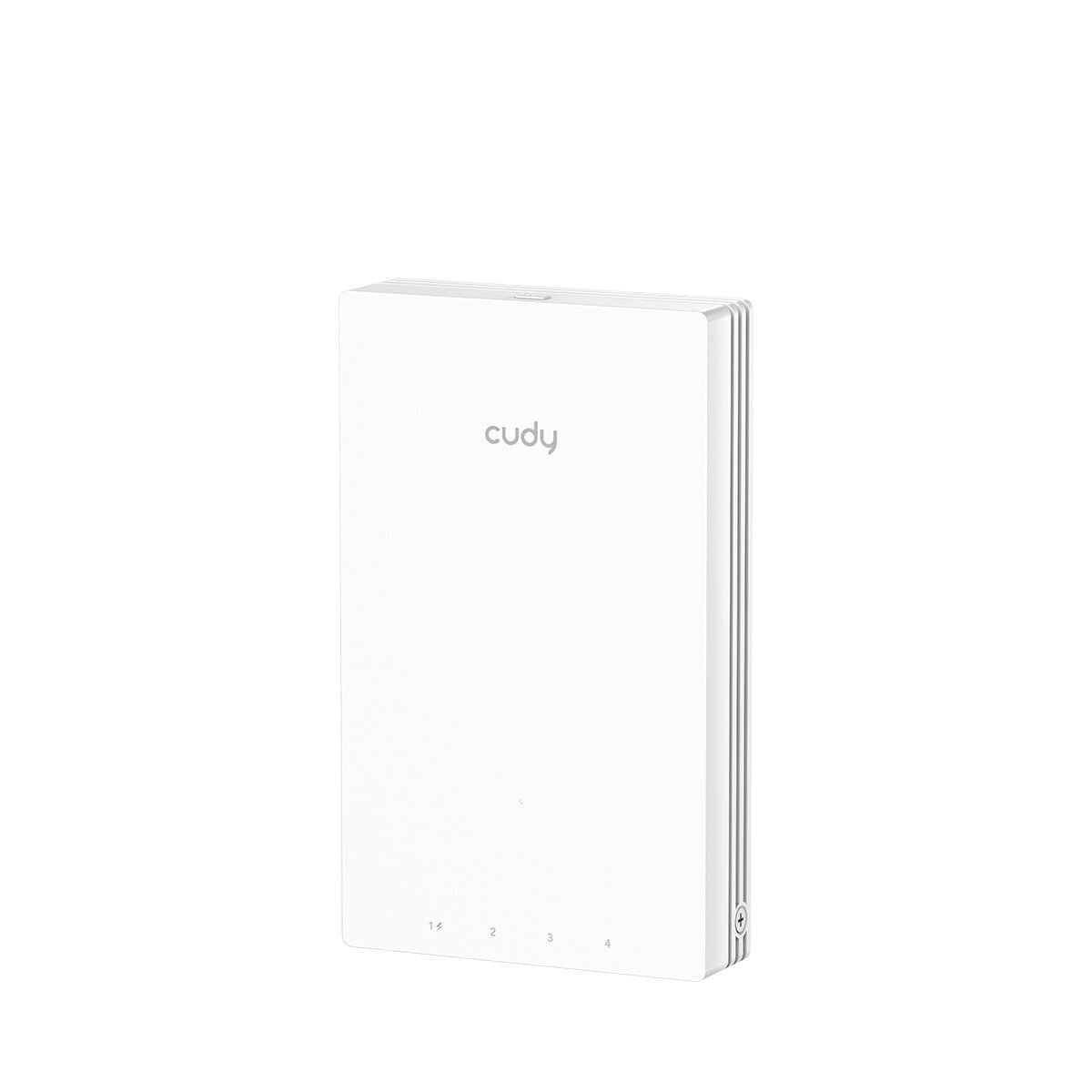

    Wall-mounted wireless LAN access point Cudy AP3000W

    Inquire about this item
    Price 75.19 €
    Want another price? Suggest yours!
    In stock.
    In stock: 20 pcs
    Manufacturer
    Cudy
    • General
    • Model VersionAP3000 Wall 1.0
    • CPU1.3 GHz Dual-Core CPU
    • Flash/ROM128 MB (1 Gbit) NAND
    • DDR/RAM256 MB (2 Gbit) DDR3
    • 5 GHz Wi-Fi Speed2402 Mbps
    • 2.4 GHz Wi-Fi Speed574 Mbps
    • 5 GHz Wi-Fi Streams2T2R (2×2 MIMO) with an Extra Stream
    • 2.4 GHz Wi-Fi Streams2T2R (2×2 MIMO)
    • Wi-Fi Antennas3× Internal
    • 5 GHz Antenna Gain Max7.08 dBi (US), 6.52 dBi (EU)
    • 2.4 GHz Antenna Gain Max3.17 dBi
    • FEM or PA/LNA5 GHz: 3× Internal, 2.4 GHz: 2× Internal
    • BeamformingTrue
    • Range PerformanceMax: 80 m (262 ft)
    • Wall PerformanceTwo wooden walls < 10 cm, One concrete wall < 20 cm
    • Gigabit RJ45 Ports5
    • Ethernet NotesBack port accepts PoE; one front port supports PoE passthrough
    • LED IndicatorsSystem
    • Physical ButtonsReset Button, LED On/Off Button (configurable)
    • Power InputPoE via Ethernet Port
    • Power MethodsPassive PoE, 802.3af/at PoE
    • Passive PoE Voltage48V
    • Max Power Consumption12W (48V PoE)
    • Idle Power Consumption5W (48V PoE)
    • Advanced FeaturesHardware Watchdog
    • EMS ProtectionESD Contact: 4kV, Air: 8kV
    • Operating Temperature0°C ~ 40°C (14°F ~ 149°F)
    • Storage Temperature-40°C ~ 70°C (-40°F ~ 158°F)
    • Operating Humidity10% ~ 90% non-condensing
    • Storage Humidity5% ~ 90% non-condensing
    • CertificationsFCC, CE
    • Installation TypeWall-mount
    • Dimensions143×86×27.6 mm (5.63×3.39×1.09 inches)
    • Product Weight298.6 g (10.53 oz.)
