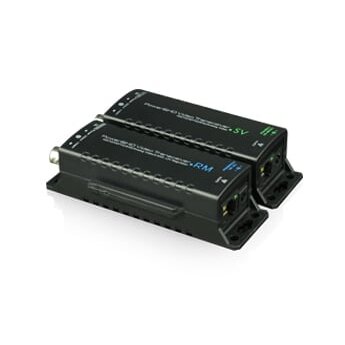

UTEPO UTP101PV-HD5

Item

Parameter

RMUnit

SVUnit

Function

Transfer Signal Number

1x Group(Video+DC Power)

1x Group(Video+DC Power)

Transmission Distance (Max.)

500m

Power Supply

Voltage Input

DC15-54V

DC48-54V

Voltage Output

12VDC

DC48-54V

Power Consumption(Max.)

10W

Optional

Video Performance

&Connector

Video Connector

1×BNC(Male)

Ethernet Port

1×RJ45

Compatible Video Type

HDCVI,HDTVI, AHD, CVBS Signal

Transfer Bandwidth

0-75MHz

RJ45 Indicator

Green Light Solid on: Working Normal; Off: Not Work or Fault

Yellow Light Solid on: Over-current, Short-circuit; Off: Working Normal

Anti-interference

＞60dB

Protection Level

Surge Protection of Power Port

500V Differential-mode   Per:IEC61000-4-5

Surge Protection of Coaxial Port

2KVDifferential-mode Per:IEC61000-4-5

Surge Protection of Ethernet Port

Signal Line-pair: 2KV Differential-mode Power Line-pair : 500V Differential-mode

Per:IEC61000-4-5

ESD Protection

1a Contact Discharge 6KV 1b Air Discharge 8KV

Per:IEC61000-4-2

Operation Environment

Operation Temperature

-10℃-55℃

Storage Temperature

-45℃-75℃

Humidity

0-95%(Non-condensing)

Mechanics

Dimension

113mm×45.5mm×29mm

Material

Refractory ABS Plastics

Color

Black

Weight

65g
