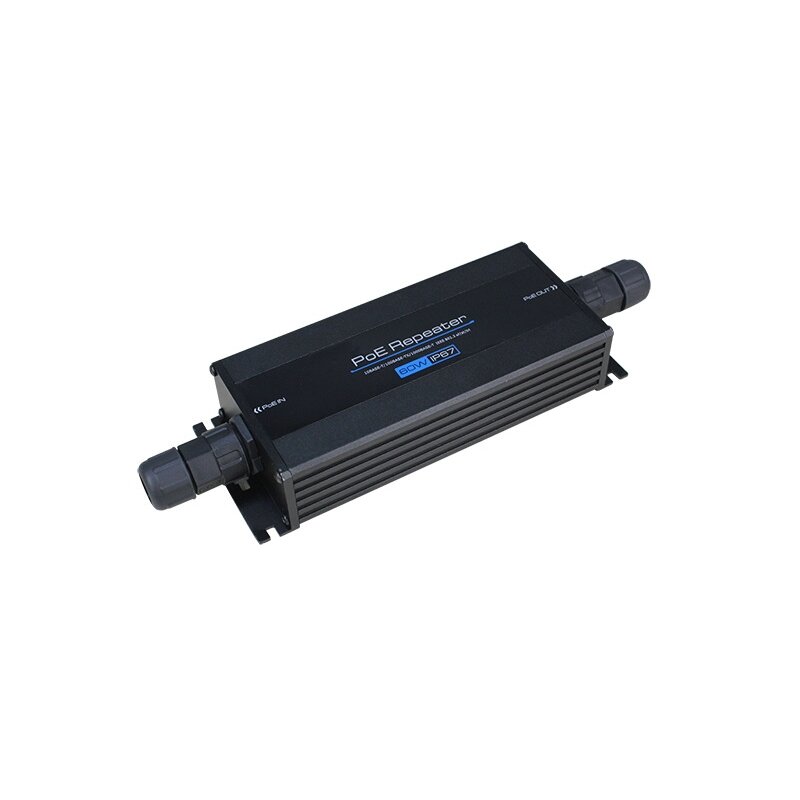

Utepo PoE Gigabit Repeater UTP7201GR-BTPOE(60)

Item

UTP7201GR-BTPOE(60)

Ethernet Ports

PoE Input Port

10/100/1000Base-TX RJ45, IEEE 802.3bt PoE Input

Input Power 50~57V DC, Max 60W

PoE Output Port

1*10/100/1000Base-TX RJ45, IEEE 802.3bt/at/af PoE Output

Output Power: Max 58W in total, 58W@ 101m, 50W@ 200m

Cascade Connection

Support 3 grade

PoE

PoE Standard

IEEE 802.3 af/at/bt

PoE Power Supply Type

Mid-span and End-span

PoE Pin Assignment

1/2(+), 3/6(-),4/5(+), 7/8(-)

Switch Property

Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab/z, 10/100/1000Base-T and 1000Base-X, IEEE 802.3 X.

Forwarding Modes

Store and Forward

Transmission Distance

100m

MAC Table

8k

Switching Capacity

4Gbps

Packet Forwarding Rate

2.98Mpps

Flow Control

IEEE 802.3x pause frame for full duplex, Back pressure for half duplex

Jumbo Frame

10kB

Environment

Surge Immunity

6kV, Standard: IEC6000-4-5

ESD Protection

6kV 1a Contact Discharge Level 3,8kV 1b Air Discharge Level 3, Standard: IEC61000-4-2

Protection Level

IP 67

Operating Temperature

-40℃~75℃

Storage Temperature

-40℃~85℃

Operating Humidity

0~95% (Non-condensation)

Physical Parameter

Dimensions (W*D*H)

193mm*75mm*38mm

Gross Weight

558g

Net Weight

423g

Material

Aluminum

Certifications

Certifications

CE, FCC, RoHS
