  •   Turbo HiLook dome THC-D323-Z F2.7-13.5 (white, 2 MP, 70 m. IR, EXIR)

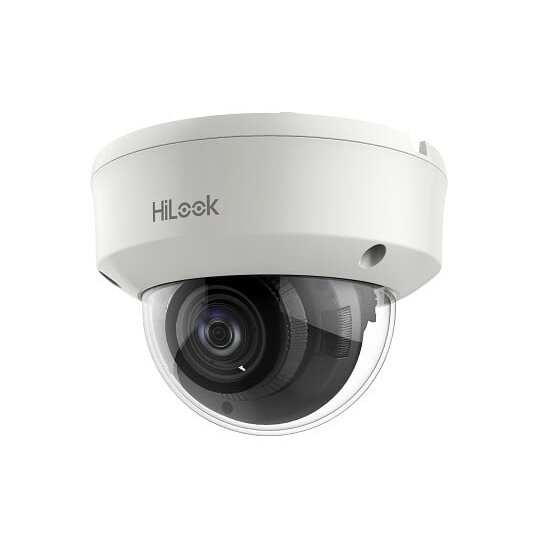

    Turbo HiLook dome THC-D323-Z F2.7-13.5 (white, 2 MP, 70 m. IR, EXIR)

    Inquire about this item
    Price 59.39 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Hilook

  • Image Sensor2 MP CMOS image sensor
    Signal SystemPAL/NTSC
    Effective Pixels1920 (H) × 1080 (V)
    Min. Illumination0.005 Lux@(F1.2, AGC ON), 0 Lux with IR
    Shutter TimePAL: 1/25 s to 1/50, 000 s
    NTSC: 1/30 s to 1/50, 000 s
    Slow ShutterMax. 16 times
    Lens2.7 - 13.5 mm
    Horizontal Field of View102.4° to 31°
    Lens MountΦ14
    Day & NightIR cut filter
    Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
    SynchronizationInternal synchronization
    WDR120 dB
    Video Frame RatePAL: 1080p@25fps NTSC: 1080p@30fps
    AGCHigh/Medium/Low/Off
    D/N ModeAuto/Color/BW (Black and White)
    WDRSupport
    BLCSupport
    DWDRSupport
    LanguageEnglish
    FunctionsBrightness, Sharpness, DNR, Mirror, Smart IR
    Video Output1 HD analog output
    Switch ButtonTVI/AHD/CVI/CVBS
    Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
    Power Supply12 VDC ± 25%
    Power ConsumptionMax. 7.7 W
    Protection LevelIP66, IK10
    MaterialMetal
    IR RangeUp to 70 m
    DimensionsØ 143 mm × 106.7 mm(5.62"×4.19")
    WeightApprox. 671 g (1.48lb.)
