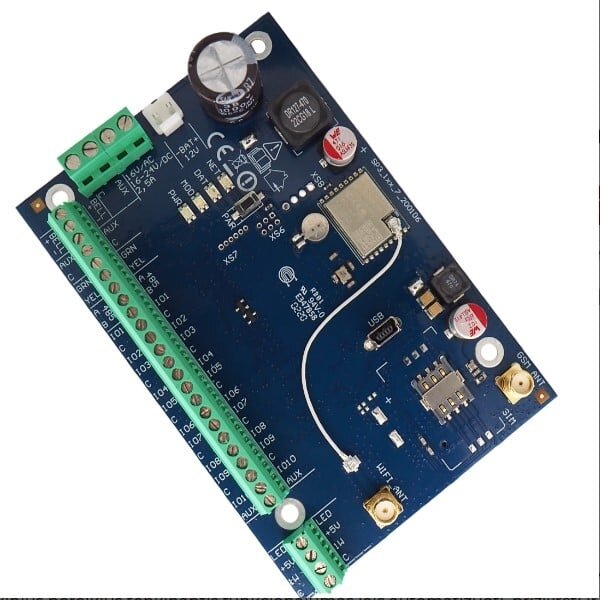

Trikdis FLEXi SP3_44E LAN GSM Security panel
ManufacturerTrikdis-
Conformity Grade 3, Low Voltage, RTTE, RoHS Partitions 8 Inputs 8, of NC, NO or EOL=2.2 kΩ type Expandable up to 32 with input expansion modules Zones 9 types (ON/OFF, Delay, Interior, Interior STAY, Instant, Instant STAY, 24 hours, Fire, Silent) including two-wire fire zone Number of system expanders Up to 16, including keypads and additional alarm transmitters PGM outputs 5, OC type (3×0.5A, 1x1A, 1×0.1A) Guard modes 4, ARM / STAY / STAY DELAY / OFF Zone bypass function Yes Number of control codes 1 Master, and up to 39 User codes, 1 Administrator, 1 Installer, and 1 Central Monitoring Station
Means of control Trikdis Protegus keypads or Paradox K32, K636, K10V keypads, mobile apps, phone call, SMS, iButton key or other device Temperature sensor support Yes GSM modem Quad-Band 850 / 900 / 1800 / 1900 MHz Communication with CMS Via GPRS (TCP/IP or UDP/IP) or with SMS messages Supported protocols TRIKDIS TRK Encoding format Contact ID with additional encoding algorithm SMS messaging to users SMS messages with pre-set customized text to up to 5 telephone numbers Calling to users Calling immediately after pre-set event to up to 2 telephone numbers Event log Yes, up to 2000 events Internal clock Yes MCI bus Yes, for an additional alarm transmitting device (G10, E10, T10 series) Module configuration Via USB port using program TrikdisConfig or via GPRS from CMS Power supply AC 230 V Current usage Up to 80 mA (stand-by) Up to 0.35 A (transmitting)
Operating temperature From -25 ºC to +50 ºC, when relative air humidity 80 % with 20 ºC Dimensions 200 x 210 x 80 mm Weight 2.20 kg
