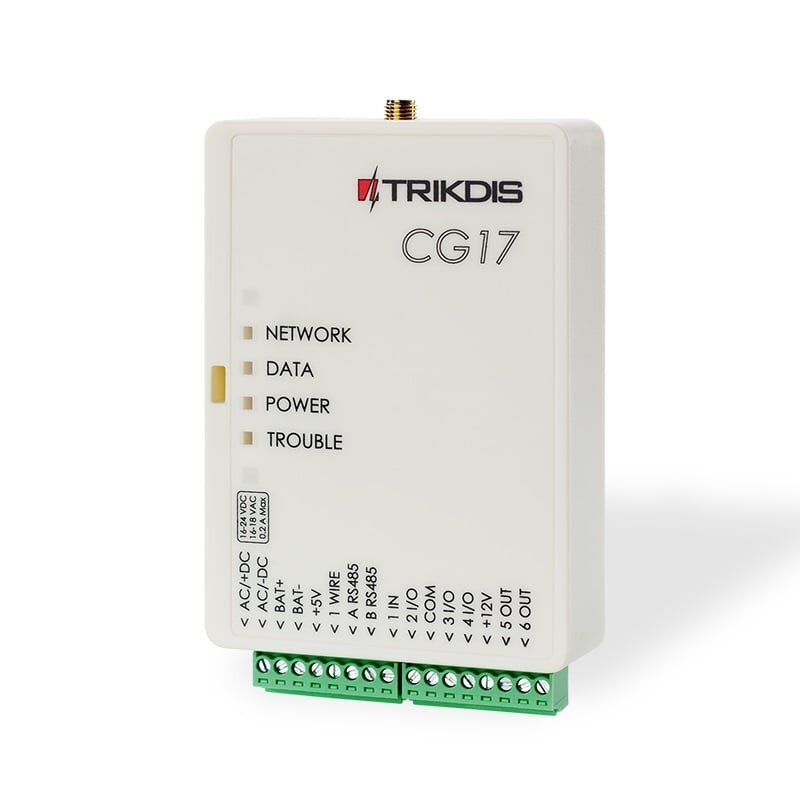

Trikdis disturbance controller central/controller CG17 with 4G modem
ManufacturerTrikdis-
- General
- ParametersDescription
- GSM modem frequencies850 / 900 / 1800 / 1900 MHz
- 3G modem frequencies800 / 850 / 900 / 1900 / 2100 MHz
- Power supply voltage16-24 VDC, 16-18 VAC
- Current consumption50 mA (stand-by),Up to 200 mA (transmitting)
- Communication with ARCEncrypted TCP/IP or UDP/IP, SMS, DC-09_2007, DC-09_2012
- Battery charging currentMax 500 mA
- Event encryption, keyTRK / 6 symbol key
- MemoryUp to 60 messages
- Inputs (max internal)Up to 4 selectable type input: NC, NO, EOL (10kΩ)
- Outputs (max internal)Up to 5 x OC type outputs, (1 OUT, 2 OUT, 3 OUT – 100 mA; 4 OUT, 5 OUT – 1 A)
- Partitions (Areas)8
- Event transmissionContact ID codes
- Encryption key6 symbols encryption key
- Operating environmentFrom -10 °C to 50 °C, with relative air humidity 80% when +20 °C
- Dimensions95x65x25 mm
- Weight0.10 kg
