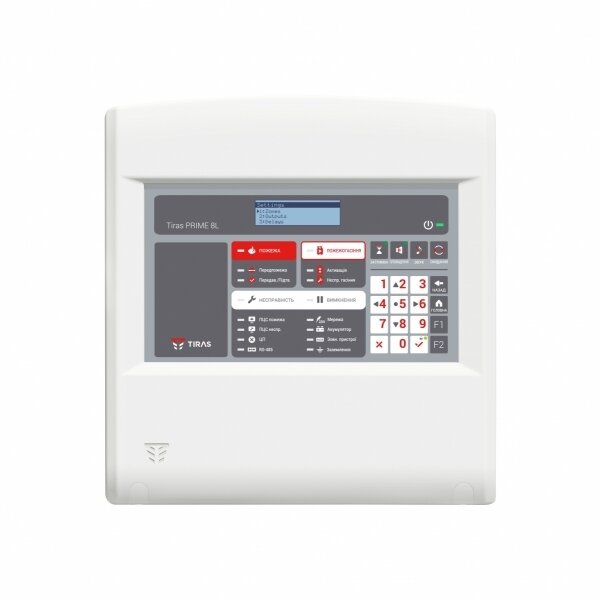

    Tiras PRIME 8L

    Inquire about this item
    Price 150.23 €
    Want another price? Suggest yours!
    In stock: 0 pcs

    • Zones
      • Number of zones: 8 base zones with the possibility to expand to 20 zones;
      • Zone voltage: 24 V (nominal);
      • Number of detectors in the zone: no more than 32 pcs;
      • Terminal resistor resistance: 6.8 kOhms or 3.9kOhms;
      • Additional resistor resistance (two-wire circuit): 1kOm;
      • Shunt resistor resistance (four-wire circuit): not supported.
    • Outputs/inputs
      • Output typequantity: 2 “alert” outputs, 2 programmable relay outputs, outputs "Fire" and "Fault".
    • Programing software
      • Output typequantity: 2 “alert” outputs, 2 programmable relay outputs, outputs "Fire" and "Fault".
    • Zone extension modules, extra outputs
      • Modules: M-Z(f), M-OUT4R
    • Power supply unit
      • Primary power source and current consumption: 220V (-15% + 10%), 50 ± 1 Hz, 0.27 A;
      • Maximum load current on outputs (for external devices): 2x24V x400 mA;
      • Maximum current on alert output: 2x3 A (switching);
      • Power backup – Type/capacity: 2 lead-acid batteries; 7 Ah, 12 V or 9 Ah, 12 V;
      • Minimal current consumption form the battery: 75 mA.
    • General characteristics
      • Operating temperature: from -5°C to + 40°C;
      • Dimensions: 350x370x96 mm;
      • Weight: 4 kg (without battery);
      • Housing material: plastic;
      • Enclosure protection rate: IP30;
      • Average lifetime: not less than 10 years.
    • Features of control panels:
      • Verification of A, B and C type in zones (according to EN 54-2);
      • Event Log – 1000 events;
      • Real Time Clock;
      • Night and day mode;
      • Scenarios of outputs;
      • USB-connection;
      • Smart charger;
      • Powerful pulse power supply.
