  •   Thermal camera Hikvision HM-TD2638T-10/G0/T1Y F1.0 (bi-spectrum, 384×288, 50 m IR, IP67)

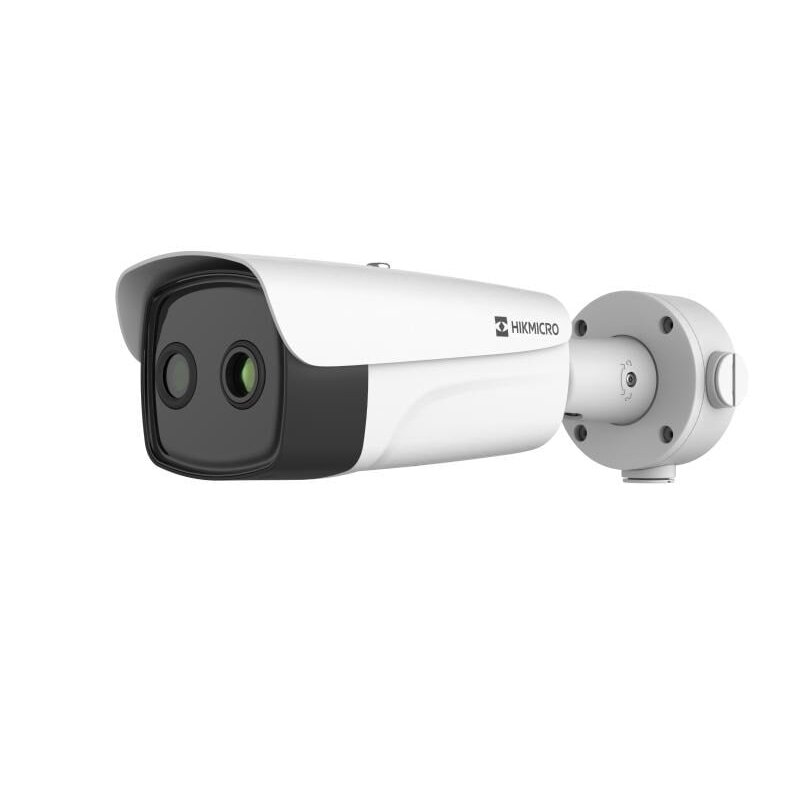

    Thermal camera Hikvision HM-TD2638T-10/G0/T1Y F1.0 (bi-spectrum, 384×288, 50 m IR, IP67)

    Inquire about this item
    Price 5374.92 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    • Approval
    • Anti-Corrosion ProtectionNEMA 4X (NEMA 250-2018)
    • EMCCE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7) KC (KSC9832: 2019; KSC9835: 2019)
    • EnvironmentCE-RoHS：2011/65/EU, WEEE: 2012/19/EU, Reach：Regulation(EC) No 1907/2006
    • ProtectionIP67: IEC 60529-2013 IK10: IEC 62262-2002
    • SafetyCB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017; BIS: IS 13252 (Part 1): 2010/ IEC 60950-1: 2005 LOA: SANS/IEC 60950-1
    • Detection Range Table/Smart Function Range
    • VCA Range for Humans130 m
    • VCA Range for Vehicles300 m
    • General
    • Dimensions376.1 mm × 119.1 mm × 118.1 mm (14.81" × 4.68" × 4.65")
    • Menu Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
    • Power Consumption24 VAC ± 25%: 0.33 A to 0.55 A, max. 12.1W 12 VDC ± 25%: 0.8 A to 1.33 A, max. 11.3W 24 VDC ± 25%: 0.28A to 0.75 A, max. 18W PoE (802.3af, class 3): 36 V to 57 V, 0.33 A to 0.21 A, max. 11.8W
    • Power Supply24 VAC ± 25%, 12 VDC ± 25%,24VDC two-core terminal block PoE (802.3af, class 3)
    • Protection LevelIP67 Standard TVS 4000V lightning protection, surge protection, voltage transient protection IK10-rated housing NEMA 4X anti-corrosion housing
    • Weight1.82 kg (4.01 lb)
    • Working Temperature/HumidityTemperature: -40°C to 70°C (-40°F to 158°F) Humidity: 95% or less
    • Illuminator
    • IR Distance Up to 50 m
    • IR Intensity and AngleAutomatically adjusted
    • Image Effect
    • Bi-spectrum Image FusionDisplay the details of optical channel on thermal channel
    • EISThermal channel supports EIS, exclusive with all smart functions except smoke detection
    • Picture in Picture Display partial image of thermal channel on the full screen of optical channel
    • Target ColorationYes. Supported in white hot and black hot mode.
    • Interface
    • Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
    • Alarm Input2, alarm input (0-5 VDC)
    • Alarm Output2-ch, relay outputs (alarm response actions configurable)
    • Analog Output1.0V [p-p]/75Ω, PAL/NTSC/BNC
    • Audio Input1, 3.5 mm Mic in/Line in interface Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
    • Audio Output Linear level, impedance: 600 Ω
    • Communication Interface1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface (half duplex)
    • Network
    • APIISAPI,ISUP, HIKVISION SDK, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G, Profile T, Profile M), OTAP
    • Client iVMS-4200, Hik-Connect
    • Network StorageMicroSD/SDHC/SDXC card (up to 512G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
    • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TP,Bonjour,SFTP,SRTP,TLS
    • SecurityUser authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
    • Simultaneous Live ViewUp to 20 channels
    • User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User
    • Optical Module
    • Day & Night ModeIR Cut Filter with Auto Switch
    • Field of View51.9° × 28° (H × V)
    • Focal Length6.4 mm
    • Image Sensor1/2.7" Progressive Scan CMOS
    • Min. Illumination 0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
    • Resolution 2688 × 1520
    • Shutter Speed1 s to 1/100,000 s
    • WDR120 dB
    • White BalanceMWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light
    • Smart Function
    • Fire DetectionDynamic fire detection, up to 10 fire points detectable
    • Smoke DetectionSupport smoke detection on optical channel
    • Smoking DetectionUp to 10 smoking points detected
    • Temperature AccuracyMax (± 2 °C, ±2 %)
    • Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
    • Temperature Range-20 °C to 650 °C (-4 °F to 1202 °F)
    • VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
    • Thermal Module
    • ApertureF1.0
    • Digital Zoom×2, ×4，×8
    • Field of View26.5° × 19.8° (H × V)
    • Focal Length9.7 mm
    • IFOV1.24 mrad
    • Image SensorVanadium Oxide Uncooled Focal Plane Arrays
    • Min. Focusing Distance1.5 m
    • NETD ≤ 20 mK (@25° C,F# = 1.0)
    • Pixel Pitch12 μm
    • Resolution384 x 288
    • Video and Audio
    • Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
    • Main Stream Optical channel 50 HZ: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 HZ: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Thermal channel 25 fps (1280×720P， 704×576， 352×288， 384×288)
    • Sub-stream Optical channel 50 HZ: 25 fps (704 × 576, 352 × 288) 60 HZ: 30 fps (704 × 480, 352 × 240) Thermal channel 25 fps (704 × 576, 352 × 288, 384 × 288)
    • Video CompressionMain Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG
    • Video and Image
    • Color Palettes17 types (White hot, Black hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice fire, Rain, Red hot, Green hot, Dark blue, Winter, Summer)
