  •   Teltonika INDUSTRIAL Router RUT300

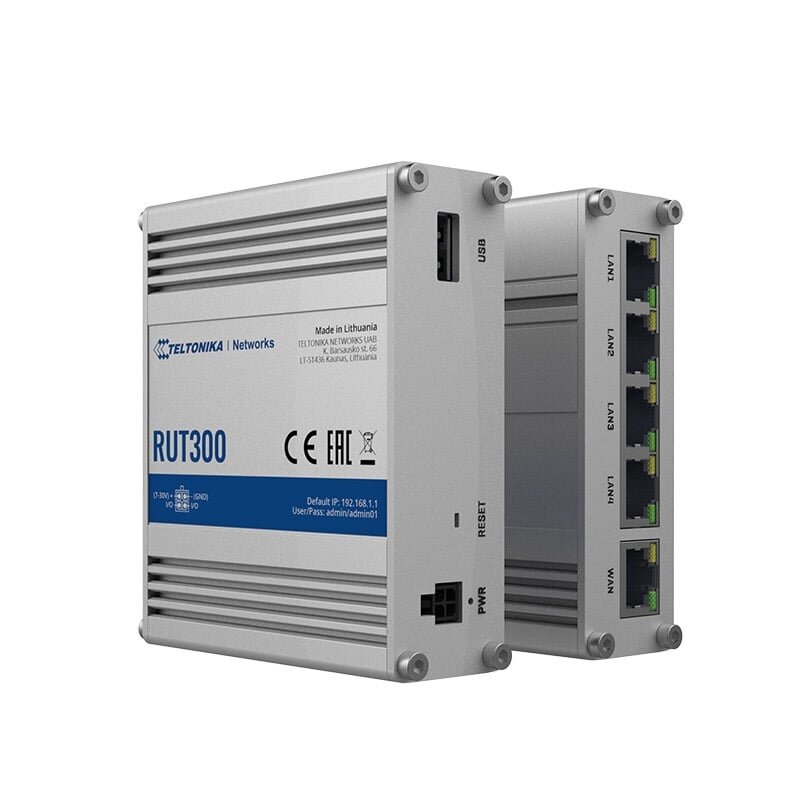

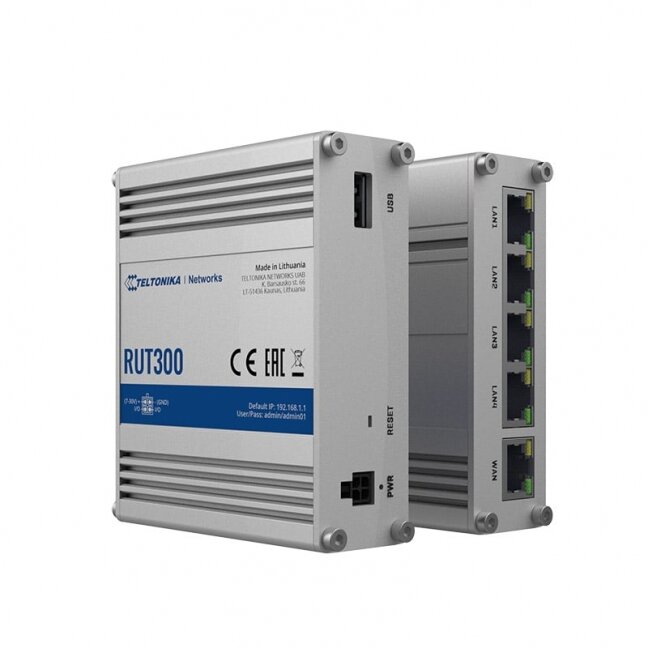

    Teltonika INDUSTRIAL Router RUT300

    Inquire about this item
    Price 82.84 €
    Want another price? Suggest yours!
    In stock.

    In stock: 5 pcs
    Manufacturer
    Teltonika

    • Ethernet
    • WAN1 x WAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX crossover
    • LAN4 x LAN ports (can be configured as secondary WAN ports), 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX crossover
    • Network
    • RoutingStatic routes, Dynamic routes
    • Network protocolsTCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, PPPoE, UPNP, SSH, DHCP, Telnet client, SNMP, MQTT, Wake on LAN (WOL)
    • VoIP passthrough supportH.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
    • Connection monitoringPing Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection
    • FirewallPort forwards, traffic rules, NAT rules, custom rules
    • DHCPStatic and dynamic IP allocation, DHCP Relay
    • QoS / Smart Queue Management (SQM)Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
    • DDNSSupported >25 service providers, others can be configured manually
    • Network backupWired WAN options, each of which can be used as an automatic Failover
    • Load balancingBalance Internet traffic over multiple WAN connections
    • SSHFSPossibility to mount remote file system via SSH protocol
    • Security
    • AuthenticationPre-shared key, digital certificates, X.509 certificates
    • FirewallPre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
    • Attack preventionDDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
    • VLANPort and tag based VLAN separation
    • WEB filterBlacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
    • Access controlFlexible access control of TCP, UDP, ICMP packets, MAC address filter
    • VPN
    • OpenVPNMultiple clients and a server can run simultaneously, 12 encryption methods
    • OpenVPN EncryptionDES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
    • IPSecIKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256)
    • GREGRE tunnel
    • PPTP, L2TPClient/Server instances can run simultaneously, L2TPv3 support
    • StunnelProxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
    • DMVPNMethod of building scalable IPsec VPNs
    • SSTPSSTP client instance support
    • ZeroTierZeroTier VPN client support
    • WireGuardWireGuard VPN client and server support
    • WEB UIHTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
    • FOTAFirmware update from server, automatic notification
    • SSHSSH (v1, v2)
    • TR-069OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
    • MQTTMQTT Broker, MQTT publisher
    • SNMPSNMP (v1, v2, v3), SNMP trap
    • JSON-RPCManagement API over HTTP/HTTPS
    • MODBUSMODBUS TCP status/control
    • RMSTeltonika Remote Management System (RMS)
    • System Characteristics
    • CPUQCA9531, MIPS 24kc, 650 MHz
    • RAM64 MB, DDR2
    • FLASH storage16 MB, SPI Flash
    • Firmware / Configuration
    • WEB UIUpdate FW from file, check FW on server, configuration profiles, configuration backup
    • FOTAUpdate FW/configuration from server
    • RMSUpdate FW/configuration for multiple devices at once
    • Keep settingsUpdate FW without losing current configuration
    • USB
    • Data rateUSB 2.0
    • ApplicationsSamba share, USB-to-serial
    • External devicesPossibility to connect external HDD, flash drive, printer
    • Storage formatsFAT, FAT32, NTFS
    • Input/Output
    • Configurable I/O2 x Configurable digital Inputs/Outputs. Digital input 0 - 5 V detected as logic low, 8 - 30 V detected as logic high. Open collector output, max output 30 V, 300 mA
    • EventsEmail, RMS
    • I/O jugglerAllows to set certain I/O conditions to initiate event
    • Power
    • Connector4 pin industrial DC power socket
    • Input voltage range7 - 30 VDC, reverse polarity protection, voltage surge/transient protection
    • PoE (passive)Passive PoE. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards
    • Power consumptionIdle: 1.3 W, Max: 3 W
    • Physical interfaces
    • Ethernet5 x RJ45 ports, 10/100 Mbps
    • I/Os2 x Configurable digital Inputs/Outputs on 4 pin power connector
    • Status LEDs5 x ETH status, 1 x Power
    • Power1 x 4 pin DC connector
    • USB1 x USB A port for external devices
    • ResetReboot/User default reset/Factory reset button
    • Physical Specification
    • Casing materialAluminium housing with DIN rail mounting option
    • Dimensions (W x H x D)100 x 30 x 85 mm
    • Weight229 g
    • Mounting optionsDIN rail, flat surface placement
    • Operating Environment
    • Operating temperature-40 C to 75 C
    • Operating humidity10 % to 90 % non-condensing
