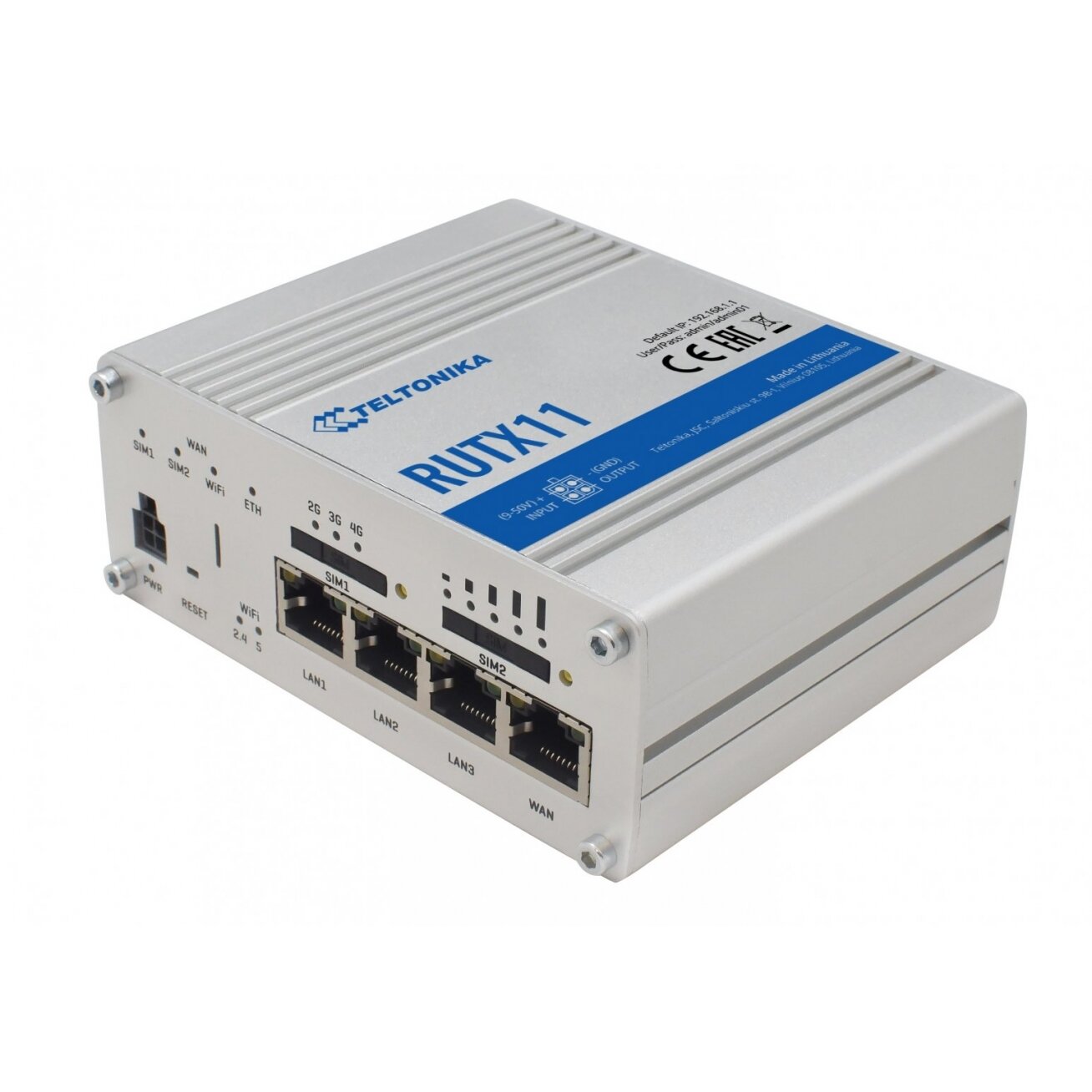

    TELTONIKA industrial router LTE RUTX11

    Inquire about this item
    Price 381.37 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Teltonika

  • MOBILE
    Mobile module 4G (LTE) – Cat 6 up to 300 Mbps, 3G – Up to 42 Mbps
    SIM switch 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail
    Status Signal strength, SINR, RSRP, RSRQ, Bytes sent/received, connected band, carrier aggregation, IMSI, ICCID
    SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET, Email to SMS, SMS to Email, SMS to HTTP, SMS to SMS, SMS auto reply
    USSD Supports sending and reading Unstructured Supplementary Service Data messages
    Black/White list Operator black/white list
    Multiple PDN Possibility to use different PDNs for multiple network access and services
    Band management Band lock, Used band status display
    APN Auto APN
    Bridge mode Direct connection (bridge) between mobile ISP and device on LAN
    WIRELESS
    Wireless mode 802.11 b/g/n/ac (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
    WiFi security WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation
    ESSID ESSID stealth mode
    WiFi users up to 150 simultaneous connections
    Wireless Hotspot Captive portal (Hotspot), internal/external Radius server, built in customizable landing page
    ETHERNET
    WAN 1 x WAN port (can be configured as LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
    LAN 3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
    BLUETOOTH
    Bluetooth 4.0 Bluetooth low energy (LE) for short range communication
    INPUT/OUTPUT
    Input 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
    Output 1 x Digital Output, Open collector output, max output 30 V, 300 mA
    Events SMS, Email, RMS
    POWER
    Connector 4 pin industrial DC power socket
    Input voltage range 9 – 50 VDC, reverse polarity protection, voltage surge/transient protection
    PoE (passive) Passive PoE. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards
    Power consumption 16 W Max
    PHYSICAL SPECIFICATION
    Casing material Aluminium housing with DIN rail mounting option
    Dimensions (W x H x D) 115 x 44.2 x 95.1 mm
    Weight 456 g
    Mounting options DIN rail, flat surface placement
    OPERATING ENVIRONMENT
    Operating temperature -40 C to 75 C
    Operating humidity 10 % to 90 % non-condensing
    Ingress Protection Rating IP30
