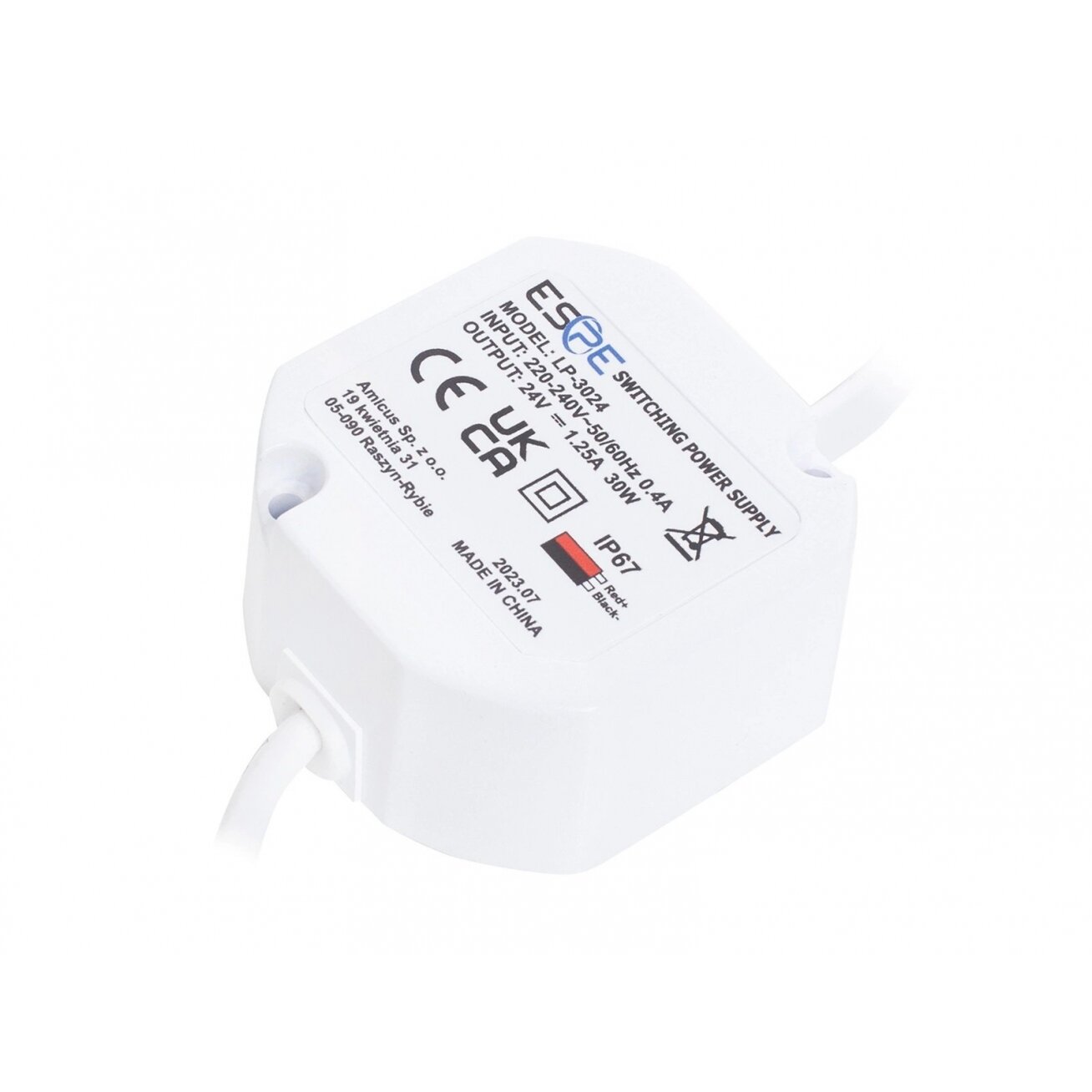

Switching power supply ESPE LP-3024 (30W, 1.25A/24V, sealed IP67, 50x47x25)
-
Switching power supply ESPE LP-3024 (30W, 1.25A/24V, sealed IP67, 50x47x25)
-
- General
- Product NameLP-3024
- TypeHigh-efficiency LED power supply
- Rated Input Voltage220–240 VAC
- Input Voltage Range180–240 VAC
- Mains Frequency Range47–63 Hz
- AC Current (Max.)0.4 A at 100 VAC and full load
- Inrush Current (Max.)80 A
- No Load Power Consumption0.1 W
- Input Leakage Current (Max.)0.25 mA at 264 VAC
- Power Factor CorrectionNo
- Rated Output Voltage24 V
- Rated Output Power30 W
- Rated Output Current1.25 A
- Energy EfficiencyOver 90% at 230 VAC
- Line Regulation±2%
- Load Regulation±2%
- Ripples and Noise120 mVp-p at 100 VAC
- Minimal Output Current RequiredNo
- Hold Up Time (Min.)5 ms at 100 VAC and full load
- DC Voltage Rise Time (Max.)40 ms at 100 VAC and full load
- Turn On Delay Time (Max.)3 s at 100 VAC and full load
- Working Temperature Range0 to +50ºC
- Working Humidity Range25% to 75% RH at 40ºC
- Storage and Transportation Temperature Range–10ºC to +80ºC
- Cooling MethodFree air circulation
- Output Short-Circuit ProtectionYes
- Output Overcurrent ProtectionYes
- Output Overvoltage ProtectionYes
- Automatic Recovery on Fault RemovalYes
- Withstand Isolation Voltage (Min.)3 kVAC (Input to Output, 5 mA, 1 min)
- Isolation Resistance (Min.)100 MΩ at 500 VDC
- Isolation ClassClass 2
- Safety ComplianceEN62368-1
- EMC ComplianceEN55022 Class B
- CertificationsCE, UKCA, RoHS
- Enclosure TypeWhite ABS plastic, IP67
- Dimensions50 × 47 × 25 mm (L × W × H)
- Weight100 g
- Input Cable Length24 cm (0.75 mm²)
- Output Cable Length24 cm (0.32 mm²)
- Single Package Size85 × 52 × 75 mm
- Bulk Packing450 × 285 × 320 mm (100 items)
- MTBF50,000 h at 25ºC
- EAN5904139610091
