  •   Switched-mode power supply 24V 1.67A 40.8W IP67, dimmable

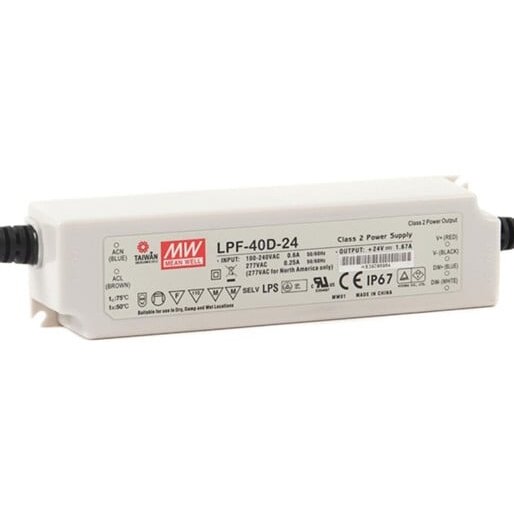

    Switched-mode power supply 24V 1.67A 40.8W IP67, dimmable

    Inquire about this item
    Price 42.80 €
    Want another price? Suggest yours!
    In stock.
    In stock: 20 pcs
    Manufacturer
    Mean Well
    • General
    • ModelLPF-40D-24
    • Output Voltage24V DC
    • Rated Current1.67A
    • Rated Power40.08W
    • Constant Current Region14.4 – 24V
    • Current Tolerance±5%
    • Current Ripple≤5% @ rated current
    • Voltage Range90 – 305 VAC / 127 – 431 VDC
    • Frequency Range47 – 63 Hz
    • Efficiency (Typ.)87%
    • Power Factor≥0.97 @ 115 VAC, ≥0.95 @ 230 VAC, ≥0.92 @ 277 VAC (full load)
    • THD (Total Harmonic Distortion)<20% @ ≥60% load (115/230V), ≥75% (277V)
    • AC Current (Typ.)0.6A @ 115 VAC / 0.3A @ 230 VAC / 0.25A @ 277 VAC
    • Inrush CurrentCold start 50A @ 230 VAC (twidth = 210µs)
    • Max. No. of PSUs on 16A Breaker12 units (B type), 20 units (C type) @ 230VAC
    • Dimming Function3-in-1 (0–10VDC, 10V PWM, resistance)
    • Dimming Source Current100µA (typ.)
    • ProtectionsShort circuit, over current, over voltage (28–35V), over temperature (auto-recovery)
    • Setup, Rise Time1000ms, 80ms @ 115 VAC; 500ms, 80ms @ 230 VAC
    • Hold-up Time16ms @ 115/230 VAC
    • Operating Temperature (Tcase)–40°C to +80°C
    • Max. Case Temperature+80°C
    • Storage Temperature / Humidity–40°C to +80°C / 10 – 95% RH
    • Operating Humidity20 – 95% RH (non-condensing)
    • Isolation VoltageI/P–O/P: 3.75kVAC
    • Insulation Resistance≥100 MΩ @ 500VDC, 25°C, 70% RH
    • EMC EmissionEN55015, EN61000-3-2 Class C, EN61000-3-3, GB/T17743, GB17625.1, EAC
    • EMC ImmunityEN61000-4-2~6,8,11; EN61547 (light industry level), EAC
    • Safety StandardsUL8750, CSA C22.2 No.250.0-08, ENEC EN61347-1/-2-13, EN62384, GB19510.1/.14, IP67, EAC
    • EnclosurePlastic housing, Class II, IP67 rated (indoor/outdoor use)
    • CoolingMethod Free air convection (fanless)
    • Dimensions162.5 × 43 × 32 mm (L × W × H)
    • Weight0.45 kg; Packing: 32 pcs / 15.4 kg / 0.93 CUFT
    • Lifetime (MTBF)>50,000 hours @ Tcase ≤ 70°C
    • ApplicationsLED panel lighting, downlights, decorative and tunnel lighting, moving signs
    • Warranty5 years
