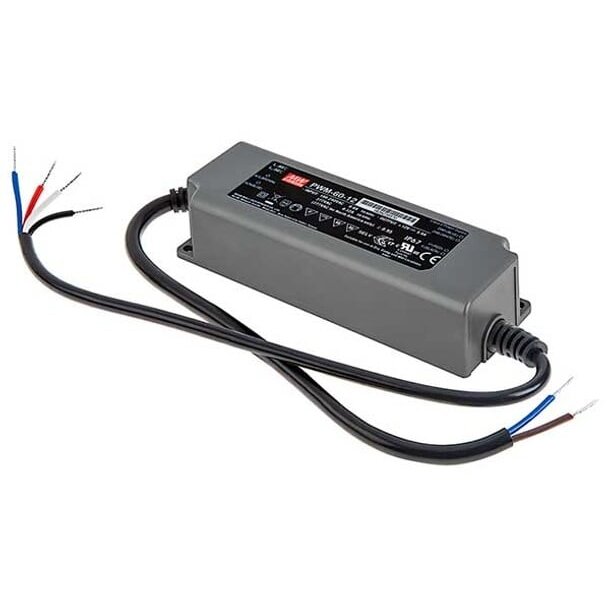

Switched-mode power supply 12V 6.5A MEAN WELL
-
Switched-mode power supply 12V 6.5A MEAN WELL
-
- General
- ModelPWM-60-12
- Output Voltage12V DC
- Rated Current5A
- Rated Power60W
- Output TypeConstant voltage PWM style output
- Dimming Method3-in-1 (0–10V DC, 10V PWM signal, or resistance)
- PWM Frequency1.47 kHz (Blank/DA types), 2.5 kHz (DA2 type)
- Input Voltage Range90 – 305 VAC / 127 – 431 VDC
- Input Frequency47 – 63 Hz
- Efficiency (Typ.)86%
- AC Current0.4A @ 230 VAC
- Inrush CurrentCold start 50A @ 230 VAC
- Leakage Current<0.25 mA @ 277 VAC
- ProtectionsOverload, overvoltage, overtemperature, short circuit
- Operating TemperatureCase temperature: –40°C to +85°C
- Operating Humidity20 – 95% RH (non-condensing)
- Storage Conditions–40 to +80°C, 10 – 95% RH
- IP RatingIP67 (all models)
- Isolation VoltageI/P–O/P: 3.75kVAC; I/P–DA: 1.5kVAC; O/P–DA: 1.5kVAC
- Insulation Resistance100 MΩ @ 500 VDC, 25°C, 70% RH
- Safety StandardsUL8750, UL879 (only 12V/24V Blank), CSA C22.2 No. 250.13-12, EN61347-1/-2-13, EN62384, IS 15885, EAC, GB19510, IP67
- EMC ComplianceEN55015, EN61000-3-2, EN61000-3-3, EN61547, EN61000-4 series
- DALI Compliance (DA/DA2 types)IEC62386-101, 102, 207, 251; Device type DT6
- Lifetime>50,000 hours @ Tcase ≤ 75°C
- Dimensions150 × 53 × 35 mm
- Weight0.49 kg; Packing: 30 pcs / 15.7 kg / 1.0 CUFT
- ApplicationsLED strip lighting, indoor LED lighting, decorative lighting, architectural lighting, industrial lighting
- Warranty5 years
- NotesDo not connect DIM– to Vo–; install indoors or in covered outdoor areas; may be submerged for up to 30 min
