  •   Switch 18-port HiLook NS-0518P-125

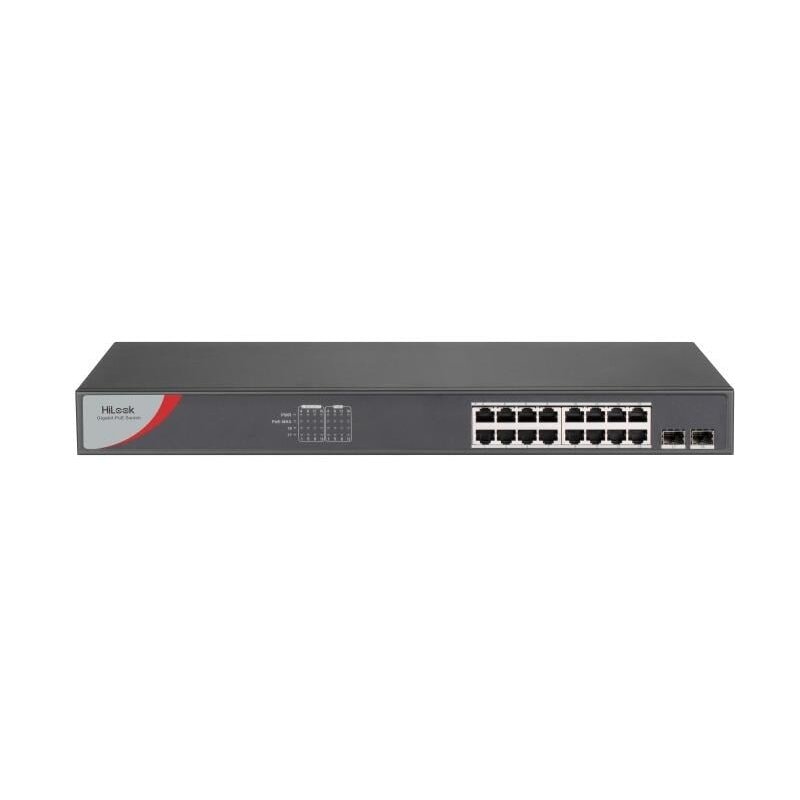

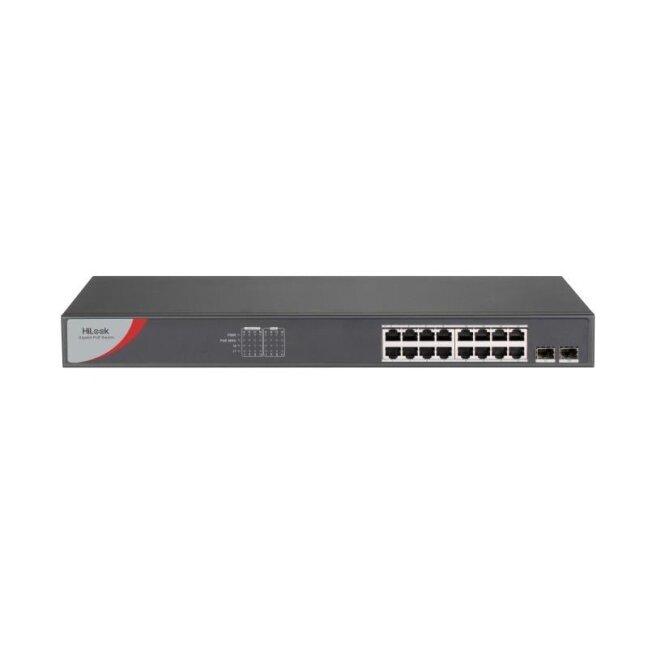

    Switch 18-port HiLook NS-0518P-125

    Inquire about this item
    Price 142.99 €
    Want another price? Suggest yours!
    In stock.

    In stock: 5 pcs
    Manufacturer
    Hilook
    • Approval
    • ChemistryCE-RoHS (201165EU); WEEE (201219EU); Reach (Regulation (EC) No.19072006)
    • EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
    • SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
    • General
    • Dimensions (W × H × D)440.00 mm × 44.00 mm × 220.80 mm (17.30'' × 1.70'' × 8.70'')
    • Gross Weight3.57 kg (7.87 lb)
    • Installation ModeRack (equipped with mounting ears)
    • Max. Power Consumption150 W
    • Net Weight2.50 kg (5.51 lb)
    • Operating Humidity5% to 95% (no condensation)
    • Operating Temperature0 °C to 45 °C (32 °F to 113 °F)
    • Power Consumption in Idle25 W
    • Power Supply100-240 VAC, 50/60 Hz, Max. 2.5 A;
    • Relative Humidity5% to 95% (no condensation)
    • ShellMetal material
    • Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
    • Surge Protection6 KV
    • Network Parameters
    • Internal Cache4.1 Mbits
    • MAC Address Table8 K
    • Packet Forwarding Rate26.79 Mpps
    • Ports16 × Gigabit PoE port,2 × Gigabit fiber optical port
    • Switching Capacity36 Gbps
    • PoE Power Supply
    • Max. Port Power30 W
    • PoE PortPoE: Ports 1 to 16
    • PoE Power Budget125 W
    • PoE Power PinEnd-span: 1/2(+), 3/6(-)
    • PoE StandardIEEE 802.3af;IEEE 802.3at;
