  •   Standing speaker Hikvision DS-QAZ1460G1 (IP, 60W, 85dB, 8 Om)

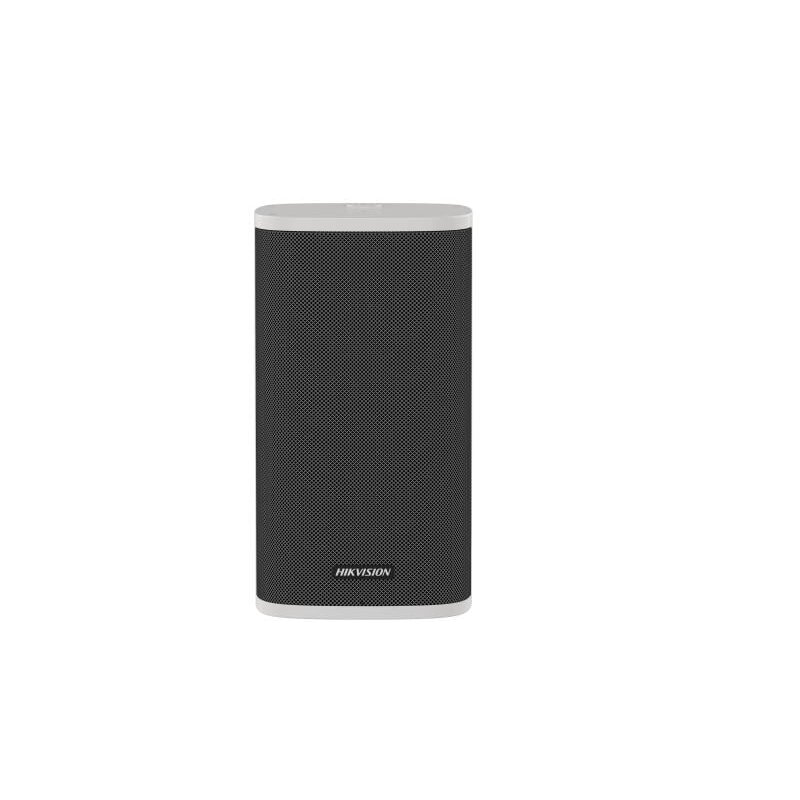

    Standing speaker Hikvision DS-QAZ1460G1 (IP, 60W, 85dB, 8 Om)

    Inquire about this item
    Price 516.92 €
    Want another price? Suggest yours!
    In stock.
    In stock: 5 pcs
    Manufacturer
    Hikvision

    • Microphone
    • Typeelectret
    • Amount2
    • Frequency Response100 Hz to 20 kHz
    • Sensitivity-42 dBV/Pa
    • Sampling Rate48 kHz
    • Quantization Bits16 bit
    • Speaker
    • Rated Power60 W
    • Impedance8 Ω
    • Max. Acoustic Pressure97.5 dBSPL
    • Sensitivity(1 m, 1 W)91 dB
    • DirectionAll directions
    • Frequency Response100 Hz to 20 kHz
    • SNR85 dB
    • Function
    • Audio AlgorithmAEC、AGC、ANS、DRC
    • Audio Bit RateG.711ulaw(64 Kbps)/G.711alaw(64 Kbps)/MP3(128 Kbps)
    • Audio File FormatMP3, WAV
    • NTP TimingSupport
    • BroadcastRegular broadcast, live broadcast, emergency broadcast
    • Two-Way AudioSupport
    • Speech SynthesisEnglish
    • Network
    • Network ProtocolIPv4, HTTP, HTTPS , SIP, SSL/TLS , DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH
    • Interface Protocol (API)ISAPI, ISUP, SIP, RTP
    • Communication
    • Communication MethodSupport wired network communication
    • Interface
    • Ethernet InterfaceRJ45 10 M/100 M Adaptive Ethernet port × 1
    • Local StorageBuilt-in 4 GB EMMC (Audio file storage is 1 GB.)
    • APIISAPI, ISUP, SIP
    • AlarmAlarm input × 2
    • Audio InLine in × 1, phoenix terminal
    • LED Indicator

      Green light on: normal

      Green light flash: intercom in progress

      Red light on: start or network disconnection

      Red light flash: upgrading

    • ResetSupport
    • General
    • Power24 VDC/1.5A
    • MaterialMetal
    • Operating Temperature-40 °C to 60 °C(-40 °F to 140 °F)
    • Operating Humidity＜90% (No condensation)
    • Language5 languages: English, French, Spanish, German, Italian
    • Dimension160 mm × 160 mm × 292.8 mm(6.3" × 6.3" × 11.53")
    • Package Dimension560 mm × 265 mm × 250 mm(22" × 10.4" × 9.8")
    • WeightApprox. 0.4 kg (0.88 lb.)
    • ColorWhite
    • With Package WeightApprox. 0.5 kg (1.1 lb.)
    • Packing List

      Device × 1

      Adapter × 1

      Screw pack × 1

      Support × 1

      L-shaped wrench × 1

      Regulatory Compliance and Safety Information × 1

    • Approval
    • ProtectionIP66: IEC 60529-2013
    • EMCCE-EMC: EN 55032:2015+A11:2020+A1:2020, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019+A2:2021, EN 55035:2017+A11:2020 RCM: AS/NZS CISPR 32: 2015 IC: ICES-003: Issue 7
    • Safety

      CB: IEC 62368-1:2014

      CE-LVD: EN 62368-1:2014/A11:2017

    • Environment

      CE-RoHS: 2011/65/EU

      WEEE: 2012/19/EU

      Reach: Regulation (EC) No 1907/2006
