  •   SP monitor Hikvision DS-KH7300EY-WTE2 (white)

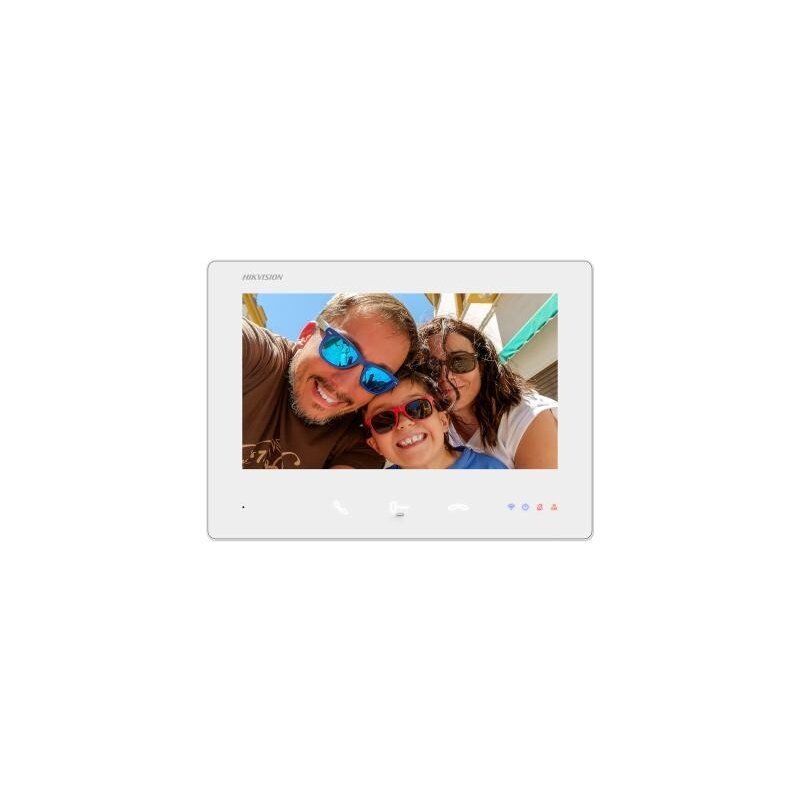

    SP monitor Hikvision DS-KH7300EY-WTE2 (white)

    Inquire about this item
    Price 300.96 €
    Want another price? Suggest yours!
    In stock.
    In stock: 5 pcs
    Manufacturer
    Hikvision

    • System parameters
    • Operating systemEmbedded Linux operation system
    • ROM32 MB
    • RAM128 MB
    • CPUEmbedded processor
    • Display parameters
    • Screen size7-inch
    • Operation methodCapacitive touch screen
    • TypeColorful TFT screen
    • Resolution1024 × 600
    • Video parameters
    • Lens/
    • FOV/
    • WDR/
    • Resolution/
    • Focal length/
    • Audio parameters
    • Audio compression standardG.711 U G.711 A
    • Audio input1 Built-in omnidirectional microphone
    • Audio output1 Buit-in loudspeaker
    • Audio compression bitrate64 Kps
    • Audio qualityNoise suppression and echo cancellation
    • Volume adjustmentAdjustable
    • Capacity
    • Event capacity200 captured pictures (with TF card)
    • Linked indoor extensions capacity3
    • Network parameters
    • Communication protocolTCP/IP, RTSP
    • Wi-Fi standard2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
    • 3G/4G standard/
    • Zigbee/
    • Device interfaces
    • Alarm input1
    • TAMPER/
    • RS-485/
    • USB/
    • TF cardMax to 128 G, SD 2.0 or lower version
    • Alarm output/
    • DIP switch5 decimal DIP switch and 4 binary DIP switch
    • Power supply input48V，powered by DS-KAD7060EY or DS-KAD7061EY
    • Two-wire IP interface2, 1 for input 1 for output
    • General
    • Button 3 Touch buttons (Answer, Unlock, Hang up)+1 Physical button（Reset）
    • InstallationSurface mounting
    • Indicator4（Wifi、Power、Mute、In use）
    • Protective level/
    • Working temperature-10 °C to 50 °C (14 °F to 122 °F)
    • Working humidity10% to 90% (no-condensing)
    • Dimensions190.2 mm × 138.2 mm × 20 mm (7.5" × 5.4" × 0.8")
    • Battery/
    • Power supply48V，Powered by DS-KAD7060EY or DS-KAD7061EY
    • Application environmentIndoor
    • Power consumption≤ 5W (stand by ≤ 1.2 W)
    • LanguageEnglish, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch , Spanish, Romanian, Estonian, Croatian, Slovenian, Serbian, Ukrainian, Portuguese
