  •   Smoke generator Concept Sentinel S70

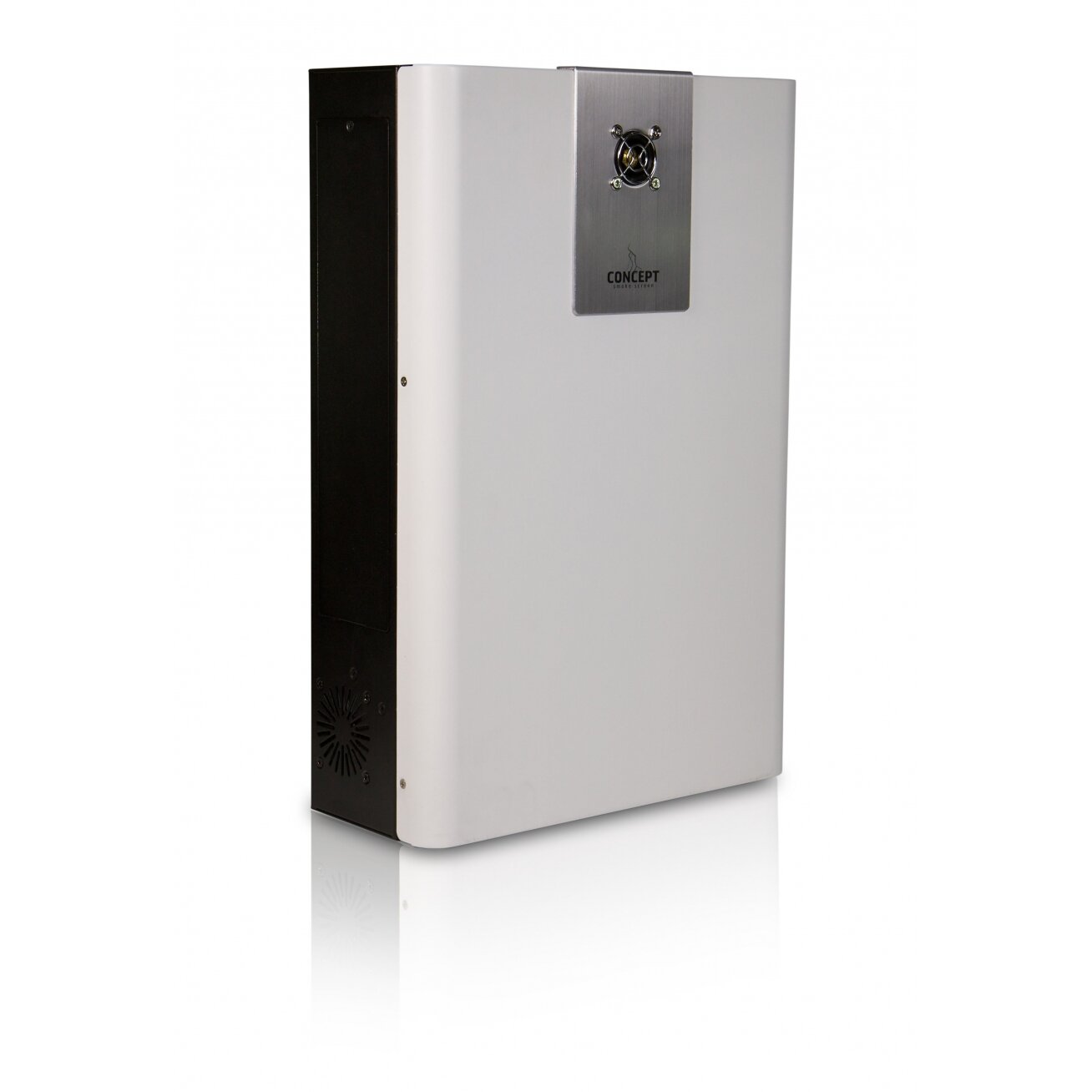

    Smoke generator Concept Sentinel S70

    Inquire about this item
    Price 1393.51 €
    Want another price? Suggest yours!
    In stock: 0 pcs

  • SpecificationS35S55S70S100
    First burst lengthNormal - 360 seconds Turbo - 50 secondsNormal - 360 seconds Turbo - 90 secondsNormal - 82 seconds Turbo- 56 secondsNormal - 360 seconds Turbo - 135 seconds
    Fog generation settings5 seconds to 6 minutes5 seconds to 6 minutes5 seconds to 6 minutes5 seconds to 6 minutes
    Performance by volume*400m3 per minute650m3 per minute800m3 per minute1400m3 per minute
    ApplicationSmall office / shop / home / ATMMid-sized office / shop / ATMMid-sized shop / ATMLarge retail / warehouse
    Fluid container500mlup to 5 litreup to 5 litreup to 5 litre
    Fluid measurementMicroprocessorLow and empty sensor / MicroprocessorLow and empty sensor / MicroprocessorLow and empty sensor / Microprocessor
    Number of 60 second activations for a standard fitted fluid volumeup to 4up to 5up to 5up to 5
    Retrigger modeYesYesYesYes
    Mains connection110 / 230V110 / 230V110 / 230V110 / 230V
    Heater power1.5kW (single)1.6kW (single)2 x 0.8kW (twin)2 x 0.8kW (twin)
    Standby consumption in normal mode (average)60W65W70W100W
    Standby consumption in energy saving mode (average)50W55W60W80W
    Heating time from cold6 minutes10 minutes14 minutes20 minute
    Maximum Re-heating time after first activation100 seconds125 seconds57 seconds2 minutes 35 seconds
    Operating temperature min/max-10 to +50°C-10 to +50°C-10 to +50°C-10 to +50°C
    Inputs4444
    Outputs7777
    ProgrammingLCD programming interfaceLCD programming interfaceLCD programming interfaceLCD programming interface
    Off mains facilityYesYesYesYes
    Off mains fault monitoringYesYesYesYes
    Off mains capability30 minutes60 minutes70 minutes90 minutes
    IndicationsVisual, audible, analogue and digitalVisual, audible, analogue and digitalVisual, audible, analogue and digitalVisual, audible, analogue and digital
    External status indicatorYesYesYesYes
    On board data logYes - 1,000 eventsYes - 1,000 eventsYes - 1,000 eventsYes - 1,000 events
    Dimensions34(h) x 14(d) x 23(w) cm36.8(h) x 13.8(d) x 23.1(w) cm47(h) x 13(d) x 31(w) cm47(h) x 13(d) x 31(w) cm
    Install weight (pre-install / total)10kg / 11kg12kg / 14.5kg14kg / 19kg20kg / 23kg
    Interchangeable nozzles / anti-raidYesYesYesYes
    EN CertifiedYesYesYesYes
