  •   Smoke detector Apollo ORBIS MARINE (ORB-OP-42001-MAR)

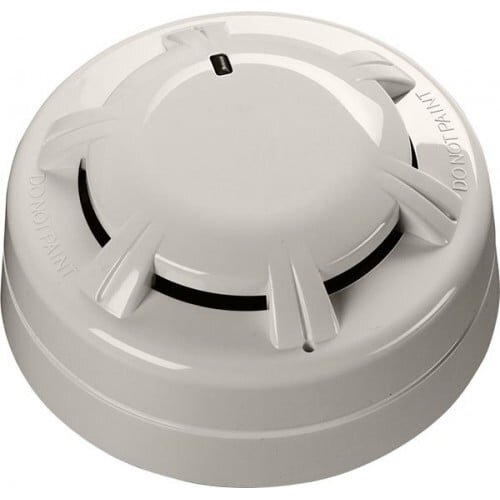

    Smoke detector Apollo ORBIS MARINE (ORB-OP-42001-MAR)

    Inquire about this item
    Price 53.35 €
    Want another price? Suggest yours!
    In stock.
    In stock: 20 pcs
    Manufacturer
    Apollo

  • General
    Applications
    • Bedrooms
    • Escape routes
    • Marine
    Fire TypeSlow burning, smouldering fires
    Warranty10 year
    Performance
    Chamber typeChevron
    Electrical
    Maximum power-up time<20 seconds
    Quiescent current95μA
    Quiescent current tested at24V dc
    Sampling frequencyOnce every 4 seconds
    PolarityL1 & L2 are polarity sensitive
    Minimum 'detector active' voltage6V
    Holding voltage (min)5V
    Holding voltage (max)33V
    Holding voltage5 to 33V
    Minimum voltage to light alarm LED5V
    Alarm reset voltage<1V
    Alarm reset time1s
    Alarm load600Ω
    Environmental
    Humidity (min)0% RH
    Humidity (max)98% RH
    Humidity Noteno condensation or icing
    Humidity0% to 98% (no condensation or icing)
    Operating temperature (min)-40°C
    Operating temperature (max)70°C
    Operating temperature-40 to 70°C
    IP rating ValueIP23D
    Storage temperature (min)-40°C
    Storage temperature (max)70°C
    Storage temperature-40 to 70°C
    Conformance
    Approvals
    • BV
    • LR
    • DNV.GL
    • CCS
    • KRS
    • ABS
    • MED
    Mechanical
    Weight75g
    ColourWhite
    Materials housingPolycarbonate
    Product length31mm
    Product diameter97mm
    Detection principlePhoto-electric light scattering.
    Sensor configurationChamber with surface-mount infrared emmiter and prism. Solid state integrated photo-diode and amplifier.
