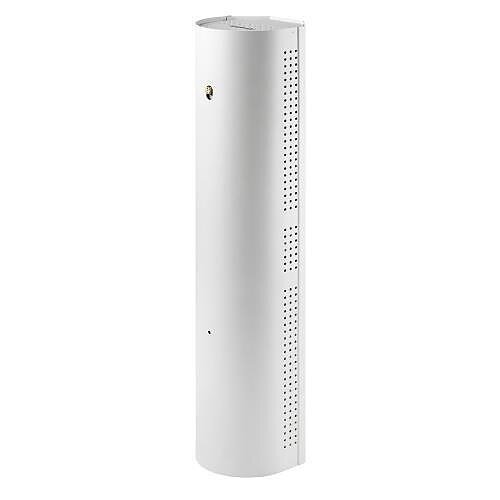

  •   Smoke cannon Protect Xtratus Flex White 90010015 (white)

    Smoke cannon Protect Xtratus Flex White 90010015 (white)

    Inquire about this item
    Price 1310.67 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    • General
    • ModelPROTECT Xtratus Flex®
    • Fog performance250 m³ in 16 sec; flexible modes: 2 shots (16 sec), 3 shots (11 sec), 4 shots (7 sec) per fluid container
    • Fluid capacity0.4 l fluid container (not included), supports up to 4 discharges
    • Fluid measurementDischarge count-based monitoring (requires reset after final discharge by installer)
    • Power consumption1000 W
    • Mains connection230V, 50 Hz
    • Standby consumption60 W (after heating), 5–10 W (heating off)
    • Heating time8 min from cold
    • Re-heating time0–5 min after discharge
    • Operating temperature5°C to 80°C
    • Inputs/OutputsInput: 3 signals (arming, trigger 1, trigger 2), Output: 2 signals
    • Verification output9V DC output for PIR sensor
    • ConfigurationOn/off dipswitches for signal and heating settings
    • Battery backup9V alkaline battery for electronics only, 17 min power backup after failure
    • Status indicatorsInternal and external indicators, optical, audible, and electrical
    • NozzleFixed 3-hole straight nozzle (non-exchangeable)
    • MountingPatented design for corner installation
    • Weight10 kg
    • CasingAnti-sabotage, impact-resistant steel
    • Colour optionsWhite
    • Dimensions650 x 140 x 148 mm (L x W x H)
    • Other features100% silent in standby, works without backup battery, extra white/dry fog with extended dissipation time
