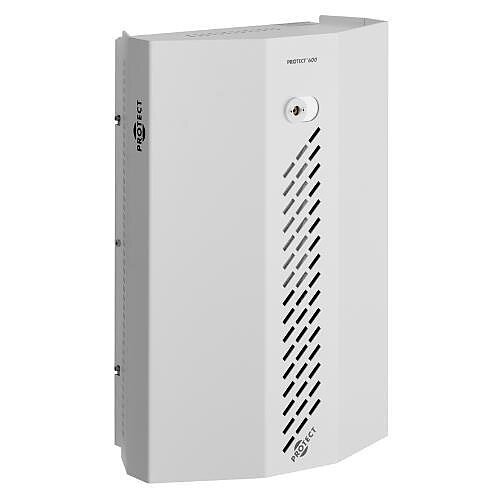

  •   Smoke cannon PROTECT 600i 90010618 (White)

    Smoke cannon PROTECT 600i 90010618 (White)

    Inquire about this item
    Price 1941.96 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    • General
    • Fog Performance30 sec: 600 m³, 60 sec: 700 m³, 60 sec + 9 min pulse: 1700 m³
    • Fog Settings3 time settings from 290–700 m³
    • Turbo FunctionYes – 600 m³ in 30 seconds
    • Pulse FunctionUp to 9 min; can shoot multiple times
    • Fluid Container1.1 L reusable container included
    • Discharges per ContainerEnough for 7 discharges
    • Fluid TypeXTRA+ fog fluid (extra white and dry, extended dissipation time)
    • Fluid MeasurementElectronic
    • Power Consumption1050 W
    • Mains Connection230V, 50 Hz
    • Standby Power (after heating)60 W (average)
    • Standby Power (no heating)5–10 W
    • Heating Time (cold start)15 min
    • Re-heating Time (after fogging)0–5 min
    • Operating Temperature5°C to 80°C
    • Input Signals5 signals
    • Output Signals3 signals
    • Settings ConfigurationOn/off dipswitches for fog time, signal, and heating
    • Battery Backup2 × 12V, 1.2 Ah (electronics and pump)
    • Power Backup DurationUp to 1.5 hours
    • Battery TestingBuilt-in automatic
    • IndicatorsOptical, audible, electrical; status indicators on PCB and external
    • NozzlesStraight nozzle included; supports 4 angled nozzle types (30°, straight, 1/3 hole options)
    • CasingAnti-sabotage, impact-resistant steel
    • Colour OptionsWhite and black
    • CompatibilityCompatible with IPCard™, MultiCard™, IntelliBox™, and IntelliSuite™ for data logging
    • CertificationsTested and approved to IEC 62642-8 (global fog cannon standard)
    • DimensionsL: 475 mm × W: 332 mm × H: 154 mm
    • Installation Weight12.6 kg
