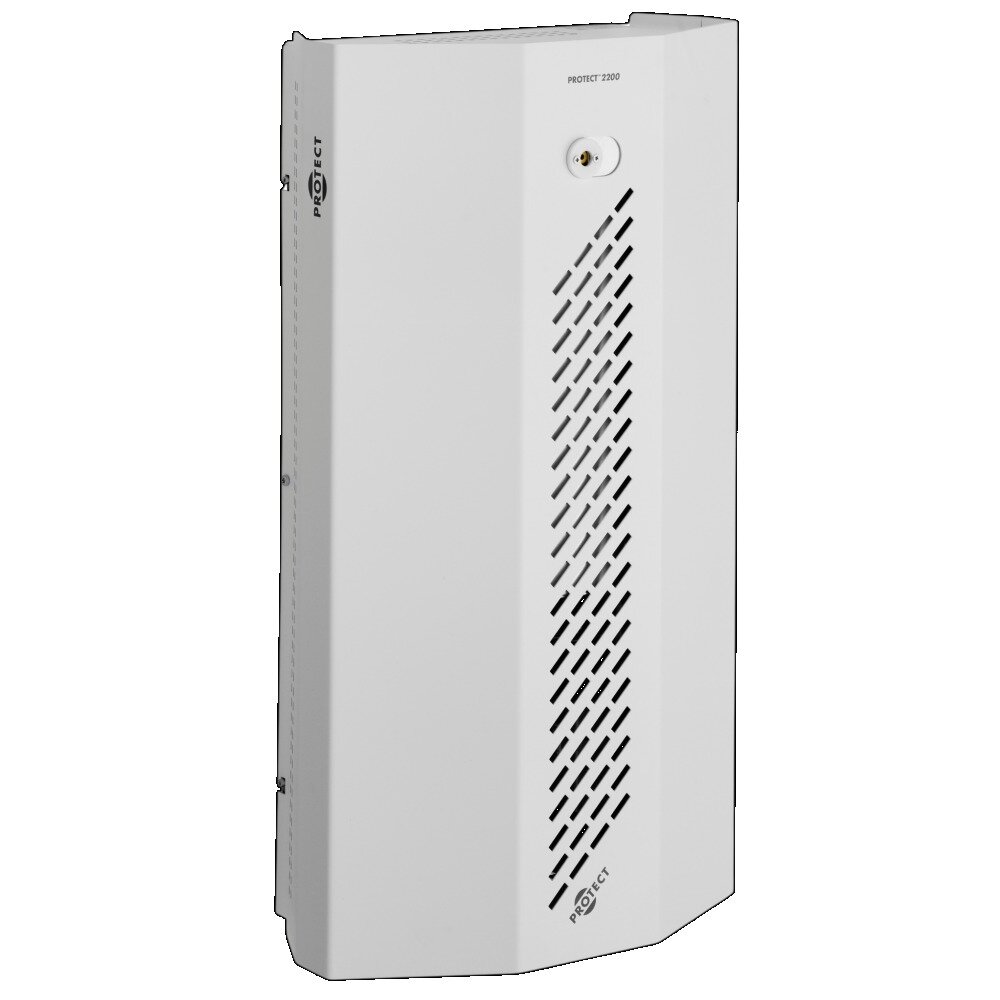

  •   Smoke cannon PROTECT 2200i C 90012218 (White)

    Smoke cannon PROTECT 2200i C 90012218 (White)

    Inquire about this item
    Price 3518.99 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    • General
    • Fog Performance60 sec + 10 min pulse: 3700 m³; Full speed 60 sec: 2700 m³
    • Fog Settings3 time settings from 900–2875 m³
    • Pulse FunctionUp to 10 min; can shoot multiple times
    • Fluid Container3 L reusable container included
    • Discharges per ContainerEnough for 5 discharges
    • Fluid TypeXTRA+ fog fluid (extra white and dry, extended dissipation time)
    • Fluid MeasurementElectronic
    • Power Consumption1680 W
    • Mains Connection230V, 50 Hz
    • Standby Power (after heating)80 W (average)
    • Standby Power (no heating)5–10 W
    • Heating Time (cold start)30 min
    • Re-heating Time (after fogging)0–14 min
    • Operating Temperature5°C to 80°C
    • Input Signals5 signals
    • Output Signals3 signals
    • Settings ConfigurationOn/off dipswitches for fog time, signal, and heating
    • Battery Backup2 × 12V, 1.2 Ah (electronics and pump)
    • Power Backup DurationUp to 2.5 hours
    • Battery TestingBuilt-in automatic
    • IndicatorsOptical, audible, electrical; status indicators on PCB and external
    • NozzlesStraight nozzle included; compatible with 4 angled nozzle types (30°, straight, 1/3 hole options)
    • CasingAnti-sabotage, impact-resistant steel
    • Colour OptionsWhite and black
    • CompatibilityCompatible with IPCard™, MultiCard™, IntelliBox™, and any alarm system
    • Data LoggingPossible with IntelliSuite™
    • CertificationsNF&A2P 2 shields (Certificate No. 9024000003A0); EN 50131-8:2019 & RTC 50131-8
    • Security GradeGrade 2
    • Environmental ClassClass II
    • IP RatingIP20
    • Mechanical Shock ProtectionIK08
    • DimensionsL: 633 mm × W: 352 mm × H: 172 mm
    • Installation Weight24.8 kg
