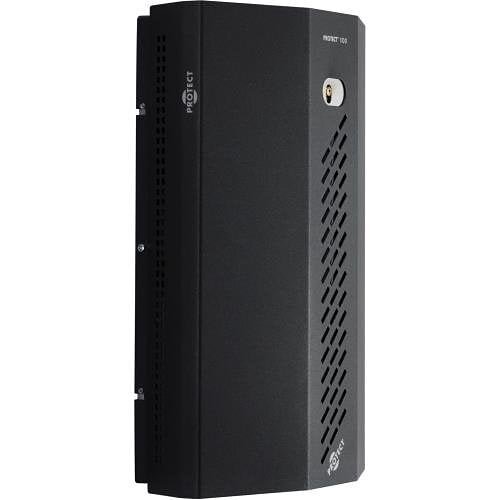

  •   Smoke cannon PROTECT 1100i 90011119REVERSE (Black)

    Smoke cannon PROTECT 1100i 90011119REVERSE (Black)

    Inquire about this item
    Price 3302.26 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    • General
    • Fog performance60 sec. + 4 min. pulse: 1700 m³
    • Fog volume settings3 time settings from 500–1300 m³
    • Pulse functionOptional pulse function (can shoot several times)
    • Fog fluid container1.1 L reusable container included
    • Discharges per containerEnough fluid for 4 discharges
    • Fluid typeXTRA+ fog fluid (extra white and dry with extended dissipation time)
    • Fluid measurementElectronic fluid measurement
    • Power consumption1350 W
    • Mains connection230V, 50 Hz
    • Standby power (after heating)70 W (average)
    • Standby power (no heating)5–10 W
    • Heating time (cold start)25 min
    • Re-heating time (after fogging)0–8 min
    • Operating temperature range5°C to 80°C
    • Input signals5 signals
    • Output signals3 signals
    • Settings configurationOn/off dipswitches for fog time, signals, and heating
    • Power backup2 × 12V, 1.2 Ah (electronics and pump)
    • Power backup durationUp to 1.5 hours after power failure
    • Battery testingBuilt-in automatic daily test
    • IndicatorsOptical, audible, electrical indicators; status indicator on PCB and external
    • NozzlesStraight nozzle included, supports 4 angled nozzle types (30°, straight, 1/3 hole options)
    • Casing materialImpact-resistant steel (anti-sabotage)
    • Colours availableWhite and black
    • CompatibilityCompatible with IPCard™, MultiCard™, IntelliBox™
    • Data loggingData log possible via IntelliSuite™
    • Alarm integrationCompatible with all alarm systems
    • DimensionsL: 475 mm, W: 332 mm, H: 174 mm
    • WeightInstallation weight: 16 kg
    • CertificationsTested and approved to IEC 62642-8 (global fog cannon standard)
