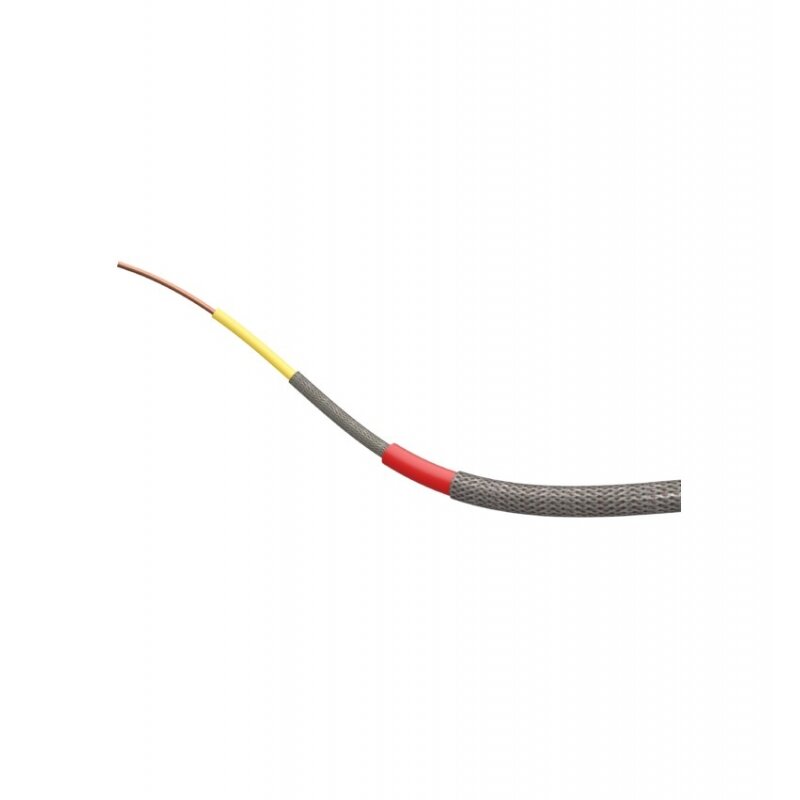

Signaline HD-S

-

Signaline HD

Signaline-HD-R

Signaline-HD-S

Outer cover

Red colour PVC

Red colour PVC +
Chemical resistant
Black nylon coating

Red colour PVC +
Stainless steel braid

Minimum Bend Radius

5mm

18mm

20mm

Weight

1.6Kg /100 metres.

2.2Kg /100 metres.

3.0 Kg /100 metres.

Co axial Construction:

Inner Core - Copper coated steel
Insulation - Heat sensitive polymer
Braid - Tinned copper wire
Standard Outer sheath - Red P.V.C.

Tensile Strength:

Greater than 200N

Supports & Fixings:

See Installation Guidelines for full details of available fixings

Conductor Resistance:

2 ohms Screen and core per 100 metres

Diameter:

2.8mm nominal.

Operating Temperature:

-40°C to +70°C Ambient

Alarm Temperature range:

Typical - 1 metre alarm range 70 to 125°C
- 10 metre alarm range 45 to 100°C

Controller:

Refer to Signaline HD controller data sheet for details

Approvals:

VdS approved Certificate Nos: G202077 & G203076
