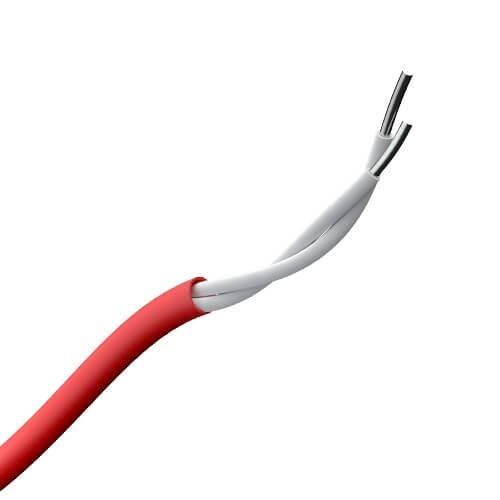

SIGNALINE cable FT-78-EN
-
Model SIGNALINE FT-78-EN Alarm temperature 78°C (155°F) Max ambient temp. 45°C (113°F) Min. ambient temp -40°C (-40°F) EN54-28 performance T078-V10-A045 Environmental group II Conductor resistance 1.25Ω/M per core Max voltage 74Vdc or 49Vac Humidity 0% to 98% RH Insulation 1kV tested protective outer coating Tensile strength 1700 N/mm² Minimum bend radius 100mm Overall diameter 5.72mm Weight 16kg/500M Outer sheath UV & chemical resistant sheath (red) Features Low-Smoke Zero Halogen (LSZH), UV Stable, Oil Resistant, Flame Retardant Colour Red Approvals EN54-28:2016, UL File no.: S24913, CE, ROHS
