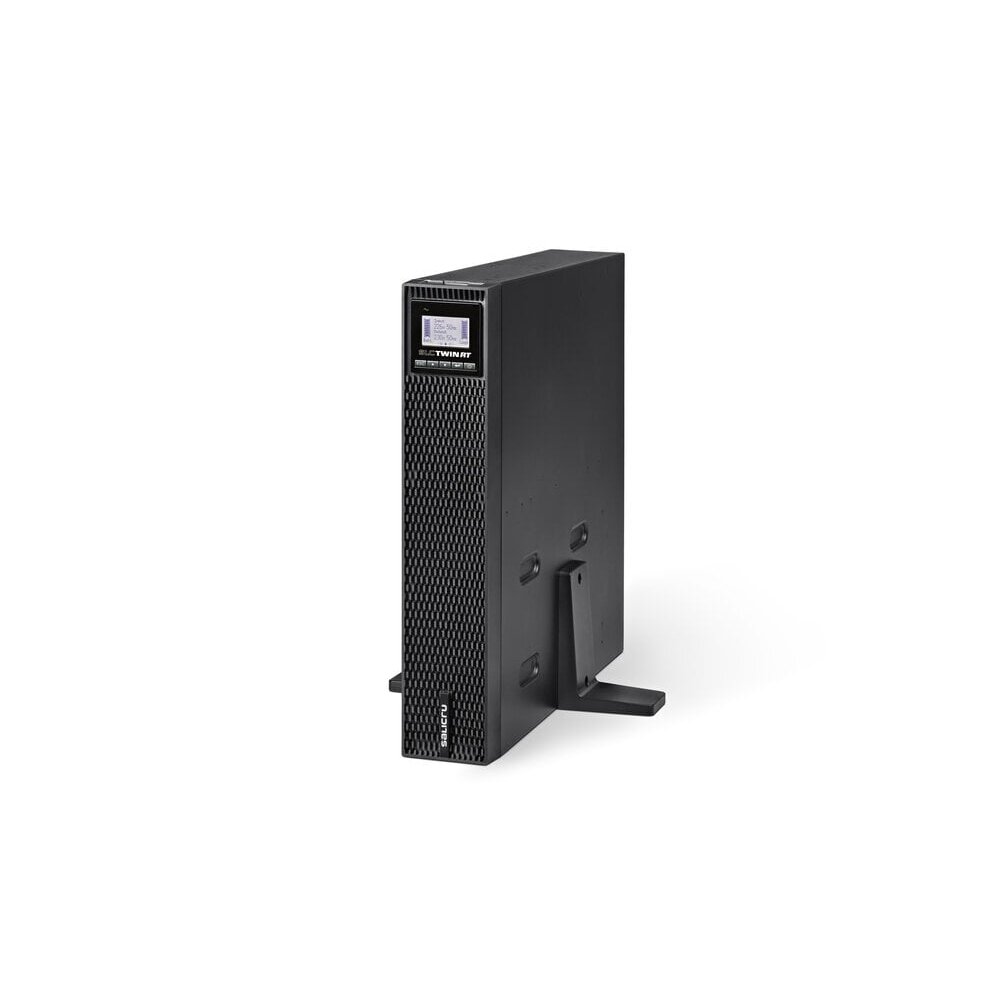

Salicru UPS SLC-3000-TWIN RT3 (3000VA/3000W, Rack/Tower, LCD, Online, 8×C13, C19, SNMP)
-
Salicru UPS SLC-3000-TWIN RT3 (3000VA/3000W, Rack/Tower, LCD, Online, 8×C13, C19, SNMP)
-
- General
- Model Code6B4AA000004
- Power (VA/W)3000 / 3000
- Output Sockets8 × IEC C13 + 1 × IEC C19
- Dimensions (D × W × H mm)600 × 438 × 86
- Weight (Kg)25.5
- TechnologyOn-line double-conversion
- FormatConvertible tower/rack with rotating display
- Input Voltage200/208/220/230/240 V
- Voltage Range110 ÷ 300 V
- Rated Frequency50 / 60 Hz (auto-detection)
- Frequency Range50 ±5 Hz / 60 ±6 Hz
- Total Harmonic Distortion (THDi)<5 %
- Power Factor≥0.99
- Output Power Factor1
- Output Voltage200/208/220/230/240 V
- Voltage Accuracy±1%
- Total Harmonic Distortion (THDv)<1 % linear load / <5 % non-linear load
- Synchronised Frequency50 ±5 Hz / 60 ±6 Hz
- On-line Performance≥89 ÷ 93 %
- Eco-mode Performance≥96 ÷ 97 %
- Admissible Overloads (Battery Mode)105 ÷ 125 % for 2 min / 125 ÷150 % for 10 s / >150 % for 500 ms
- Admissible Overloads (Bypass Mode)105 ÷ 125 % for 10 min / 125 ÷150 % for 5 min / >150 % for 500 ms
- Admissible Overloads (In-line Mode)105 ÷ 125 % for 5 min / 125 ÷150 % for 30 s / >150 % for 500 ms
- Programmable SocketsYes, for critical/non-critical loads (4/4) + 1 IEC C19 (non-programmable)
- Battery TypePb-Ca sealed, AGM, maintenance-free
- Charge TypeSmart charge with 3 modes
- Recharge Time3 hours to 90%
- Maximum No. of EBMs4
- Charging Current1.5 A (8 A for B1 devices)
- Temperature Voltage CompensationYes
- Communication PortsUSB-HID / RS-232 / RJ-45 / HDMI for Wi-Fi dongle
- Intelligent SlotFor SNMP / AS400 / MODBUS
- Monitoring SoftwareCompatible with Windows, Linux, Mac / App for iOS & Android / Web portal
- Cold Start (Battery Start-up)Yes
- Emergency Stop (EPO)Yes
- Operating ModesEco-mode, Frequency converter (CVCF)
- Operating Temperature0º C ÷ +50º C
- Relative HumidityUp to 95%, non-condensing
- Maximum Operating Altitude3,000 MASL
- Acoustic Noise at 1m<45 dB ÷ <50 dB at full load / <36 dB ÷ <46 dB at 70% load
- StandardsSafety: EN IEC 62040-1, EMC: EN IEC 62040-2(C2), Operation: VFI-SS-31 (EN 62040-3)
- CertificationsISO 9001, ISO 14001, ISO 45001
