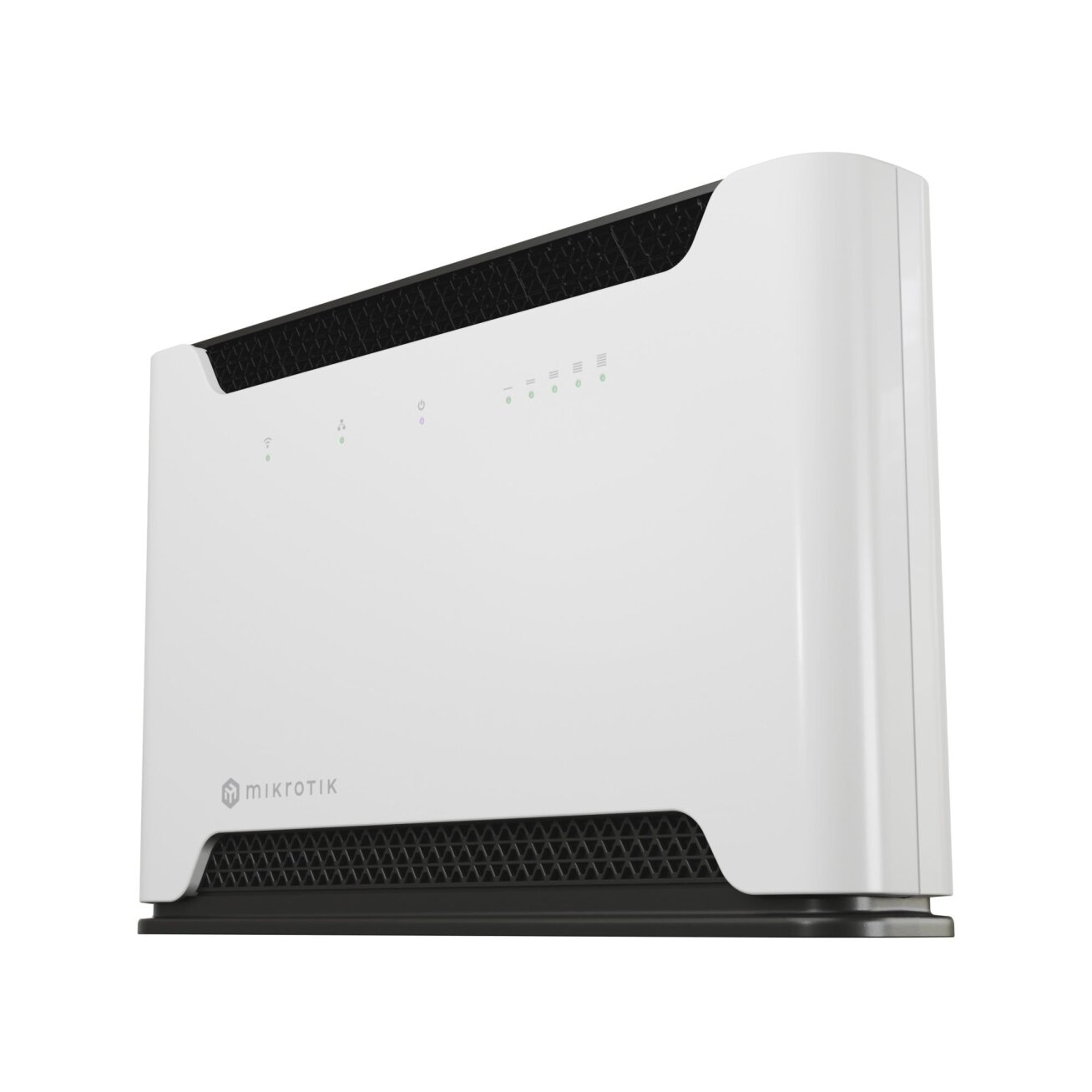

Router MikroTik Chateau LTE12 D53G-5HacD2HnD-TC EG120K (Wi-Fi 2.4/5GHz, 5xRJ45)
-
- Specifications
- Product codeD53G-5HacD2HnD-TC&EG120K-EA
- Suggested price$179.00
- ArchitectureARM 32bit
- CPUIPQ-4019
- CPU core count4
- CPU nominal frequency448-896 (auto) MHz
- CPU Threads count4
- Switch chip modelIPQ-4019
- RouterOS license4
- Operating SystemRouterOS v7
- Size of RAM256 MB
- Storage size32 MB
- Storage typeFLASH
- MTBFApproximately 200'000 hours at 25C
- Tested ambient temperature-20°C to 70°C
- Powering
- Number of DC inputs1 (DC jack)
- DC jack input Voltage12-28 V
- Max power consumption24 W
- Max power consumption without attachments18 W
- Cooling typePassive
- Mobile
- 3G CategoryR8 (42.2Mbps Downlink, 5.76Mbps Uplink)
- 3G bands3 (1800MHz) 1 (2100MHz) 5 (850MHz) 8 (900MHz)
- LTE Category12 (600Mbps Downlink, 150Mbps Uplink)
- MIMO DL4x4
- MIMO UL1x1
- LTE FDD bands1 (2100MHz) 3 (1800MHz) 5 (850MHz) 7 (2600MHz) 8 (900 MHz) 20 (800MHz) 28 (700MHz) 32 (1500 MHz)
- LTE TDD bands40 (2300MHz) 41 (2500MHz) 38 (2600MHz)
- TAC86642205
- Wireless specifications
- Wireless 2.4 GHz Max data rate300 Mbit/s
- Wireless 2.4 GHz Number of chains2
- Wireless 2.4 GHz standards802.11b/g/n
- Antenna gain dBi for 2.4 GHz2
- Wireless 2.4 GHz chip modelIPQ-4019
- Wireless 2.4 GHz generationWi-Fi 4
- Wireless 5 GHz Max data rate867 Mbit/s
- Wireless 5 GHz Number of chains2
- Wireless 5 GHz standards802.11a/n/ac
- Antenna gain dBi for 5 GHz4
- Wireless 5 GHz chip modelIPQ-4019
- Wireless 5 GHz generationWi-Fi 5
- Ethernet
- 10/100/1000 Ethernet ports5
- Peripherals
- Number of SIM slots1 Modem (Micro SIM)
- Number of USB ports1
- USB Power ResetYes
- USB slot typeUSB type A
- Max USB current (A)1
- Other
- Mode buttonYes
- Certification & Approvals
- CertificationCE, EAC, ROHS
- IP20
