  •   Router Cudy LT400 (Outdoor)

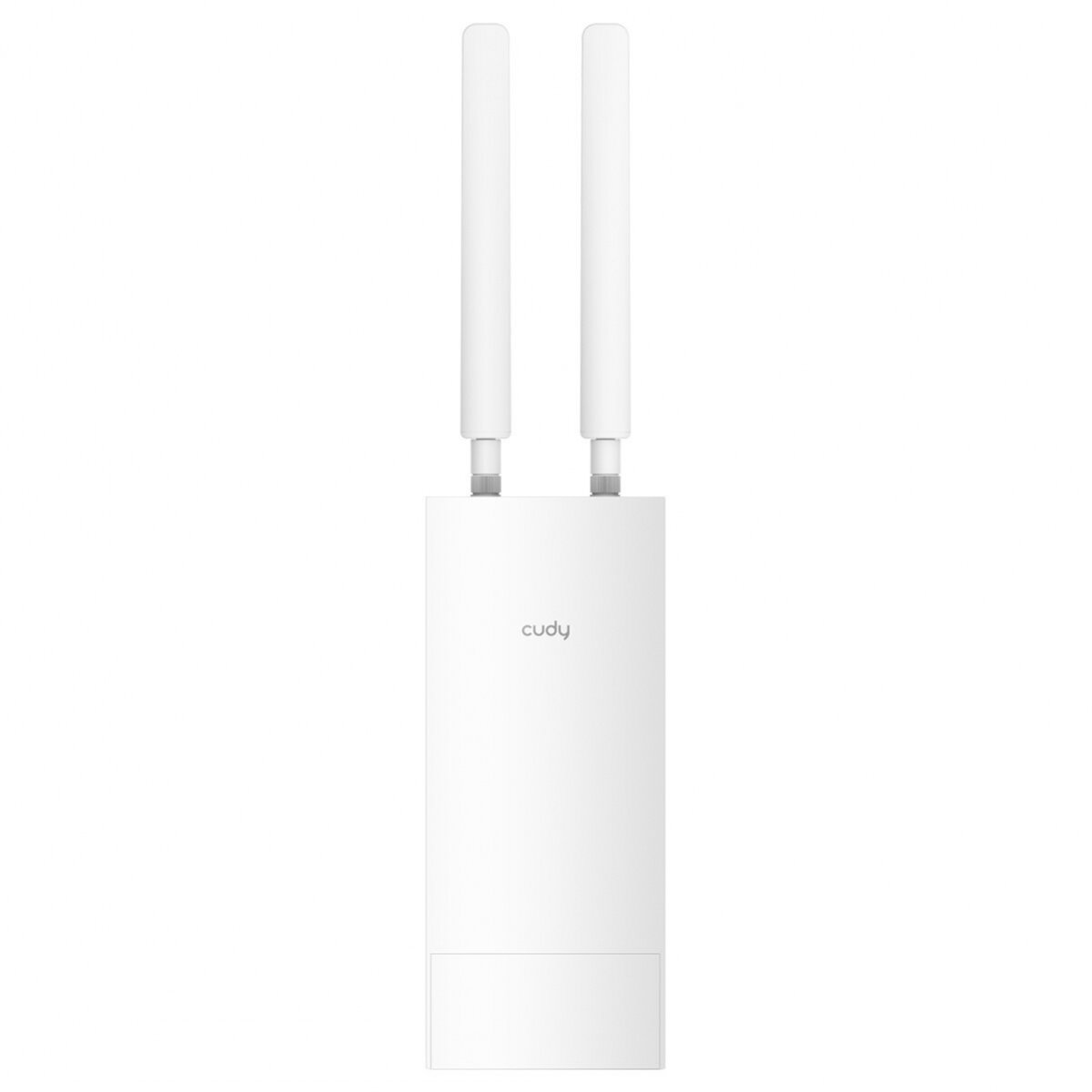

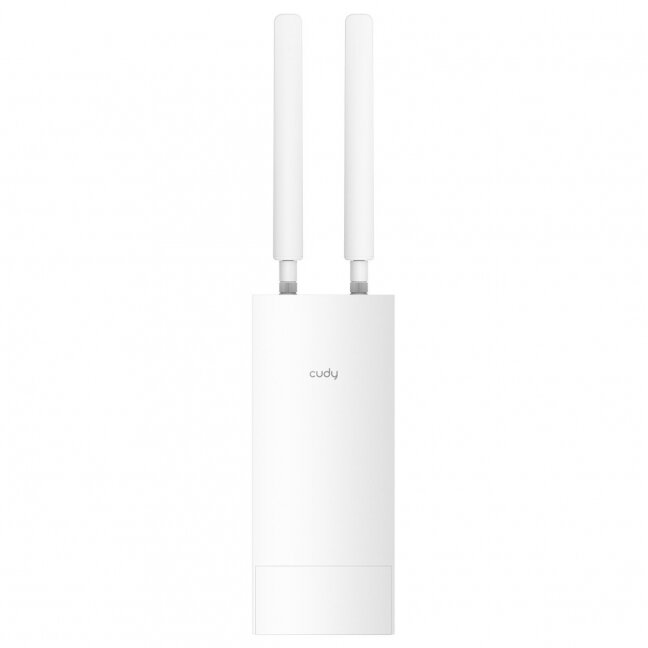

    Router Cudy LT400 (Outdoor)

    Inquire about this item
    Price 100.68 €
    Want another price? Suggest yours!
    In stock.

    In stock: 20 pcs
    Manufacturer
    Cudy

    • General
    • Model VersionLT400 Outdoor 1.0
    • ChipsetMT7628
    • CPU Details580 MHz Single-Core, MIPS24KEC
    • Flash/ROM8 MB (64 Mbit) NOR
    • DDR/RAM64 MB (512 Mbit) DDR2
    • Cellular Standards4G Cat. 4
    • Cellular Antennas2× Fixed
    • Detachable Cellular Antennas ConnectorSMA Female
    • SIM Options1× Nano SIM Slot
    • Available VersionsEU, US
    • EU Version Suitable RegionEurope, Middle East, Africa
    • EU Version Max DL Speed150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD)
    • EU Version Max UL Speed50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD)
    • EU Version AdvancedDL 2×2 MIMO
    • EU Version Cellular BandsLTE-FDD: B1/3/5/7/8/20/28; LTE-TDD: B38/40/41; WCDMA: B1/5/8
    • US Version Suitable RegionUnited States, Canada
    • US Version Max DL Speed150 Mbps
    • US Version Max UL Speed50 Mbps
    • US Version AdvancedDL 2×2 MIMO
    • US Version Cellular BandsLTE-FDD: B2/4/5/12/13/14/66/71; WCDMA: B2/4/5
    • 2.4 GHz Wi-Fi Speed300 Mbps
    • 2.4 GHz Wi-Fi Streams2T2R (2×2 MIMO)
    • Wi-Fi Antennas2× Internal
    • BeamformingTrue
    • FEM or PA/LNA2.4 GHz: 2× Internal
    • Range PerformanceMax: 170 m (558 ft); Park: 150 m (492 ft); Street: 30 m (98 ft); Woods: 30 m (98 ft)
    • Wall PerformanceNA
    • Physical ButtonsReset Button
    • 10/100 Mbps RJ45 Ports1
    • Ethernet NotesAccepts PoE powering
    • LEDSystem, Internet, LAN, Wi-Fi, Cellular Signal Strength
    • Power InputPoE via Ethernet Port
    • Power MethodsPassive PoE
    • Passive PoE24V
    • Power AdapterInput: 100 ~ 240 V, 50/60 Hz AC; Output: 24V 0.5A DC
    • Max Power Consumption8W
    • Idle Power Consumption4W
    • EMS ProtectionESD: Contact: 4kV; Air: 8kV
    • Surge ProtectionPower: DM 2kV, CM 4kV; RJ45: CM 4kV
    • Operating Temperature-20 ℃ ~ 60 ℃ (-4 ℉ ~ 140 ℉)
    • Extended Operating Temperature (Industrial SIM)-40 ℃ ~ 65 ℃ (-40 ℉ ~ 149 ℉)
    • Storage Temperature-40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
    • Operating Humidity0% ~ 100% non-condensing
    • Storage Humidity5% ~ 90% non-condensing
    • CertificationsFCC, CE
    • Device Body Dimensions240×100×53.7 mm (9.45×3.94×2.11 inches)
    • Antenna Dimensions197.5×21.6×15.5 mm (7.78×0.85×0.61 inches)
    • Product Weight420 g (14.82 oz.)
    • InstallationWall-mount, Pole-mount
    • Package ContentLT400 Outdoor, Detachable Antennas, PoE Adapter, Power Cord, Mounting Kit, Ethernet Cable, Installation Guide
