  •   Router 2-port Ubiquiti UniFi UX7-EU

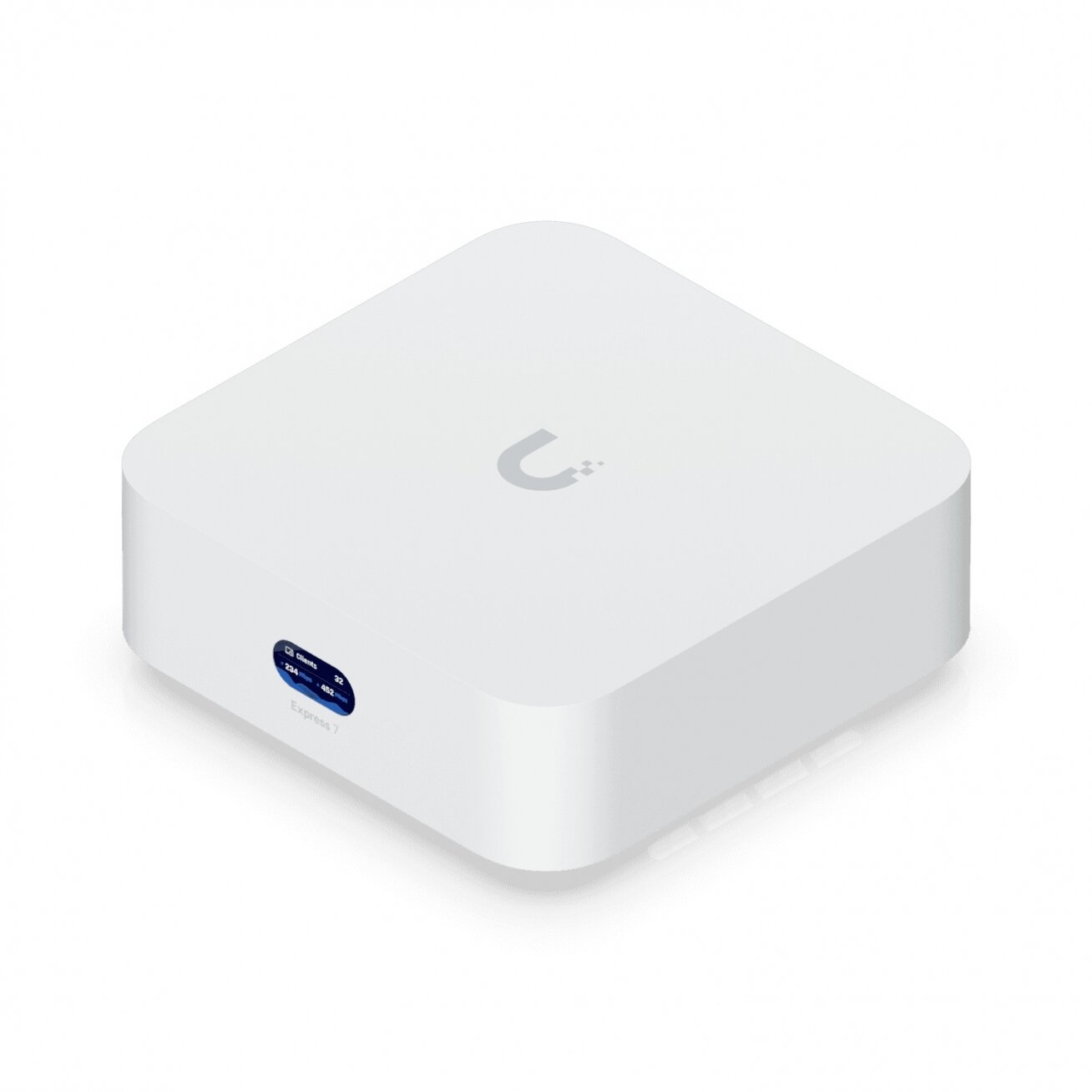

    Router 2-port Ubiquiti UniFi UX7-EU

    Inquire about this item
    Price 250.35 €
    Want another price? Suggest yours!
    In stock: 0 pcs

    • General
    • Dimensions117 x 117 x 42.5 mm (4.61 x 4.61 x 1.67'')
    • UniFi Application Suite NetworkYes
    • Managed UniFi Devices30
    • Simultaneous Users Connected300
    • Default WAN Ports(1) 10 GbE RJ45
    • LAN Ports(1) 2.5 GbE RJ45
    • IDS/IPS Throughput2.3 Gbps
    • Form FactorCompact desktop
    • Coverage Area160 m² (1,750 ft²)
    • SecurityYes (Stateful Firewall, Application-Aware Layer 7 Firewall, DPI & Traffic Identification, Zone-Based Filtering, Content Filtering, IDS/IPS, Ad Blocking, 20,000+ Signatures with CyberSecure, VLAN/Subnet Segmentation)
    • VPN & SD-WANLicense-Free SD-WAN, Site-to-Site VPN (Site Magic), IPsec, OpenVPN, Identity Endpoint VPN, Teleport VPN, WireGuard, L2TP
    • VPN ClientOpenVPN, WireGuard
    • NetworkingOSPF, Advanced QoS, mDNS, SNAT/DNAT/Masquerade/NAT Pooling/1-to-1 NAT, Integrated RADIUS Server, RadSec, LTE Backup, Outage Reporting, Policy-based Routing, Custom DHCP, IPv6, IGMP Proxy
    • Integrated WiFi802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
    • WiFi Throughput6 GHz: 5.7 Gbps, 5 GHz: 4.3 Gbps, 2.4 GHz: 688 Mbps
    • MIMO6 GHz: 2x2 (DL/UL MU-MIMO), 5 GHz: 2x2 (DL/UL MU-MIMO), 2.4 GHz: 2x2 (DL/UL MU-MIMO)
    • Antenna Gain6 GHz: 6 dBi, 5 GHz: 7 dBi, 2.4 GHz: 4 dBi
    • Max. TX Power6 GHz: 24 dBm, 5 GHz: 26 dBm, 2.4 GHz: 23 dBm
    • Wireless SecurityWPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
    • Max. BSSIDs4 per Radio (Gateway Mode), 4 per Radio (AP Mode)
    • Supported Data Rates802.11a: 6–54 Mbps, 802.11b: 1–11 Mbps, 802.11g: 6–54 Mbps, 802.11n: 6.5–300 Mbps, 802.11ac: 6.5 Mbps–1.7 Gbps, 802.11ax: 7.3 Mbps–2.4 Gbps, 802.11be: 7.3 Mbps–5.7 Gbps
    • Max. Power Consumption22W
    • Power MethodUSB Type C (5V DC/5A)
    • Power SupplyUSB Type C (5V DC/5A) (Adapter included)
    • Supported Voltage Range100—240V AC
    • ProcessorQuad-core ARM® Cortex®-A53 at 1.5 GHz
    • System Memory3 GB
    • Weight422 g (14.9 oz)
    • Enclosure MaterialPolycarbonate
    • LCM Display0.96" status display
    • ManagementEthernet, Bluetooth
    • LEDsEthernet: Yes
    • Button(1) Factory-reset
    • ESD/EMP ProtectionAir: ± 8kV, contact: ± 4kV
    • Ambient Operating Temperature-10 to 40° C (14 to 104° F)
    • Ambient Operating Humidity5 to 95% noncondensing
    • CertificationsCE, FCC, IC
    • NDAA CompliantYes
    • Software VLAN802.1Q
    • Guest Traffic IsolationYes
    • Application RequirementsUniFi Network Version 9.0.108 and later
