  •   ROGER PR611-G

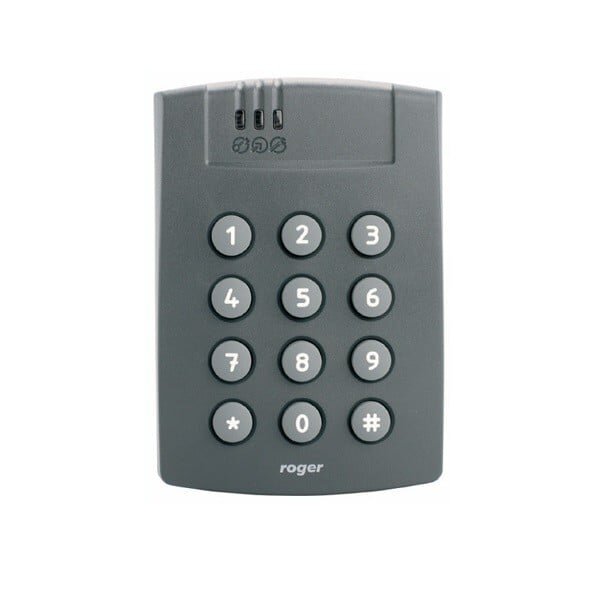

    ROGER PR611-G

    Inquire about this item
    Price 148.33 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Roger

  • General featuresPR311SE, PR611, PR621PR411DR
    12VDC supply••
    24VDC, 18VAC supply-•
    Built-in EM 125 kHz proximity reader•-
    Buzzer•-
    Keypad•
    except for PR621    		-
    Mountable directly on a DIN rail 35mm-•
    Outdoor operation•-
    Programmable inputs/outputs3/38/4
    First relay output1.5A/30V1.5A/30V
    Second relay output-5A
    30V or 230VAC
    Tamper•-
    Programmed manually••
    reader with keypad required
    Programmed from PC••
    CE mark••
    Communication
    RS485••
    RACS Clock&Data••
    Wiegand 26..66bit-•
    Magstripe--
    Operation with biometric readers-•
    Operation with long range readers-•
    Functionality
    Number of users10001000
    Built-in event buffer--
    Event buffer in network equipped with CPR32-SE250000250000
    Real time clock with battery backup•
    CPR32-SE required    		•
    CPR32-SE required
    User groups••
    Access zones••
    Schedules•
    CPR32-SE required    		•
    CPR32-SE required
    Access control in elevators--
    Local APB••
    Global APB (CPR32-SE required)••
    Interlocking••
    Advanced access options: two users mode, conditional access, high security mode--
    Hotel options••
    Operation with turnstiles•
    XM-2 recommended    		•
    Operation with barriers••
    Random user inspection--
    Integration
    Integration with T&A system
    * Basic••
    * Advanced (RCP Master)limitedlimited
    Integration with intruder alarm system••
    Integration with CCTV system (CCTV-DVR)••
