  •   Residual current circuit breaker Hager CD425J (type A, 25A, 4P, 30mA, 230V)

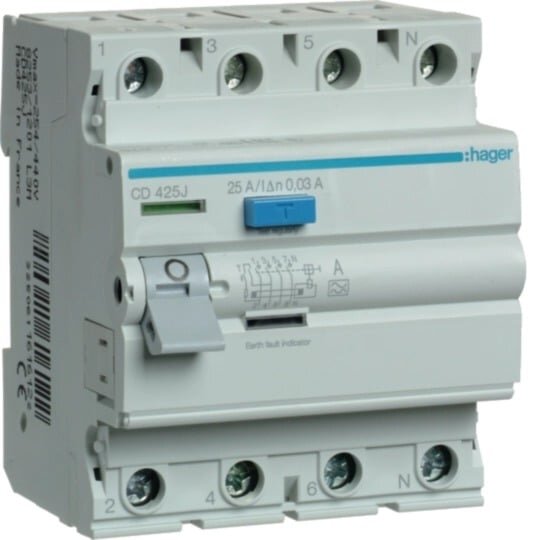

    Residual current circuit breaker Hager CD425J (type A, 25A, 4P, 30mA, 230V)

    Inquire about this item
    Price 58.14 €
    Want another price? Suggest yours!
    In stock.

    In stock: 5 pcs
    • General
    • Type of pole3P+N
    • Rated current25 A
    • Rated residual operating current Idn30 mA
    • Breaking and opening capacity Idm1.50 kA
    • Rated conditional short-circuit current Inc (EN61008-1)6 kA
    • Rated current at -25°C25 A
    • Rated current at -20°C25 A
    • Rated current at -15°C25 A
    • Rated current at -10°C25 A
    • Rated current at -5°C25 A
    • Rated current at 0°C25 A
    • Rated current at 5°C25 A
    • Rated current at 10°C25 A
    • Rated current at 15°C25 A
    • Rated current at 20°C25 A
    • Rated current at 25°C25 A
    • Rated current at 30°C25 A
    • Rated current at 35°C25 A
    • Rated current at 40°C25 A
    • Rated current at 45°C25 A
    • Rated current at 50°C25 A
    • Rated current at 55°C25 A
    • Rated current at 60°C25 A
    • Rated current at 65°C22 A
    • Rated current at 70°C18 A
    • Nominal tightening torque (top terminal)2.80 Nm
    • Nominal tightening torque (bottom terminal)2.80 Nm
    • Top connection typeScrew terminal
    • Bottom connection typeBiconnect
    • Nominal tightening torque2.80 Nm
    • Rated operational voltage Ue230–400 V
    • Voltage supply typeAC
    • Rated insulation voltage Ui500 V
    • Rated impulse withstand voltage Uimp4,000 V
    • Maximum operating voltage440 V
    • Frequency50 Hz
    • Number of modules4
    • DIN rail mountingYes
    • Ingress protection classIP20
    • Cross-section (solid conductors)1–25 mm²
    • Cross-section (flexible conductors)1–16 mm²
    • Flexible conductor cross-section (max)16 mm²
    • Rigid conductor cross-section (max)25 mm²
    • Total power loss at IN4.50 W
    • Maximum altitude2,000 m
    • Electrical endurance2,000 cycles
    • Mechanical operations4,000 cycles
    • Connection typeScrew terminal
    • Top terminal alignmentAligned terminal
    • Bottom terminal alignmentAligned terminal
    • Height83 mm
    • Width70 mm
    • Depth70 mm
