  •   Repeater CUDY RE1200

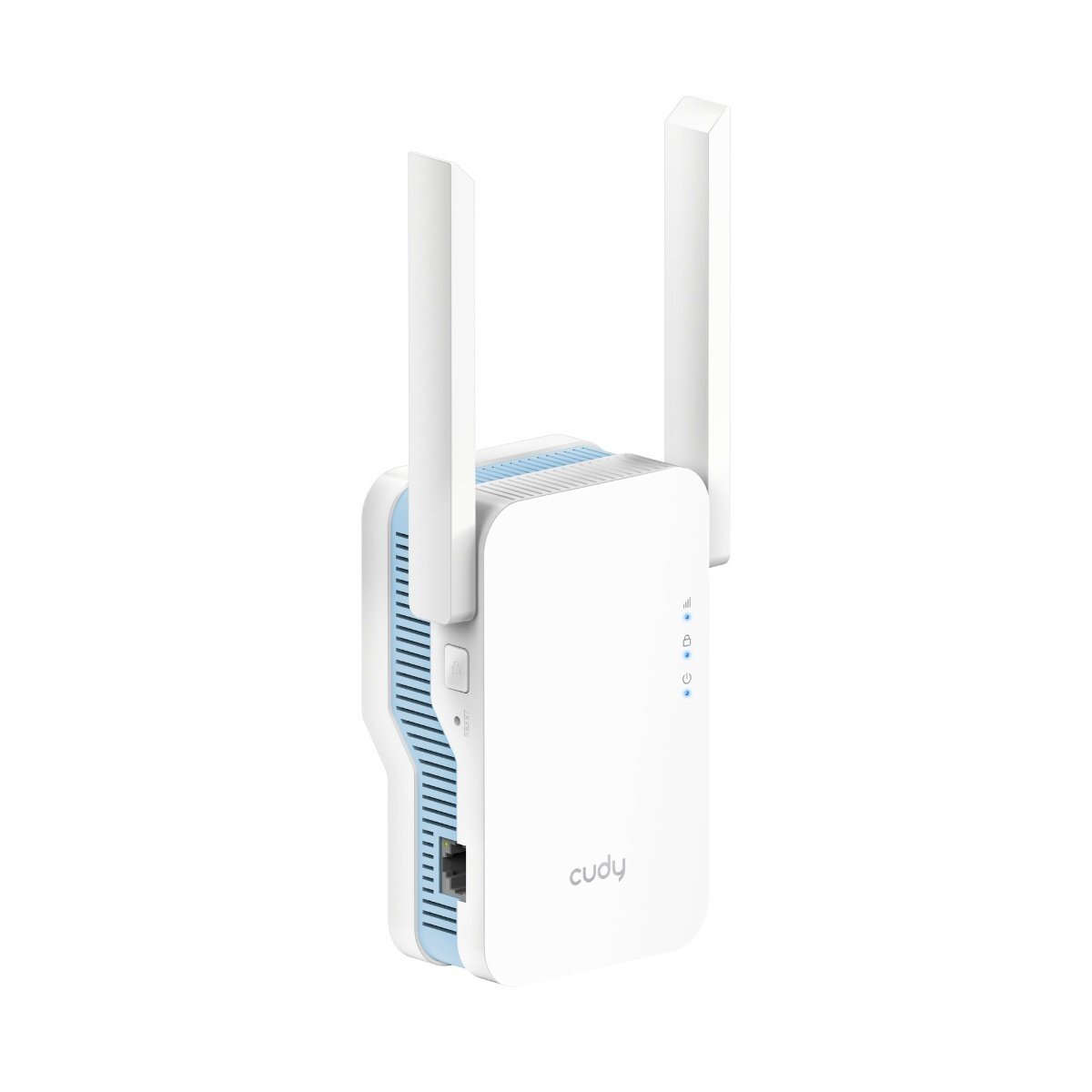

    Repeater CUDY RE1200

    Inquire about this item
    Price 23.95 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Cudy

    • General
    • Model VersionRE1200 1.0
    • CPU ChipsetMT7628DAN+MT7613B
    • CPU Details580 MHz Single-Core, MIPS24KEC
    • Flash/ROM8 MB (64 Mbit) NOR
    • DDR/RAM64 MB (512 Mbit) DDR2
    • 5 GHz Wi-Fi Speed867 Mbps
    • 2.4 GHz Wi-Fi Speed300 Mbps
    • 5 GHz Wi-Fi Streams2T2R (2×2 MIMO)
    • 2.4 GHz Wi-Fi Streams2T2R (2×2 MIMO)
    • Wi-Fi Antennas2× Fixed
    • 2.4 GHz Antenna Gain Max3.49 dBi
    • 5 GHz Antenna Gain Max6.24 dBi
    • FEM or PA/LNA5 GHz: 2× Internal, 2.4 GHz: 2× Internal
    • Range PerformanceMax: 150 m (492 ft) (Indoor WiFi range varies depending on layout and wall materials)
    • Wall PerformanceTwo wooden walls <10 cm (4''), One concrete wall <20 cm (7'')
    • 10/100 Mbps RJ45 Ports1
    • LED IndicatorsSignal Strength, WPS, Power
    • Physical ButtonsWPS Button, Reset Button
    • Power InputAC Plug
    • Power Input NoteEU, US, UK plug versions available by region
    • Power MethodsAC
    • AC Power Range110V ~ 220V
    • Operating Temperature0 ℃ ~ 40 ℃ (32 ℉ ~ 104 ℉)
    • Storage Temperature-40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
    • Operating Humidity10% ~ 90% non-condensing
    • Storage Humidity5% ~ 95% non-condensing
    • CertificationsFCC, CE
    • Install in a Daisy ChainRecommended: fewer than 3 repeaters in a wireless chain
    • Installation TypePlug-In-Socket
    • Casing MaterialPlastic
    • Dimensions129.6×80×48.6 mm (5.1×3.15×1.91 inches)
    • Product WeightUK: 210 g (7.41 oz.), US/EU: 205 g (7.23 oz.)
    • Package ContentsRE1200, Installation Guide
