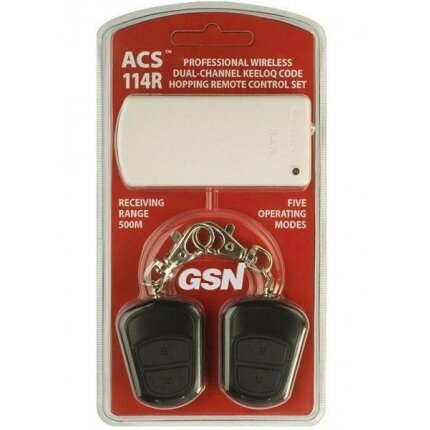

Remote control set GSN ACS-114R 2-ch

ACS-114R FEATURES

• TWO INDEPENDENT CHANNEL
• FIVE OPERATING MODES OF EACH RECEIVER CHANNEL:


1. PULSE MODE - 1SECOND

2. SWITCH ON PERIOD MODE (1 – 300 sec.)

3. SWITCHING MODE (ON/OFF)

4. HOLD MODE (CONTINUOUS)

5. PANIC BUTTON MODE (SECURITY)

Receiving range in open space - up to 500 meters

KEELOQ^_® code hopping technology

Maximum quantity of remote controls learning the receiver – 330

Programming the ON/OFF period for the desired time from 1 to 300 sec

Unauthorized access protection (in “Panic Button” mode)

Last event memory: 30min (in “Panic Button” mode)

The alarm comes on when the electric power supply is disconnected
(in “Panic Button” mode)

 KEELOQ^® CODE HOPPING TECHNOLOGY

 The multifunctional remote control sets use KEELOQ^® code hopping technology, ensuring the highest level of security by code combination programmable but read-protected. The combinations of different codes transmitted by remote controls prevent radio scaning and unauthorized access.

RECEIVING RANGE

The operating range of the hand-held remote controls depends on the mounting location of the receiver.

The various obstructions, the environmental factors, the radio-frequency and electromagnetic sources might influence the emission of radio-signal and as a result, might shorten the receiving range. For optimal radio-signal reception: mount the receiver at least 1.5 meter above the ground, as far as possible from any radio frequency and electromagnetic sources.
